3000rpm Home Appliance Lumbar Support Gear Mixer Motor Fan Motor with UL Approval/Display Cabinet
$
3.10
/set
Product Details
- Model NO.: ZG60
- Function: Control, Driving
- Casing Protection: Protection Type
- Number of Poles: 2
- Certification: ISO9001, CCC, CE, RoHS
Find Similar Products
Basic info
Model NO.
ZG60
Function
Control, Driving
Casing Protection
Protection Type
Number of Poles
2
Certification
ISO9001, CCC, CE, RoHS
Brand
OEM
Transport Package
Carton
Specification
CE, RoHS
Trademark
OEM
Origin
China (Mainland)
HS Code
8501109990
Production Capacity
50000 Piece/Pieces / Month
Product Description

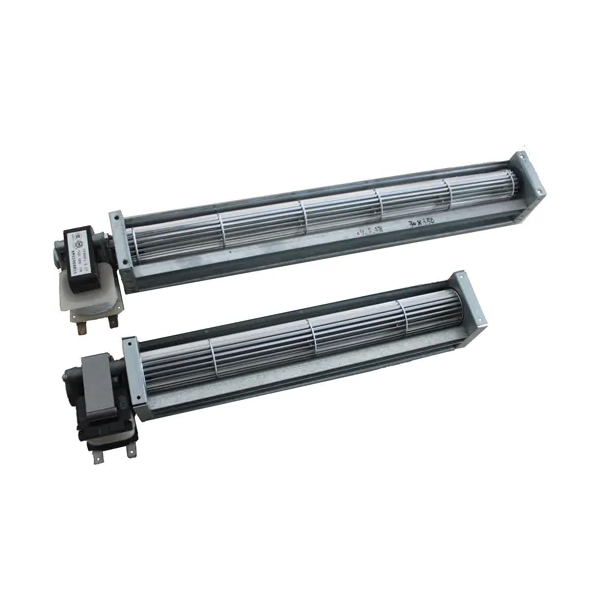

Commonly Heater Motor with Ul approval, Typical uses on commonly Heater, Air cooling Fan etc
Product characteristic:
1. Stator size is optional
2. Safe, reliable, low noise, good starting, long life
3. Strong power
Rated voltage 110~120V/220~240V-50/60Hz
Typical used:
Exhaust fan, air purifier, micro-oven, fan, induction cooker, refrigerator, pump, heater, hood oven, blwer, air conditioner, Heater machines, dehumidifiers
Thermal protector with one shot fuse or multi shot fuse
Volt(v)=110V-240v
Freq(HZ)=50/60HZ
Current(A)=0.18-0.43 based on different stator thickne
Input power on loading: From 13W to 36W based on different stator thickness
Torque: 60g. Cm to 120g. Cm based on different stator thickness
Shaft diameter(mm)=4-6mm
Shaft length(mm)=according to customer's requirement
Speed(r/min): 2600-3400 based on different stator thickness

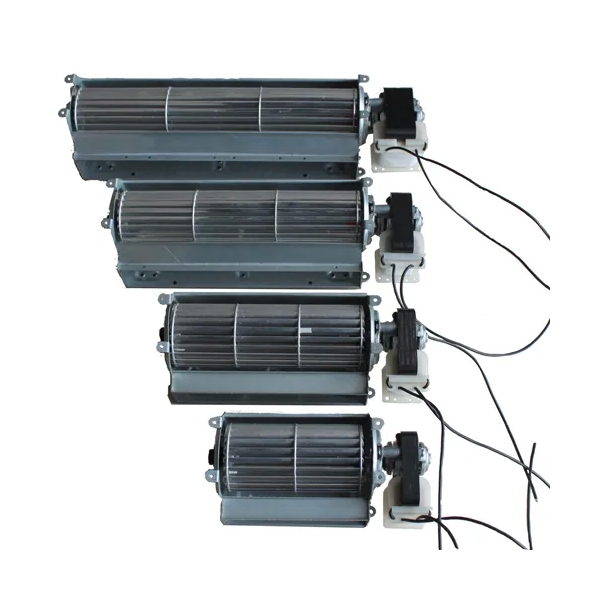

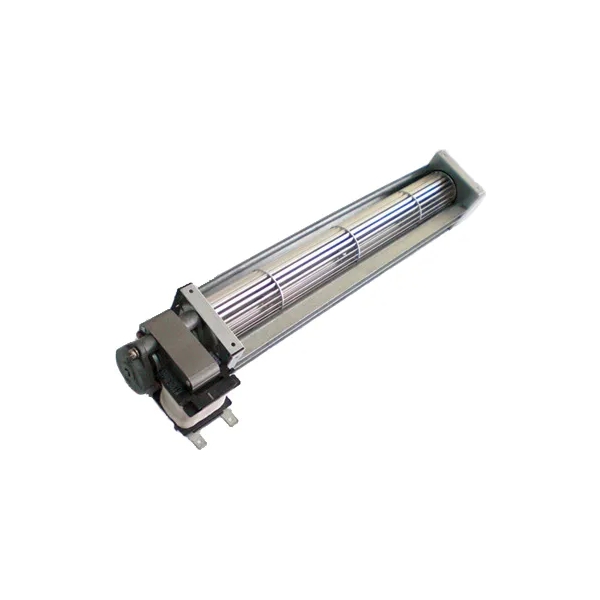

Fan Diameter: 60mm
Fan length: Optional from 120mm to 360mm
| MODEL | AOF SIZE | SHAFT DIA | VOLT | INPUT POWER | TORQUE (g.cm) |
SPEED RATED |
|
YJ6012 |
12mm |
4mm |
110-240V |
18W |
120 |
3000RPM |
|
YJ6014 |
14mm |
4.5mm |
110-240V |
25W |
150 |
3000RPM |
|
YJ6016 |
16mm |
4.5mm |
110-240V |
30W |
180 |
3000RPM |
|
YJ6020 |
20mm |
5mm |
110-240V |
35W |
260 |
3000RPM |
|
YJ6025 |
25mm |
6mm |
110-240V |
45W |
350 |
3000RPM |
|
YJ6030 |
30mm |
6mm |
110-240V |
53W |
380 |
3000RPM |
ABOUT US

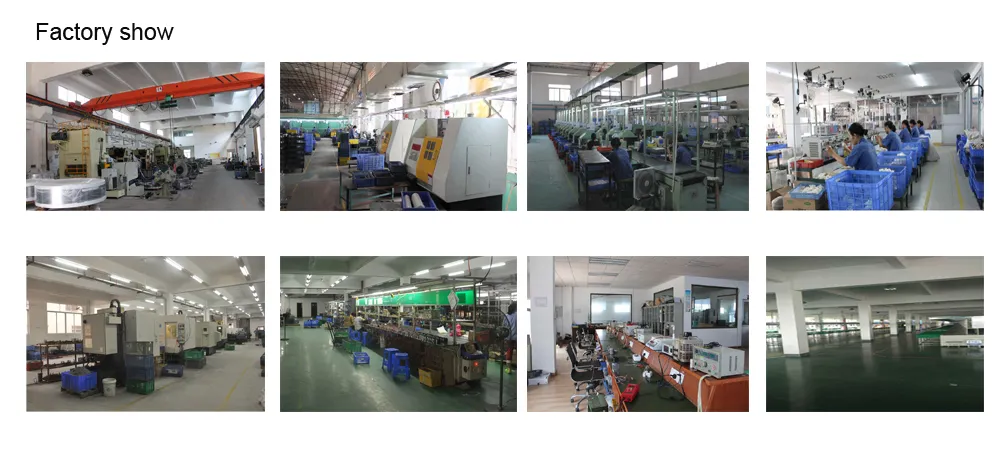

Ritscher group was established in 2006.we always focus on micro-motors for household and industrial electrical appliance.Currently, we have professional micro-motor factories separatlly located in Guangdong & Zhejiang province.It has 50,000 square meters plants and more than 500 employees, annual output is 5 million pcs and has 10 million pcs annual producing capacity.After years development,we built a great reputation in the domestic and oversea market and have the trust from our global customers.
We started our business from shaded pole motors, after 10 years development,our products is enlarged to BLDC motors ,capacitor motors ,synchronous motors,stepping motors,servo motors, and PMDC motors.Our products are widely used for making refrigerators, freezers, micro-wave ovens, air warmers, air exhausters, ventilators,ovens, air filter, massage machines and many other equipments.
To design the lastest technology motors and meet our customers requirments,we have the very capable R&D team,to ensure our products quality ,we have very strict manage system for our production department & QC department,to make our cost lower,we have the very professional purchase department, We dedicate to make every details better than we could do.
To offer quick and better service to our customers in Australia and New Zeland,we set up branch office in Australia since 2017 with exprienced consultant to support the business ,which will bring more customers to get know of us.
We will keep doing our job,move forward step by step to make our business area wider and brighter.
Our company FAQ for you

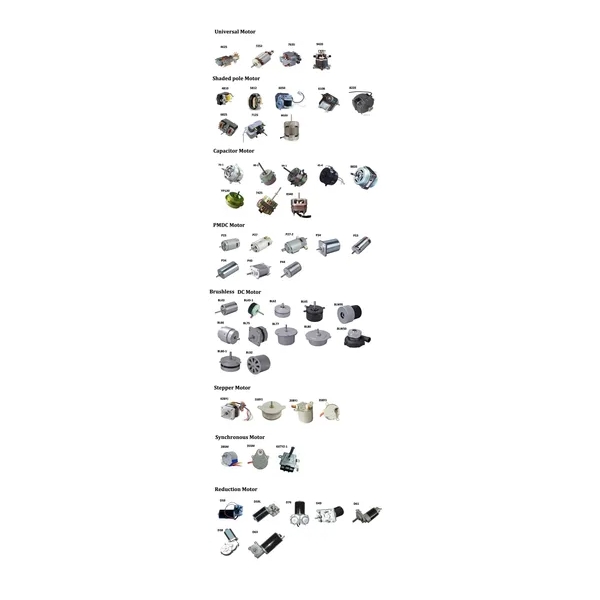

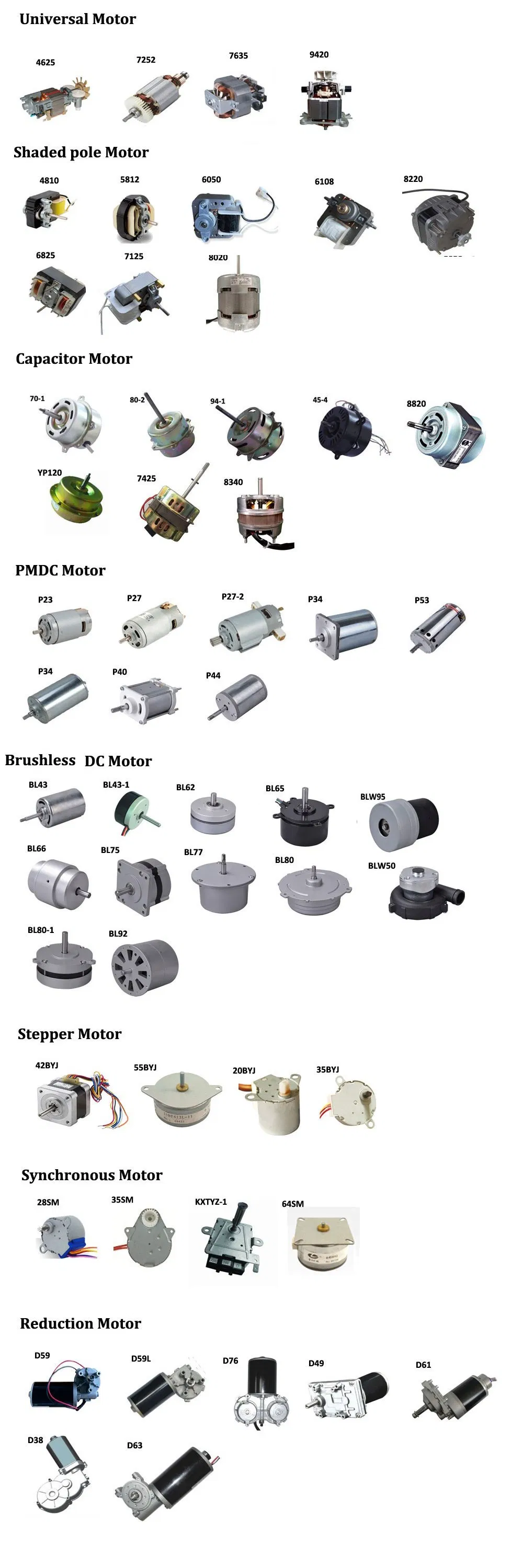

(1) Q: What kind motors you can provide?
A:For now,we mainly provide Kitchen Hood Motor,DC Motor,Gear Motor,Fan Motor Refrigerator Motor,Hair Dryer Motor Blender Motor Mixer Motor,
Shade Pole Motor,Capacitor Motor,BLDC Motor PMDC Motor,Synchronous Motor,Stepping Motor etc.
(2) Q: Is it possible to visit your factory
A: Sure. But please kindly keep us posted a few days in advance. We need to check our
schedule to see if we are available then.
(3) Q: Can I get some samples
A: It depends. If only a few samples for personal use or replacement, I am afraid it will
be difficult for us to provide, because all of our motors are custom made and no stock
available if there is no further needs. If just sample testing before the official order and
our MOQ, price and other terms are acceptable, we'd love to provide samples.
(4) Q: Is there a MOQ for your motors?
A: Yes. The MOQ is between 1000~10,000pcs for different models after sample approval.
But it's also okay for us to accept smaller lots like a few dozens, hundreds or thousands
For the initial 3 orders after sample approval.For samples, there is no MOQ requirement. But the less the better (like no more than 5pcs) on condition that the quantity is enough in case any changes needed after initial testing.
