Permanent Magnet Brushed Electric Coreless 1.5V DC Motor for Hair Dryer
$
1.20
/set
Product Details
- Model NO.: 6C614
- Function: Control, Driving
- Casing Protection: Closed Type
- Certification: ISO9001
- Transport Package: Standard Export Carton
Find Similar Products
Basic info
Model NO.
6C614
Function
Control, Driving
Casing Protection
Closed Type
Certification
ISO9001
Transport Package
Standard Export Carton
Specification
6mm x L14
Trademark
CHUNGFO
Origin
China
HS Code
8501109990
Production Capacity
4 Million PCS/Month
Product Description

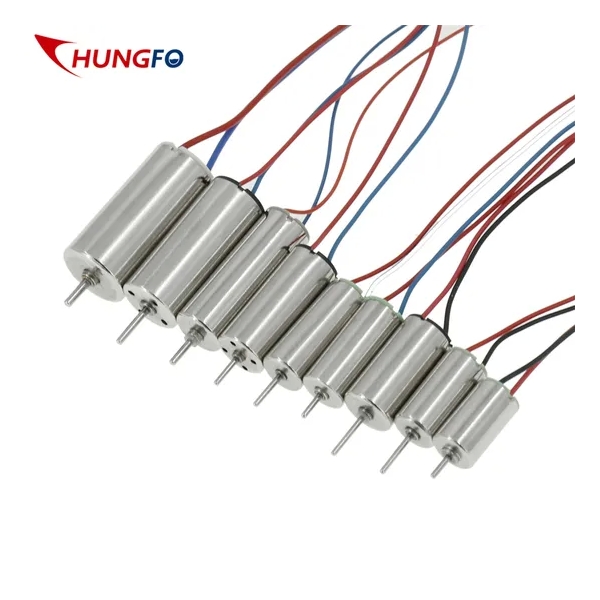

| 6C Series φ6mm x L14 Precious Metal Brushes |
| Motor Paramter | Motor Model | |||||||||||
| Values at nominal voltage | 6C1NA-029141 | 6C2NA-018111 | 6C3NA-031141 | |||||||||
| 1 | Rated voltage | V | 1.5 | 2.4 | 3.7 | |||||||
| Free Load | 2 | No load speed | rpm | 19450 | 46761 | 54020 | ||||||
| 3 | No load current | mA | 24 | 100 | 42 | |||||||
| At Max. Efficiency | 4 | Max. efficiency | % | 62.86% | 59.36% | 66.85% | ||||||
| 5 | Speed | rpm | 16112 | 38032 | 45678 | |||||||
| 6 | Current | mA | 116 | 441 | 229 | |||||||
| 7 | Torque | g.cm | 0.67 | 0.63 | 1.21 | |||||||
| At Max. Output | 8 | Max. output | W | 0.19 | 1.03 | |||||||
| 9 | Speed | rpm | 9725 | 23381 | 27010 | |||||||
| 10 | Current | mA | 294 | 1011 | 649 | |||||||
| 11 | Torque | g.cm | 1.94 | 4.31 | 3.62 | |||||||
| At Stall | 12 | Stall current | A | 0.6 | 1.92 | 1.09 | ||||||
| 13 | Stall torque | g.cm | 3.88 | 8.62 | 7.84 | |||||||
| Motor Constants | ||||||||||||
| 14 | Teminal resistance | Ω | 2.3 | 0.92 | 2.4 | |||||||
| 15 | Torque constant | g.cm/A | 7.194 | 4.737 | 6.455 | |||||||
| 16 | Speed constant | rpm/V | 13549 | 20569 | 15105 | |||||||
| 17 | Speed/Torque constant | rpm/g.cm | 5010 | 5424.3 | 6889.7 | |||||||

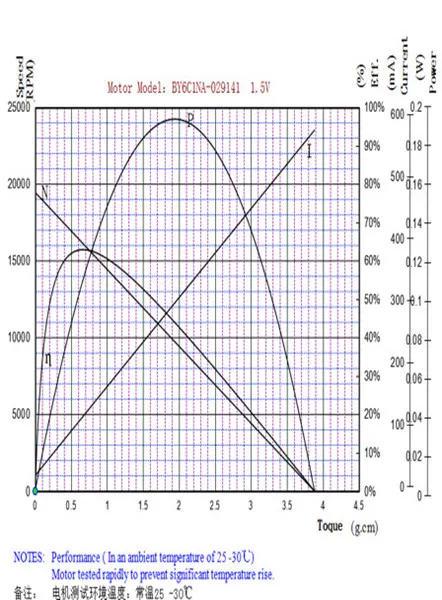

| Motor Characteristic | Typical Performance | ||||||||||||||||
| Thermal parameters |
|
||||||||||||||||
| 18 | Ambient temperature | -20~+65 | ºC | ||||||||||||||
| 19 | Max. permissible winding temperature | 85 | ºC | ||||||||||||||
| Mechanical parameters | |||||||||||||||||
| 20 | Max. penmissible No-load speed | 60000 | rpm | ||||||||||||||
| 21 | Max. axial load(dynamic) | 0.15 | N | ||||||||||||||
| Other parameters | |||||||||||||||||
| 22 | Number of pole pairs | 1 | |||||||||||||||
| 23 | Number of commutator segments | 3~5 | |||||||||||||||
| 24 | Weight | 1.8 | g | ||||||||||||||
| Remarks | |||||||||||||||||
| 1 | Rotation direction, wire specification and performance parameters can be | ||||||||||||||||
| made according to customer's requirement. | |||||||||||||||||

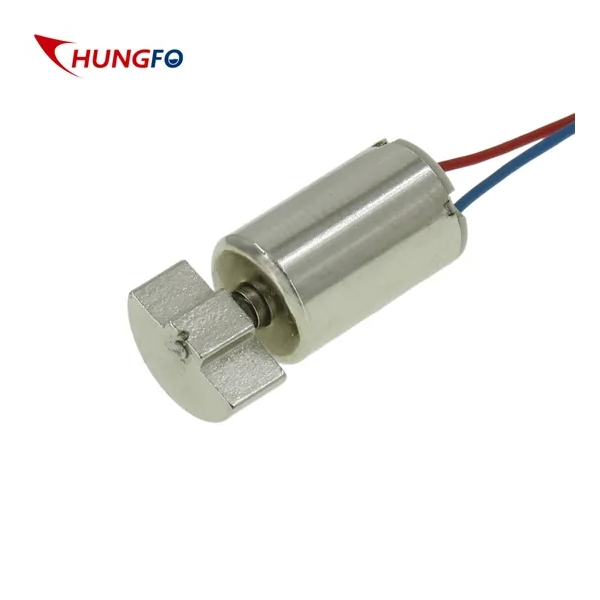

| 2 | Motor can be mounted with various shapes and sizes of eccentric weight which | ||||||||||||||||
| is made of iron, brass or ferro-alloy to become vibration motor. | |||||||||||||||||

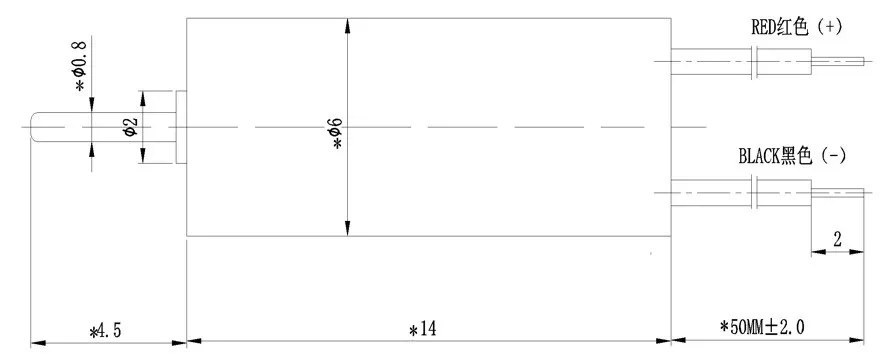

| 3 | Dimension with "*" in the drawing can be adjusted according to customer's requirement. | ||||||||||||||||
| 1g=0.035oz 1inch=25.4mm 1g.cm=0.098mN.m 1oz=28.35g 1mm=0.0394inch 1mN.m=10.2g.cm | |||||||||||||||||

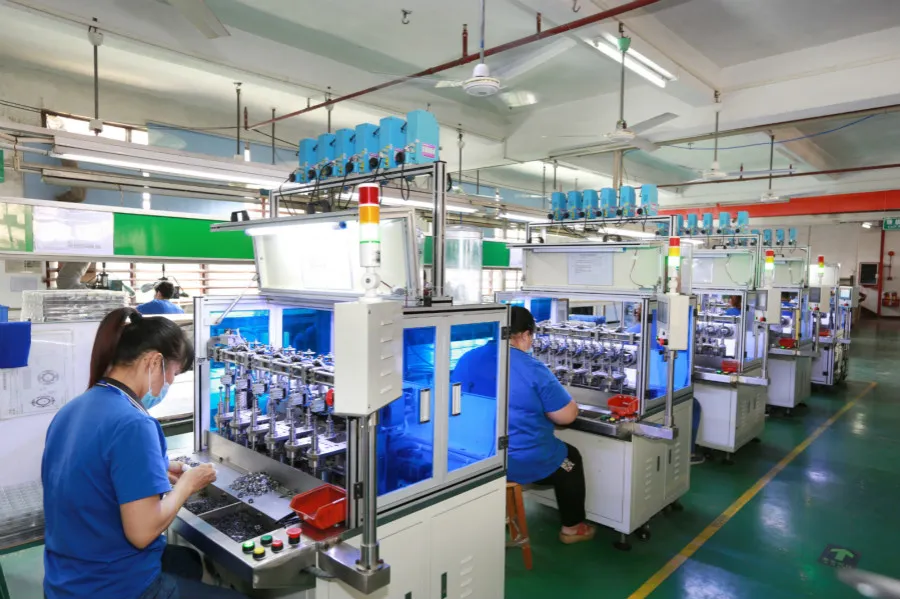

Company & Factory
 |
 |
 |
 |
 |
 |
 |
 |
 |
