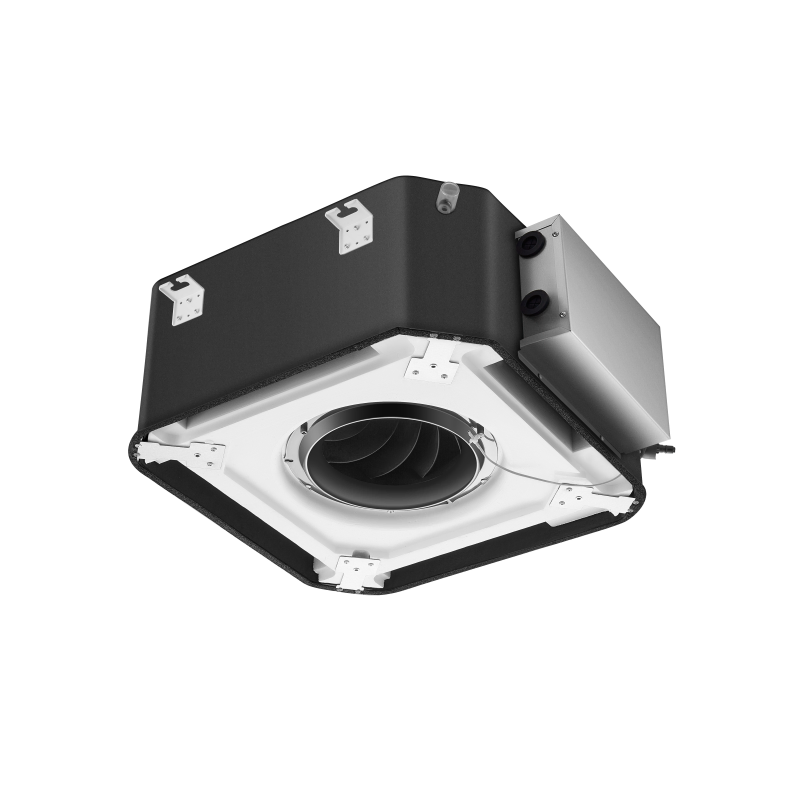

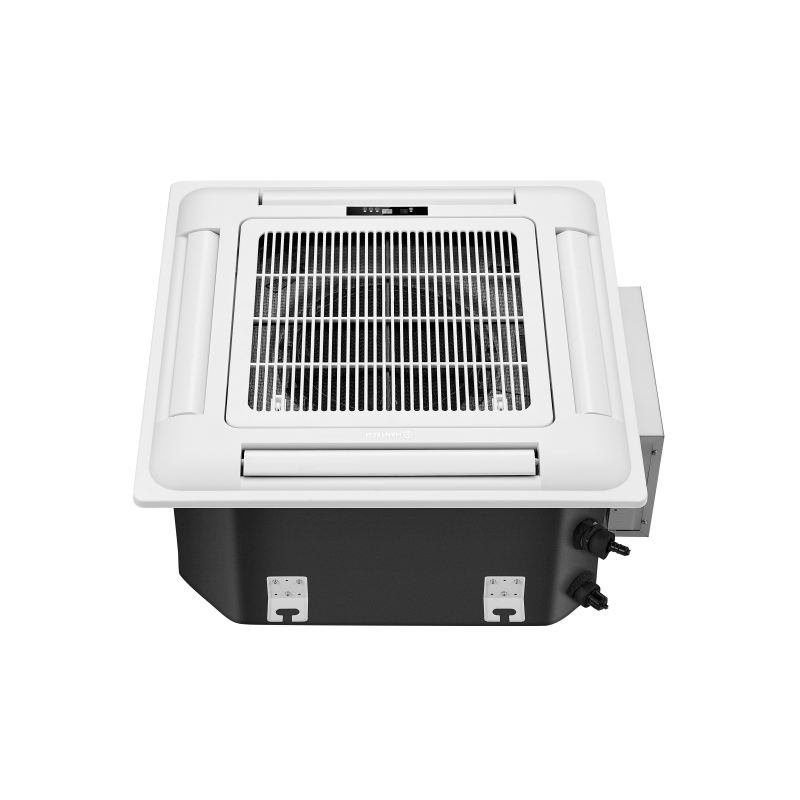

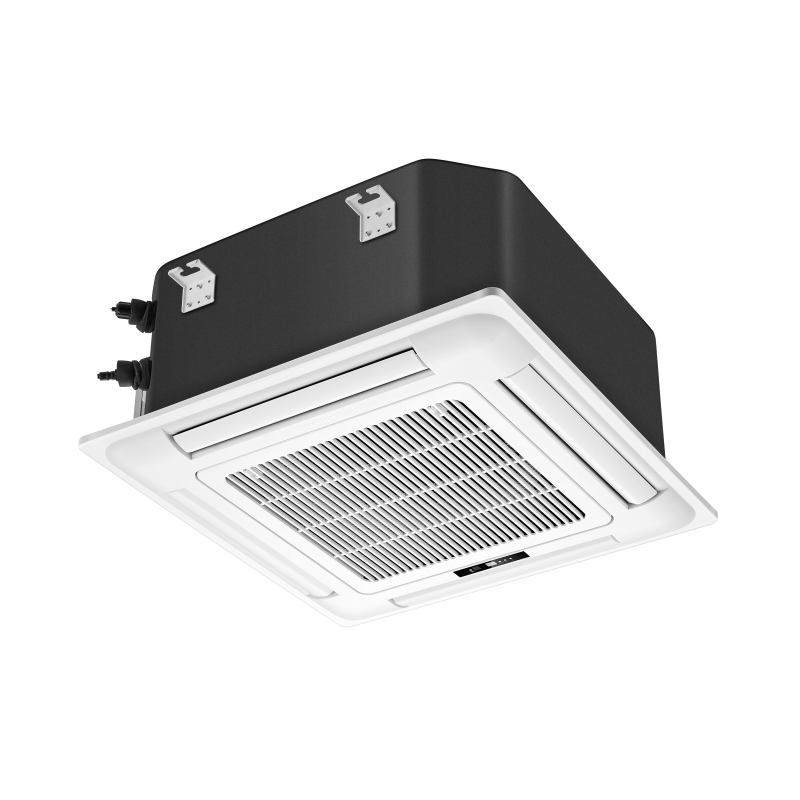

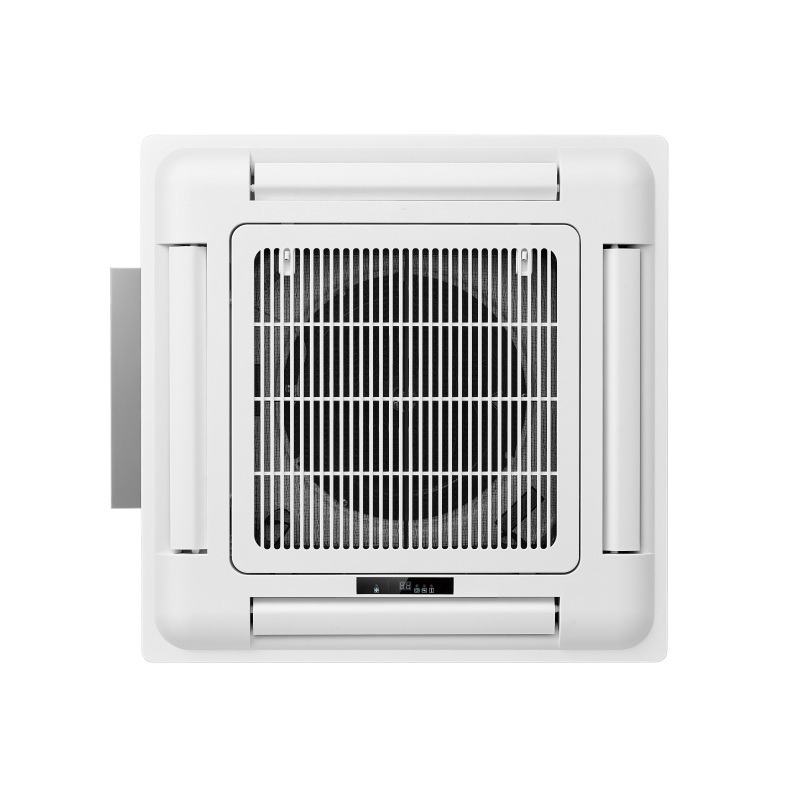

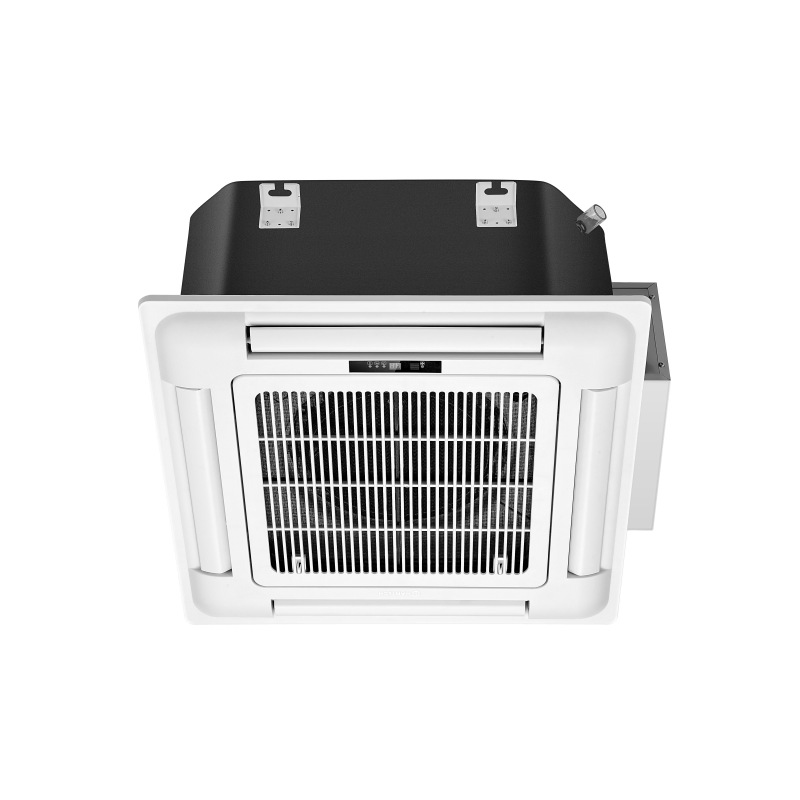

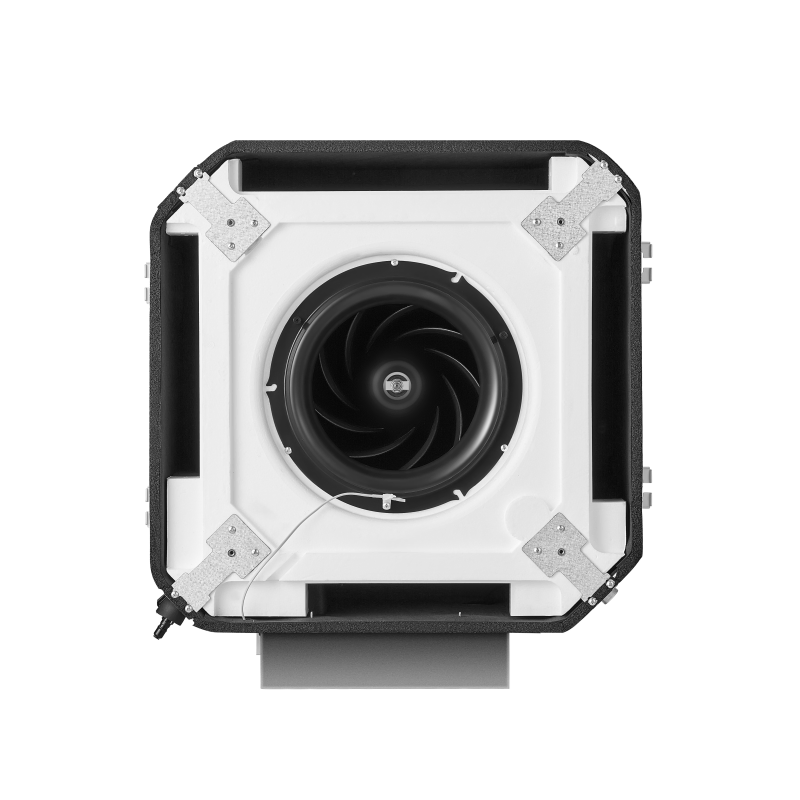

Wholesale OEM/ODM 18seer 50Hz 18000-60000BTU Ceiling Mount Cassette Air Conditioner R410A Inverter Fan Coilunit Forshop/
$
728.00
/set
Product Details
- Model NO.: Light Commercial
- Usage: Room
- Indoor Machine Noise: <23dB
- Certification: CE, RoHS, CE,LVD,EMC,CB,ERP, ETL,UL,RoHS
- China Energy Efficiency Standard: Level 1
Find Similar Products
Basic info
Model NO.
Light Commercial
Usage
Room
Indoor Machine Noise
<23dB
Certification
CE, RoHS, CE,LVD,EMC,CB,ERP, ETL,UL,RoHS
China Energy Efficiency Standard
Level 1
Cooling/Heating
Cooling Only
Power Source
Electrical
Power Type
DC
Condition
New
Transport Package
Carton Box
Specification
Standard Specifications or Customized
Trademark
OEM/ODM
Origin
China
HS Code
84151022
Production Capacity
5, 000, 000 PCS/Year
Product Description
| Power supply | V//Hz/Ph | 220-240V~/50Hz/1P | 220-240V~/50Hz/1P | 220-240V~/50Hz/1P | 220-240V~/50Hz/1P | 220-240V~/50Hz/1P | |
| Cooling | Capacity | Btu/h | 18000 | 24000 | 36000 | 48000 | 55000 |
| Capacity | W | 5200 | 7000 | 10500 | 14000 | 16119 | |
| Input | W | 1761 | 2050 | 3850 | 4560 | 5694 | |
| Rated current | A | 8 | 8.7 | 17 | 9.3 | 12 | |
| EER | W/W | 2.95 | 3.41 | 2.73 | 3.07 | 2.83 | |
| Heating | Capacity | Btu/h | 18000 | 24000 | 40000 | 50000 | 60500 |
| Capacity | W | 5200 | 7000 | 12000 | 14650 | 17731 | |
| Input | W | 1513 | 1850 | 3650 | 4446 | 4845 | |
| Rated current | A | 6.87 | 8 | 16.5 | 9.5 | 12.4 | |
| COP | W/W | 3.9 | 3.78 | 3.29 | 3.3 | 3.66 | |
| Indoor coil | Number of row | 3 | 3 | 3 | 3 | 3 | |
| Fin spacing | mm | 1.4 | 1.4 | 1.4 | 1.4 | 1.4 | |
| Fin material | Hydrophilic & Louver Fin | Hydrophilic & Louver Fin | Hydrophilic & Louver Fin | Hydrophilic & Louver Fin | Hydrophilic & Louver Fin | ||
| Tube outside diameter | mm | φ7 | φ7 | φ7 | φ7 | φ7 | |
| Tube material | Innergroover tube type | Innergroover tube type | Innergroover tube type | Innergroover tube type | Innergroover tube type | ||
| Coil length x height x width | mm | 734×252×38.1 | 734×252×38.1 | 977×336×38.1 | 1030×378×38.1 | 1030×378×38.1 | |
| Number of circuit | 6 | 6 | 8 | 9 | 9 | ||
| Indoor fan motor | Brand | Match-well | Match-well | Match-well | Match-well | Match-well | |
| Model | YSK68-4P-5 | YSK74-4P-5 | YSK140-4P-5 | YSK170-4P-2 | YSK170-4P-2 | ||
| Input | W | 98/86/72/66 | 190/136/104/82 | 268/218/156/128 | 326/248/182/138 | 326/248/182/138 | |
| Running current | A | 0.45/0.48/0.37/0.30 | 0.88/0.63/0.49/0.39 | 1.25/1.00/1.08/0.582 | 1.49/1.21/108/0.63 | 1.49/1.21/108/0.63 | |
| Capacitor | uF | 4 | 5 | 10 | 10 | 10 | |
| Speed (Hi/Me/Lo) | rpm | 1140/1000/775/660 | 990/830/720/640 | 1055/920/750/665 | 1060/890/740/630 | 1060/890/740/630 | |
| Indoor air flow (Hi/Me/Lo) | m3/h | 1170/770/650 | 1400/950/800 | 1800/1500/1350 | 2100/1750/1550 | 2200/1800/1600 | |
| Indoor external static pressure (Hi) | Pa | 70 | 70 | 80 | 100 | 100 | |
| Indoor noise level (Hi/Me/Lo) | dB(A) | 43/35/32 | 46/43/41 | 46/44/42 | 47/44/42 | 47/45/43 | |
| Indoor dimension(with filter) | Unit (WxHxD) | mm | 920x210x605 | 920x270x605 | 1140x270x745 | 1200x300x835 | 1200x300x835 |
| Packing (WxHxD) | mm | 1115x280x690 | 1115×340×690 | 1345x345x830 | 1405x375x925 | 1405x375x925 | |
| Indoor weight | Net | kg | 22 | 28 | 35 | 43 | 43 |
| Gross | kg | 27 | 32 | 42 | 50 | 50 | |
| Refrigerant | Type | R410A | R410A | R410A | R410A | R410A | |
| Refrigerant pipe | Liquid side | mm | 6.35 | 9.52 | 9.52 | 9.52 | 9.52 |
| Gas side | mm | 12.7 | 15.88 | 15.88 | 19.05 | 19.05 | |
| Drainage water pipe diameter | mm | OD25 | OD25 | OD25 | OD25 | OD25 | |
| Ambient temperature range | Cooling | ºC | 21~43 | 21~43 | 21~43 | 21~43 | 21~43 |
| Heating | ºC | -7 ~ 24 | -7 ~ 24 | -7 ~ 24 | -7 ~ 24 | -7 ~ 24 | |
| Operation Control | Remote controller | Remote controller | Remote controller | Remote controller | Remote controller | ||
Q1: Are you a manufacturer or trading company? How can I trust your company?
A: We are one of the best professional AC solutions manufacturers and suppliers in China with more than 15 years of experience.
Q2: Can you provide drawing design services?
A: Yes, we have a professional AC engineering team to design your project and optimize the solution, and we can also provide professional AC drawings.
Q3: Do you have technical support?
A: We have a professional technical team available 7*24 hours to answer technical questions. After the goods arrive, we can also guide installation and debugging via online video or phone call. If required, we can also dispatch a project engineer to your country at a reasonable cost.
Q4: Can you help me calculate the best logistics and transportation price in my country?
A: Yes, our professional logistics team will help you arrange cost-effective shipping services, allowing you to ship quickly and at a lower cost. Normally we recommend shipping 20GP, 40GP, 40HQ in full container.
Q5: What is your delivery time?
A:About 35-40 days for standard units. The specific time depends on your needs.
Q6: Can you provide mounting accessories with the equipment?
A: Yes of course. This is one of our standard services and we can calculate and quote the installation kit you require. Note: Most of our customers prefer to ship the equipment and installation materials together, we specialize in doing this with good packaging methods.
Q7: How about the packaging?
A: Carton packaging, different logos can be customized according to customer requirements.
Q8: What payment methods are supported?
A: Usually payment is by T/T payment method.
