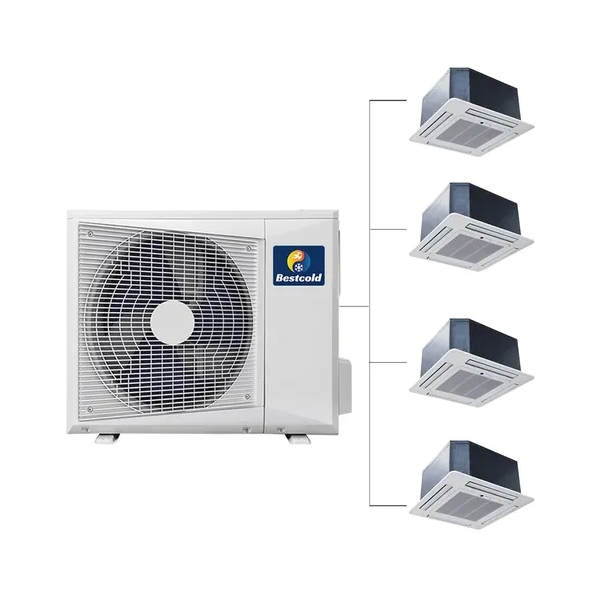

R410A Multi Split Air Conditioners Ceiling Cassette Fan Coil Unit Vrf Vrv Household Central Air Conditioning System
$
890.00
/set
Product Details
- Model NO.: Bestcold
- Usage: Room
- Indoor Machine Noise: 24-35dB
- Certification: CE, CCC, RoHS
- China Energy Efficiency Standard: Level 1
Find Similar Products
Basic info
Model NO.
Bestcold
Usage
Room
Indoor Machine Noise
24-35dB
Certification
CE, CCC, RoHS
China Energy Efficiency Standard
Level 1
Cooling/Heating
Cooling/Heating
Power Source
Electrical
Power Type
AC
Condition
New
Eer
3.21
Transport Package
Standard Carton Package
Specification
9000/12000/18000/24000BTU
Trademark
BESTCOLD
Origin
China
HS Code
8415102100
Production Capacity
20000
Product Description

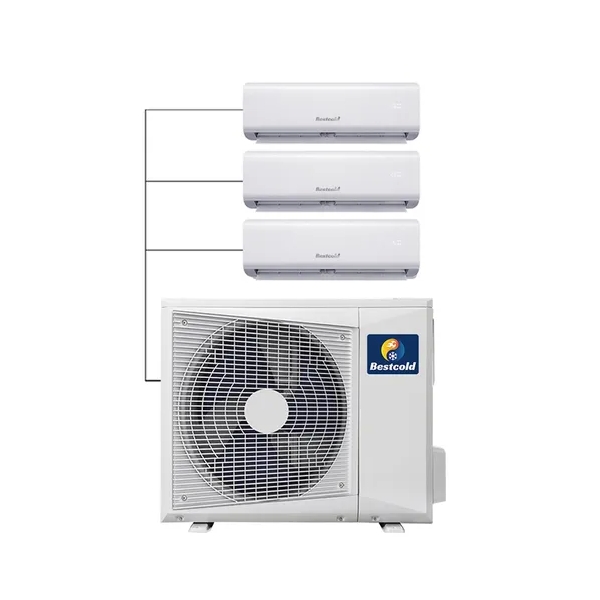

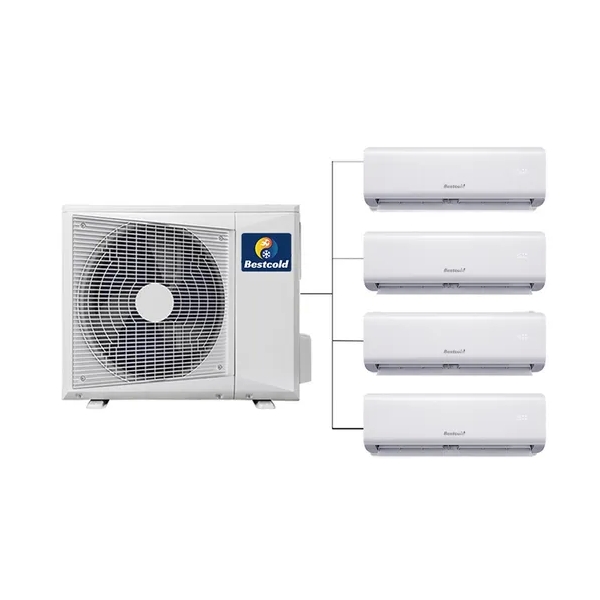

| Wall mounted IDU | MYCCG-V07HR4-GSA-S40 | MYCCG-V09HR4-GSA-S40 | MYCCG-V12HR4-GSB-S40 | MYCCG-D18HR4-GSC-S40 | ||
| 821040300092 | 820037100010 | 820037100011 | 820037100016 | |||
| Power supply | V/Ph/Hz | 220~240/1/50 | 220~240/1/50 | 220~240/1/50 | 220~240/1/50 | |
| Capacity | ||||||
| Cooling | Capacity | Btu/h | 7000 | 9000 | 12000 | 18000 |
| kW | 2.1 | 2.6 | 3.5 | 5.3 | ||
| Heating | Capacity | Btu/h | 8000 | 10000 | 13000 | 19000 |
| kW | 2.3 | 2.9 | 3.8 | 5.6 | ||
| Max | Current | A | 0.3 | 0.3 | 0.4 | 0.5 |
| Input | W | 35 | 35 | 45 | 55 | |
| Physicial data | ||||||
| Fan motor | Model | YDK-15-4P3-AL | YDK-15-4P3-AL | YDK-15-4P3-AL | YDK-26G-4P3 | |
| Type | AC | AC | AC | AC | ||
| Output | W | 13 | 13 | 13 | 26 | |
| Capacitor | μF | 1.5 | 1.5 | 1.5 | 1.5 | |
| Speed(L/M/H/T) | r/min | 850/1030/1150/1200 | 850/1030/1150/1200 | 800/1100/1220/1250 | 900/1050/1180/1200 | |
| Indoor coil | Number of rows | 2 | 2 | 2 | 2 | |
| Tube pitch(a)xrow pitch(b) | mm | 21*13.37 | 21*13.37 | 21*13.37 | 21*13.37 | |
| Fin type | Hydrophilic | Hydrophilic | Hydrophilic | Hydrophilic | ||
| Fin spacing | mm | 1.3 | 1.3 | 1.3 | 1.3 | |
| Tube outside dia. and type | mm | 7 | 7 | 7 | 7 | |
| Inner screw | Inner screw | Inner screw | Inner screw | |||
| Indoor air flow(Hi) | m3/h | 450 | 450 | 550 | 850 | |
| Sound power noise level(Hi) | dB(A) | 50 | 50 | 50 | 53 | |
| Net dimension(W×H×D) | mm | 715*295*198 | 715*295*198 | 864*300*200 | 972*320*215 | |
| packing dimension(W×H×D) | mm | 785*370*285 | 785*370*285 | 950*380*290 | 1060*405*320 | |
| Net/Gross weight | kg | 8.5/10.5 | 8.5/10.5 | 9.5/11.5 | 11.5/14.5 | |
| Piping data | ||||||
| Liquid/Gas | mm | 6.35/9.52 | 6.35/9.52 | 6.35/9.52 | 6.35/12.7 | |
| Drainage pipe | mm | DN17 | DN17 | DN17 | DN17 | |
| Application area | m2 | 10~15 | 12~18 | 16~23 | 23~34 | |
