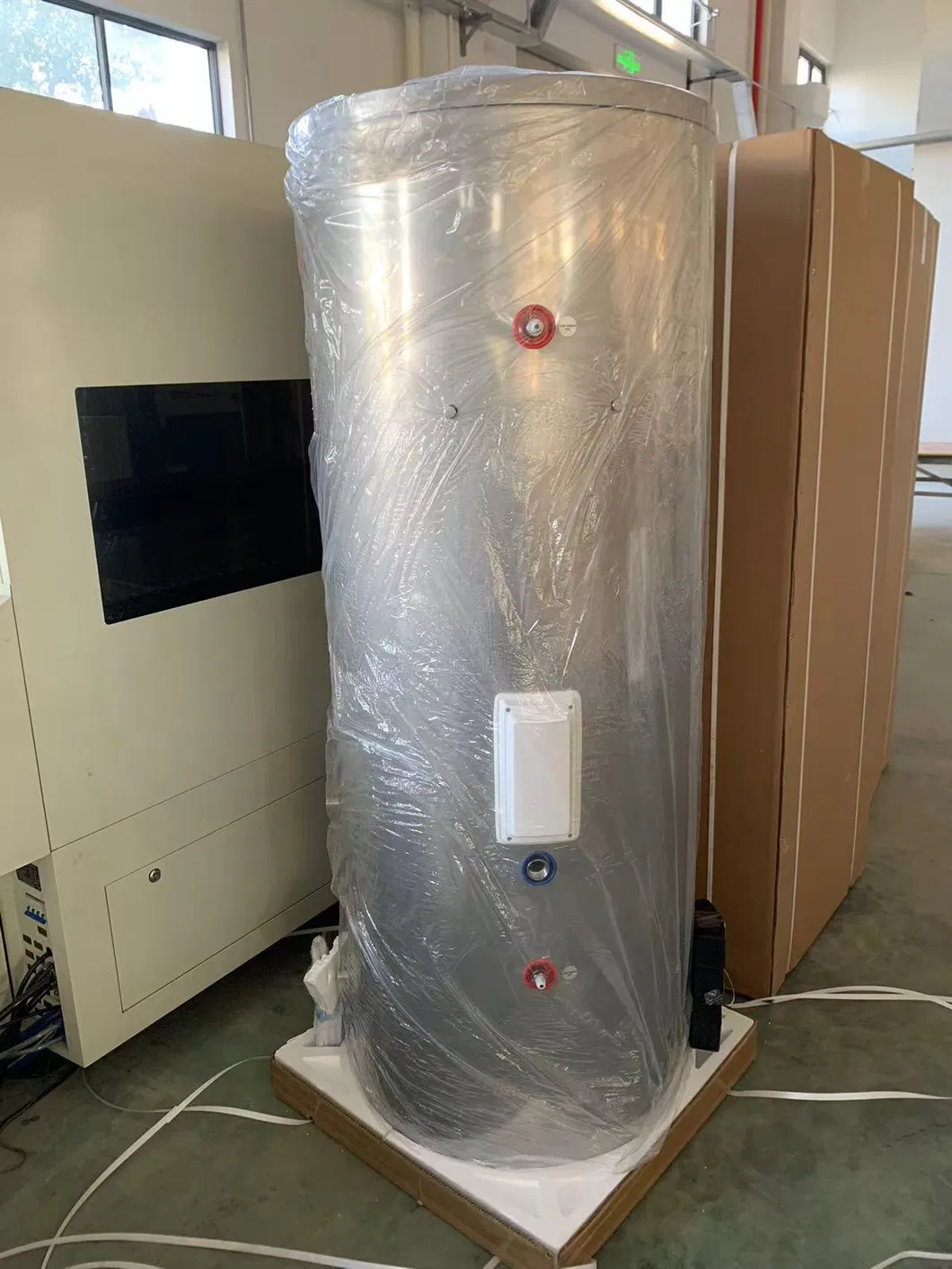

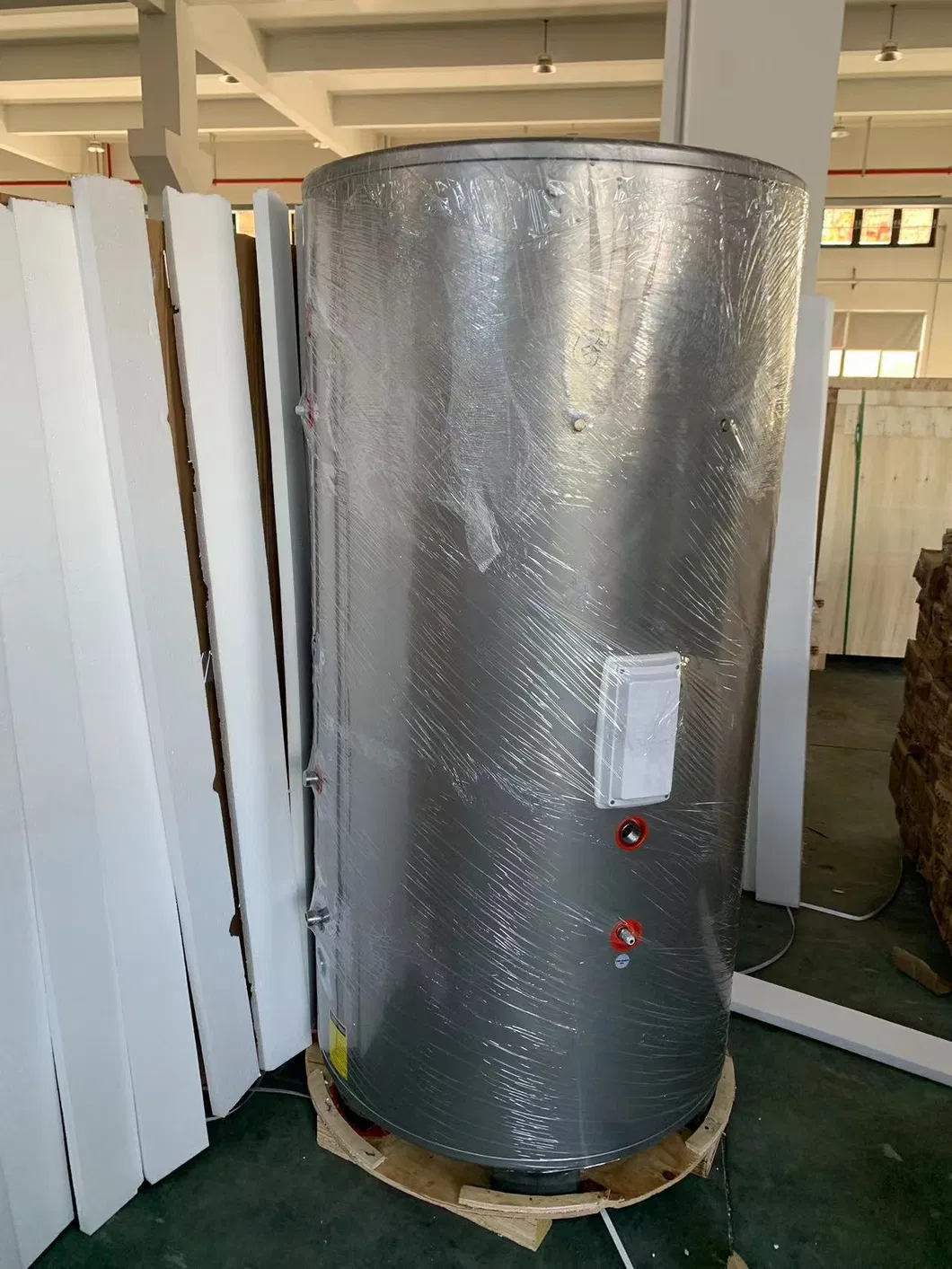

750L 304stainless Steel Insulated Solar Hot Storage Tank with Electric Heater Backup
$
1500.00
/set
Product Details
- Model NO.: VODPT750
- Installation: Vertical Type
- Pressure: Pressurized
- Bearing or Not: Closed
- Control Mode: Mechanical
Find Similar Products
Basic info
Model NO.
VODPT750
Installation
Vertical Type
Pressure
Pressurized
Bearing or Not
Closed
Control Mode
Mechanical
Interior Material
Stainless Steel
Housing Material
Color Steel
Usage
Bathroom, Kitchen, Swimming Pool
Certification
CE, ISO9001
Transport Package
Exported Cartons
Specification
750L
Trademark
OEM
Origin
China
HS Code
84199010
Production Capacity
30PC/Day
Product Description
500L stainless steel solar water tank
Working with solar collector and pumpstation for solar system ,and prepare one coil as heat exchanger for space heating and other backup such as gas boiler and other source heating support.
Tank backup with electric heater in case no sun such as cloudy or rainy.
Heater exchanger : copper coil ,stainless steel are available , pre-installed 1,2,3 numbers available.
Electric heater size :6KW to 10KW or more
Which work bearing pressure which from tap water, so the pressure is same as tap water pressure, comsumer can use the water confirtable.
Working with solar collector and pumpstation for solar system ,and prepare one coil as heat exchanger for space heating and other backup such as gas boiler and other source heating support.
Tank backup with electric heater in case no sun such as cloudy or rainy.
Heater exchanger : copper coil ,stainless steel are available , pre-installed 1,2,3 numbers available.
Electric heater size :6KW to 10KW or more
Which work bearing pressure which from tap water, so the pressure is same as tap water pressure, comsumer can use the water confirtable.
| Item No. | Tank Capacity | Tank Size | Inner Tank Thickness | Heat | Insulation | Packing | Container Loading Sets | ||
| Exchanger | Thickness | Volume | 20GP | 40GP | 40HQ | ||||
| VPDPT100 | 100L | Φ480 mm*1000 mm | 1mm | 1Pcs | 50 mm | 0.37 cbm | 76 | 157 | 184 |
| VODPT150 | 150L | Φ480 mm*1450 mm | 1.2 mm | 2 Pcs | 50 mm | 0.5 cbm | 56 | 116 | 184 |
| VODPT200 | 200L | Φ550 mm*1400 mm | 1.5 mm | 2 Pcs | 50 mm | 0.57 cbm | 49 | 102 | 119 |
| VODPT250 | 250L | Φ580 mm*1470 mm | 1.5 mm | 2 Pcs | 50 mm | 0.7 cbm | 40 | 83 | 97 |
| VODPT300 | 300L | Φ580 mm*1740 mm | 1.5 mm | 2 Pcs | 50 mm | 0.81 cbm | 35 | 72 | 84 |
| VODPT400 | 400L | Φ700 mm*1630 mm | 2.0 mm | 2 Pcs | 60 mm | 0.98 cbm | 29 | 59 | 69 |
| VODPT500 | 500L | Φ700 mm*1845 mm | 2.0 mm | 2 Pcs | 60 mm | 1.17 cbm | 24 | 50 | 58 |
| VODPT600 | 600L | Φ700 mm*2230 mm | 2.0 mm | 2 Pcs | 60 mm | 1.35 cbm | 21 | 43 | 50 |
| VODPT700(A) | 700L | Φ800 mm*1930 mm | 2.0 mm | 2 Pcs | 50 mm | 1.53 cbm | 18 | 38 | 44 |
| VODPT800 | 800L | Φ900 mm*1720 mm | 2.5 mm | 2 Pcs | 50 mm | 2.88 cbm | 10 | 22 | 26 |
| VODPT1000 | 1000L | Φ900 mm*2000 mm | 2.5 mm | 2 Pcs | 50 mm | 3.31 cbm | 8 | 18 | 18 |
