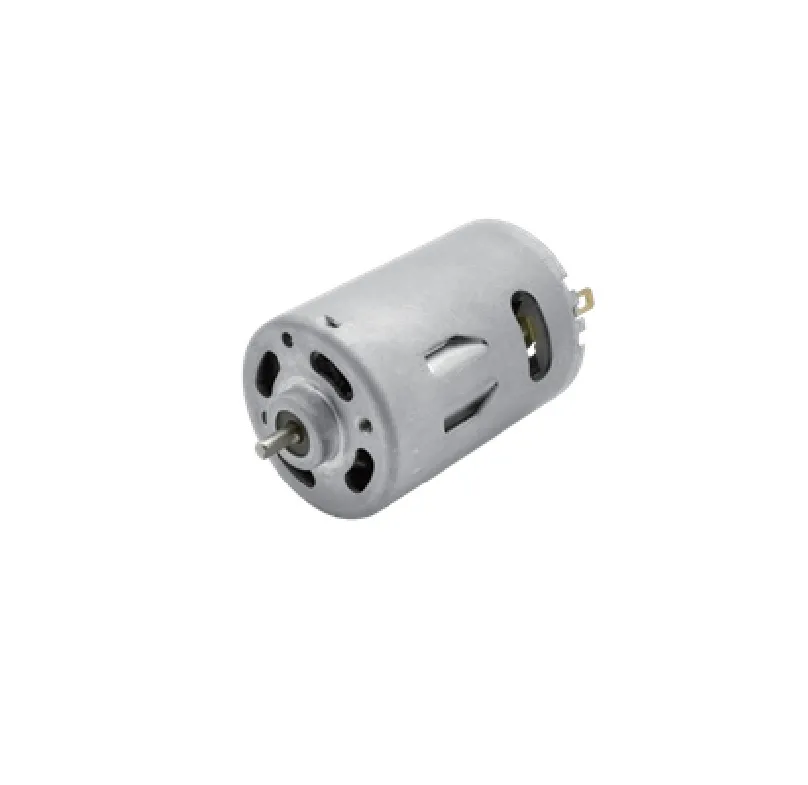

540 545sh RS550 12V DC Brushed Motor Used for Power Tools, Electric Screwdrivers Corless Drill Household
$
5.00
/set
Product Details
- Model NO.: 540/545SH
- Function: Control, Driving
- Casing Protection: Open Type
- Number of Poles: 2
- Certification: ISO9001, CCC, CE
Find Similar Products
Basic info
Model NO.
540/545SH
Function
Control, Driving
Casing Protection
Open Type
Number of Poles
2
Certification
ISO9001, CCC, CE
Brand
Wiely Motor

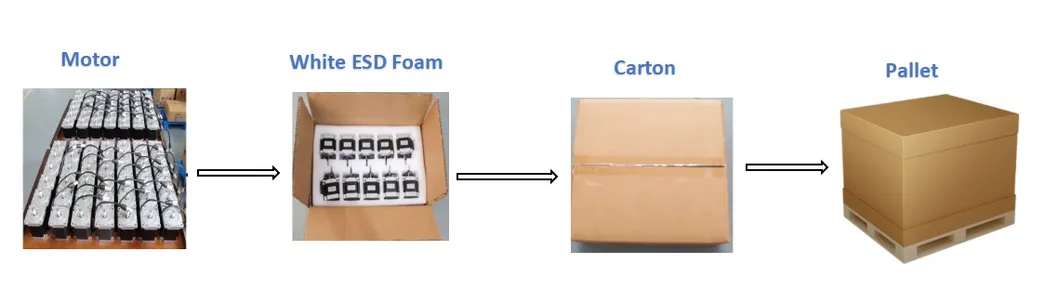

Transport Package
Carton
Specification
41x27x25cm
Trademark
Wiely Motor
Origin
China
HS Code
850131000
Production Capacity
100000/Year
Product Description
540 545SH RS550 Replacement 12V DC Brushed Motor used for Power Tools, electric screwdrivers, Cordless Dril,Hand Drill,Household appliance,Hair dryer and pocorn massage
DC Motor offers powerful holding torque in a variety of sizes
- Our 540/545SH (option can be with gear teeth) DC Brushed Motor are specially designed for rechargeable lithium battery power tools, such as rechargeable electric cordless drill and screwdriver.

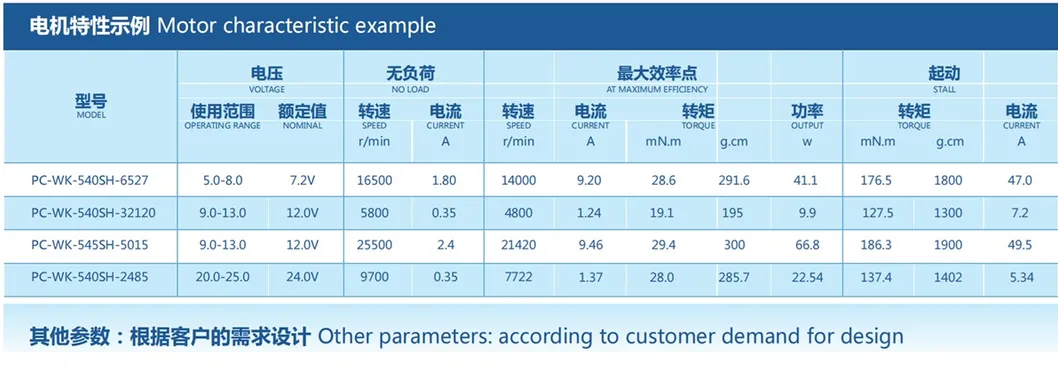

- The 540/545SH support voltages: 9.6V / 10.8V / 12V / 14.4V / 16.8V / 18V / 21V / 25V, and Support gear teeth number: 9 / 11 / 12 / 13 / 14 / 15, makes it suitable for many brands and models of power tools.
- Our 540/545SH motor with High-speed ( 25000 RPM), high torque, high-power, low noise and long life, which is suitable as a replacement motor for electric drill and screwdriver.
- Since the motors and gears of different brands and models of power tools may be completely different, please check carefully the model and size of the motor, the number of teeth of the gears, and especially the diameter of the gears before purchasing.
- Our 540/545SH Motor is professional as replacement motor for electric drill and screwdriver, so you can buy them with confidence. If you have any questions, please contact us by email, we will be very happy to serve you!

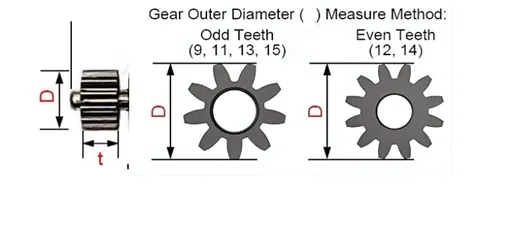

Gear Options:
| Gear Teeth Number | 9 | 11 | 12 | 13 | 14 | 15 |
| Gear Outer Diameter(D)mm | 7.9 | 8.8 | 8.6 | 9.2 | 9.5 | 10.4 |
| Gear Thickness(t)mm | 6.8 | 5 | 5.2 | 5.2 | 5.8 | 8 |
Note:
Please check the following information carefully:
1) The motor's model and voltage.
2) The gear's teech number and outer diameter

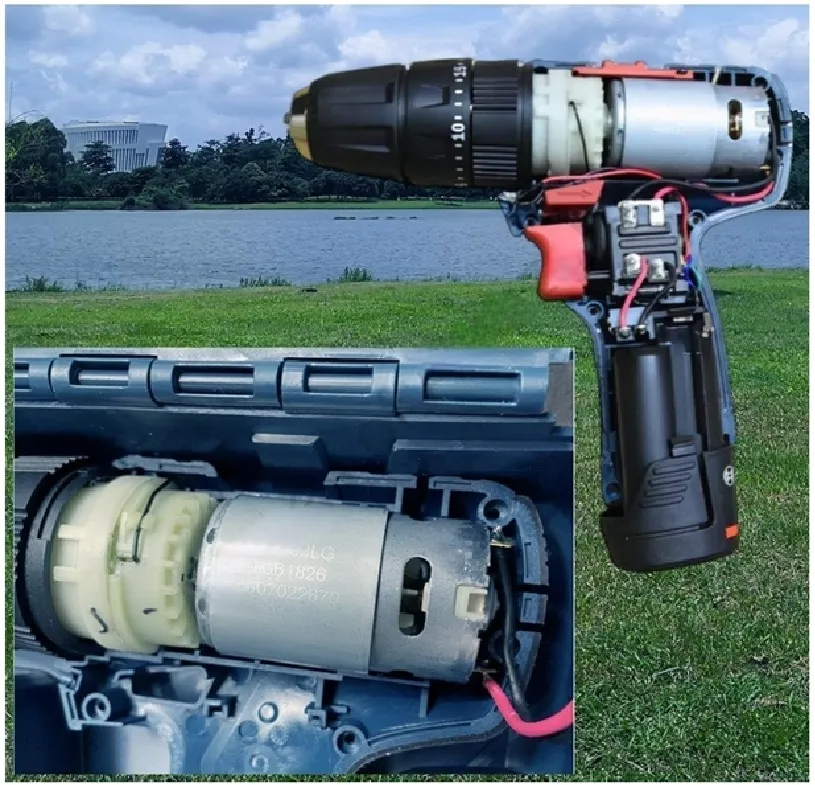

Power Tools,
Electric screwdrivers,
Cordless Dril
Hand Drill
Household appliance
Hair dryer and pocorn massage
Price Term:
Our standard price will be FCA Changzhou price Incoterms 2020
CFR,CIF,CPT price term will be available for customized
