Basic info
Model NO.
XS97 Smart
CPU
4
Standard
Ott
Function
IPTV
Type
Ott
WiFi
Mino 2T2R 2.4G/5g
Transport Package
Canton
Specification
198.5x143x53mm
Trademark
Xangshi
Origin
China
HS Code
8517629900
Production Capacity
15000PCS/Day
Package Size
20.00cm * 15.00cm * 6.00cm
Package Gross Weight
0.600kg
Product Description
Independent Factory, Professional OEM & ODM Service Provider
We have 15 years of experience in set-top box production and can provide various customized OEM ODM services:
- Packing & logo Printing: The design team with rich experience in customized design will design your logo, packaging and advertising
-
SoC: Amlogic - S905W2, S905X3, S905X4, S905Y4…
Allwinner - H313, H618… - CPU: Quad-core ARM Cortex™-A35;Quad-core ARM Cortex™-A55;Quad-core ARM Cortex™-A53
- GPU: Mali-G31MP2
- RAM: 1GB/2GB/4GB
- FLASH: 8GB/16GB/32GB/64GB
- OS: Android 10.0, Android 11.0, Android 12.0, Linux 4.9
- Solution customization: According to your needs for you to customize the appropriate products and technical solutions for you to choose

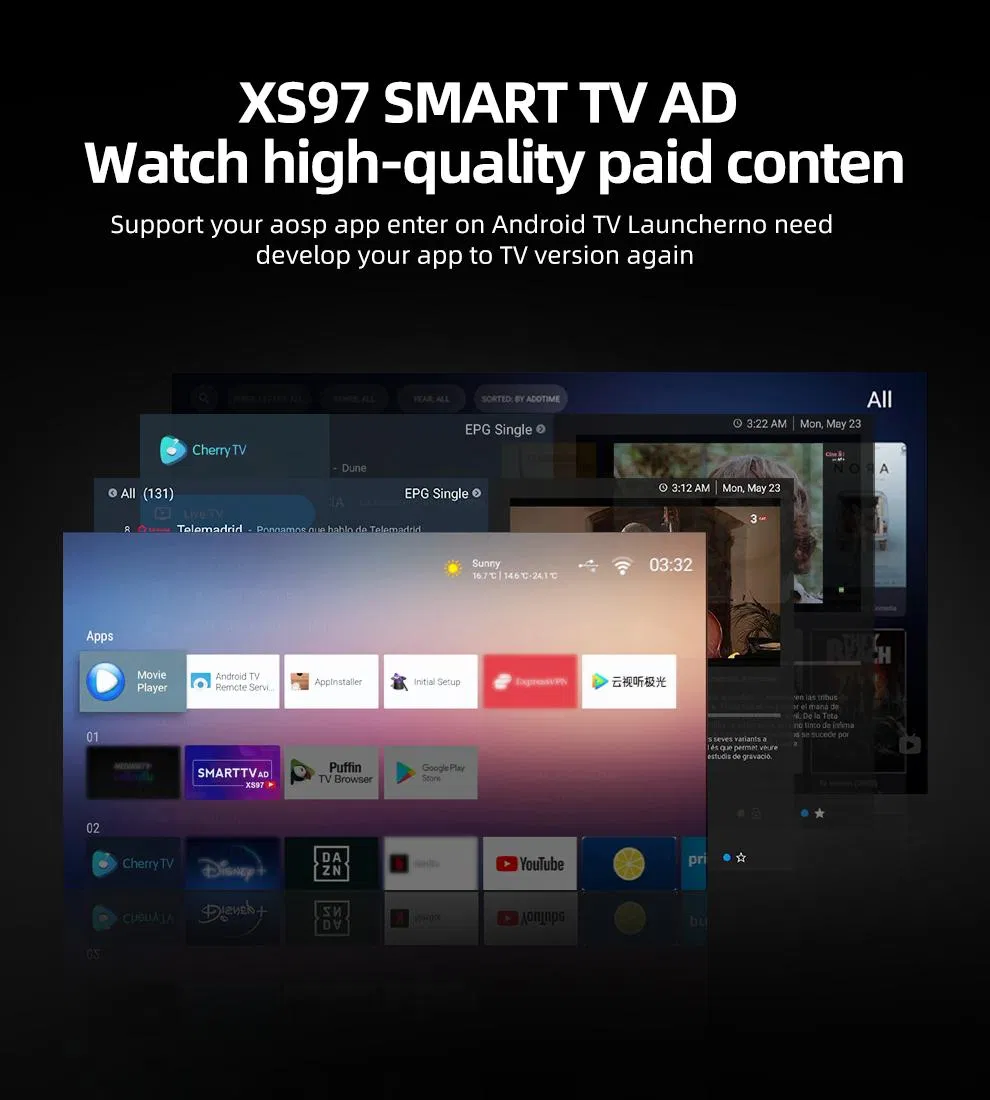

- UI page provided for you: We have rich customization experience and can help you better design a UI interface that caters to the market and is loved by customers
- Pre-install the applications you need: As long as you have the APK, we can not only help you pre-install the applications you need, but also provide cloud services to help you update your software in the background
We have strong engineer team with hardware and software engnieers for OEM and ODM, which is well-equipped to assist you in custom designing your company logo, product packaging, UI pages, and PCBA, ensuring that these elements align perfectly with your brand identity. Just contact us for more information and cooperation!

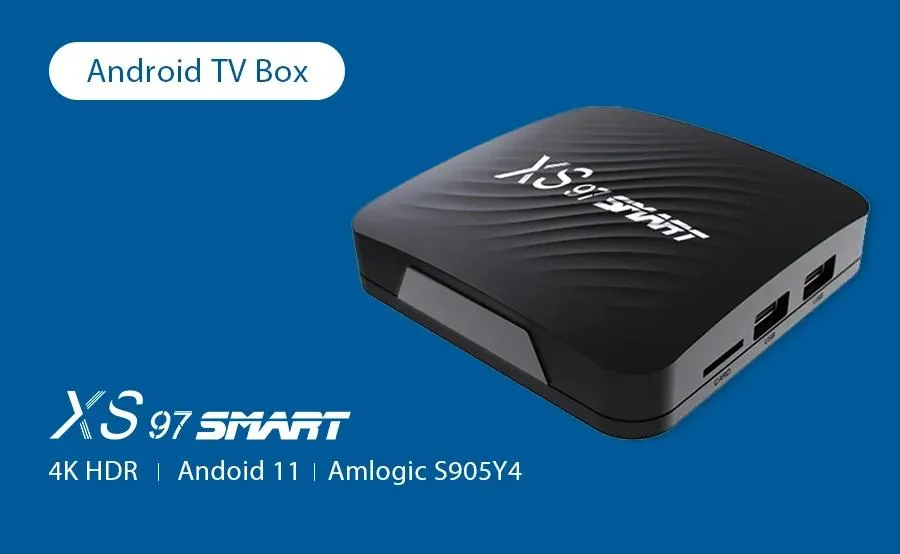

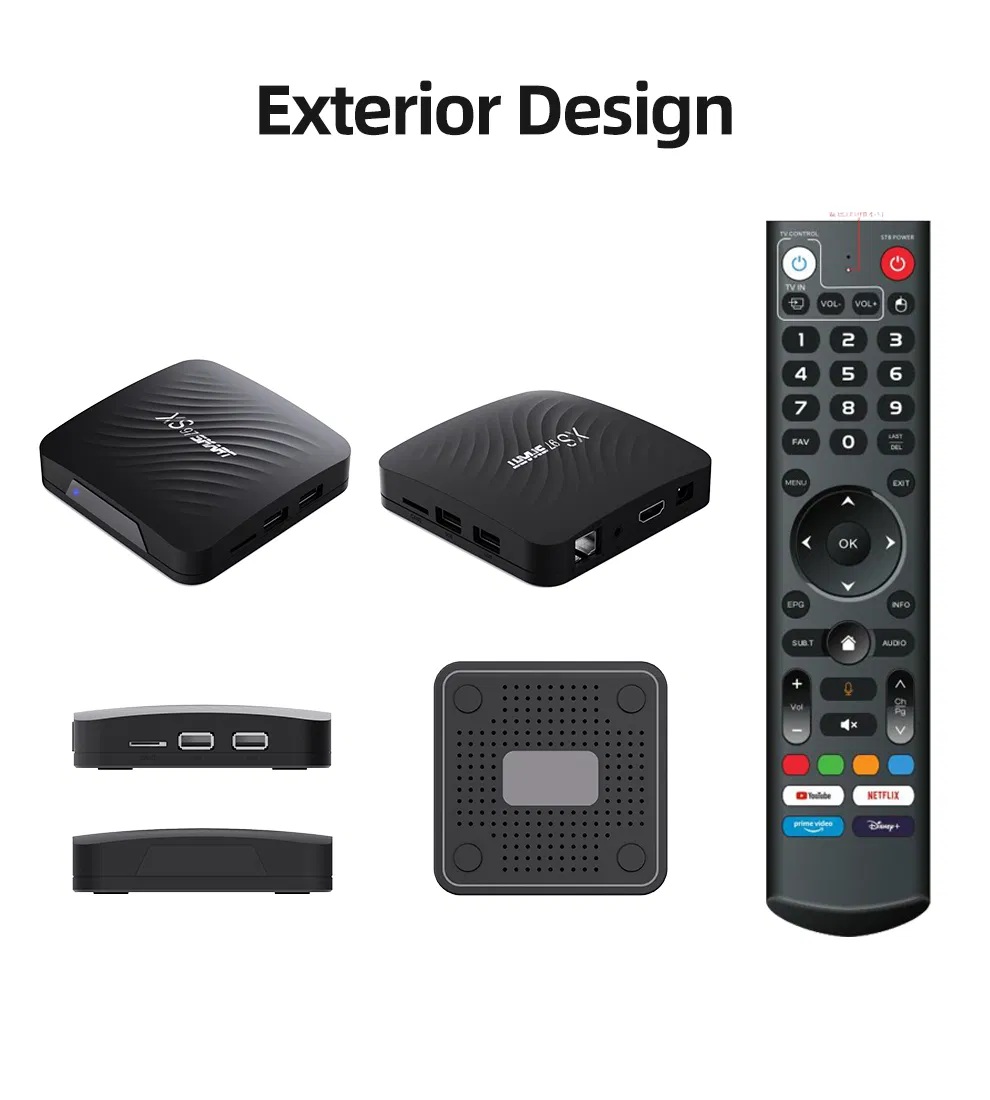

About XS97 Smart TV BOX:
1.Highest specifications with amlogic s905y4 ddr4 4gb ram 32gb rom
2.Support Widevine Level 1
3.Pre-install iptv applications
4.Provide OTA Upgraded
5.For small quantity orders can provide Customized tools

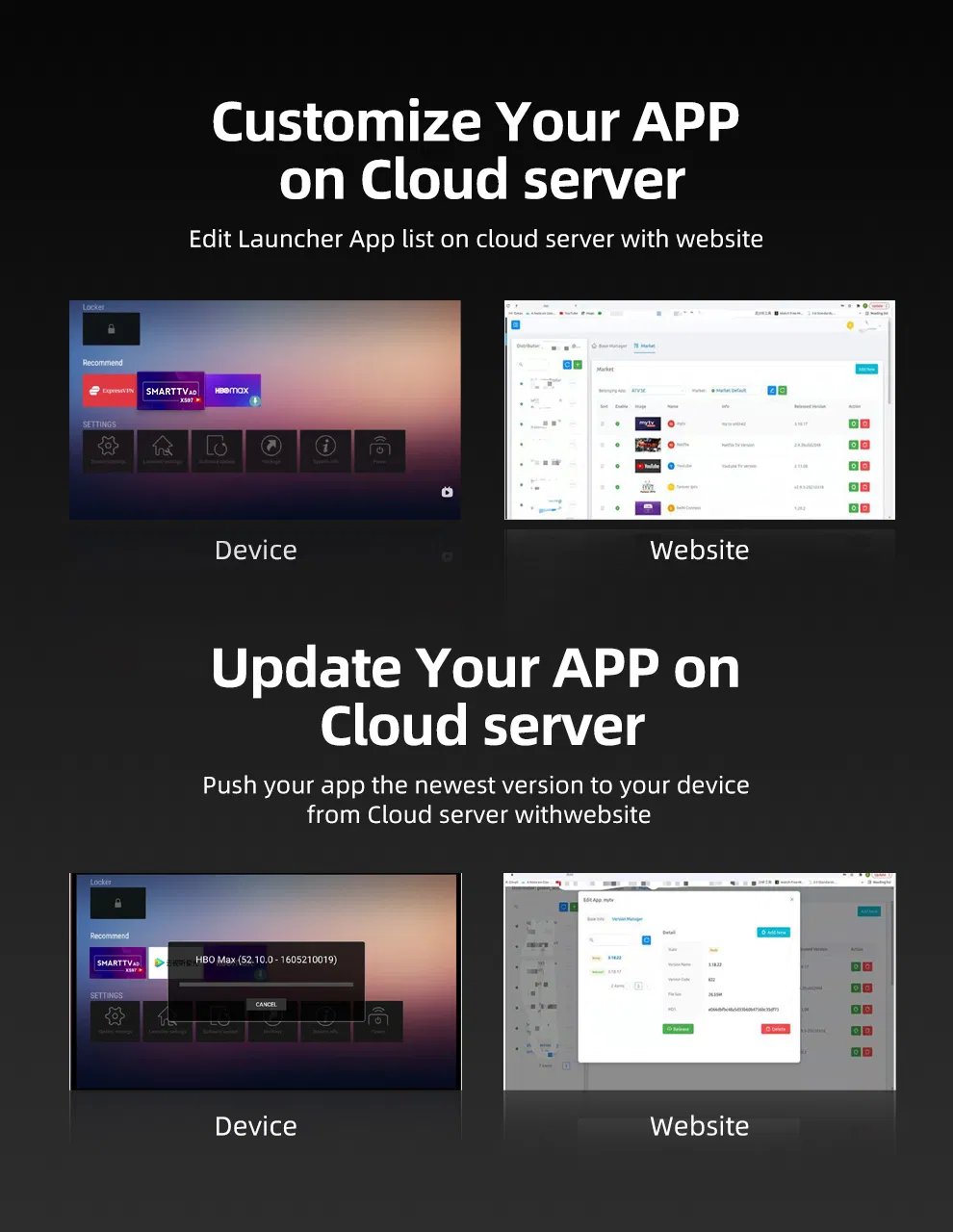

6.Provide Cloud server functon (which can support upload or delete your apk from Backstage management, check your device online usage) For 1000 piece
6.Provide Cloud server functon (which can support upload or delete your apk from Backstage management, check your device online usage) For 1000 piece

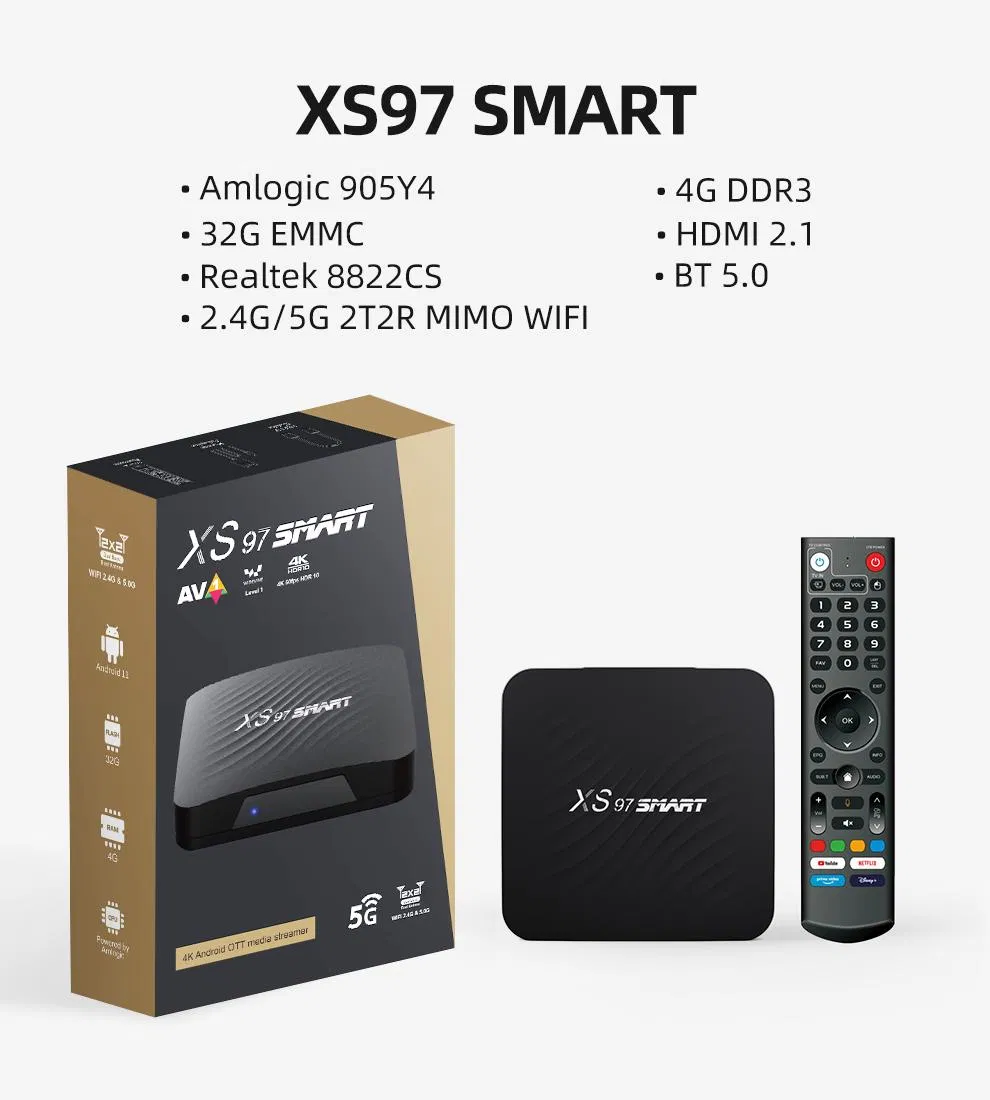

| Android 4K HDR Android TV Box XS97 SMART |
||
| V1.1 | ||
| Product Description | ||
| Quad core 64 bit AV1 4K HDR Android TV Box Android base TV system H.264 1080p 60fps Video encoding AV1/VP9/H.264/H.265 10bit HDR decoding up to 4K@60fps HDMI 2.1 max to 4K60 output |
||
| Basic parameters | ||
| System | SoC: Amlogic 905Y4 | |
| CPU: Quad-core ARM Cortex™-A35 | ||
| GPU: Mali-G31MP2 | ||
| DRAM: DDR3 4GB | ||
| FLASH: EMMC 32GB | ||
| OS: Android R (11.0) | ||
| Network | RJ45 Interface 10M/100M adaptive | |
| Build in MIMO WiFi 2T2R 2.4GHz/5GHz 802.11a/b/g/n/ac/ax + BT 5.0 | ||

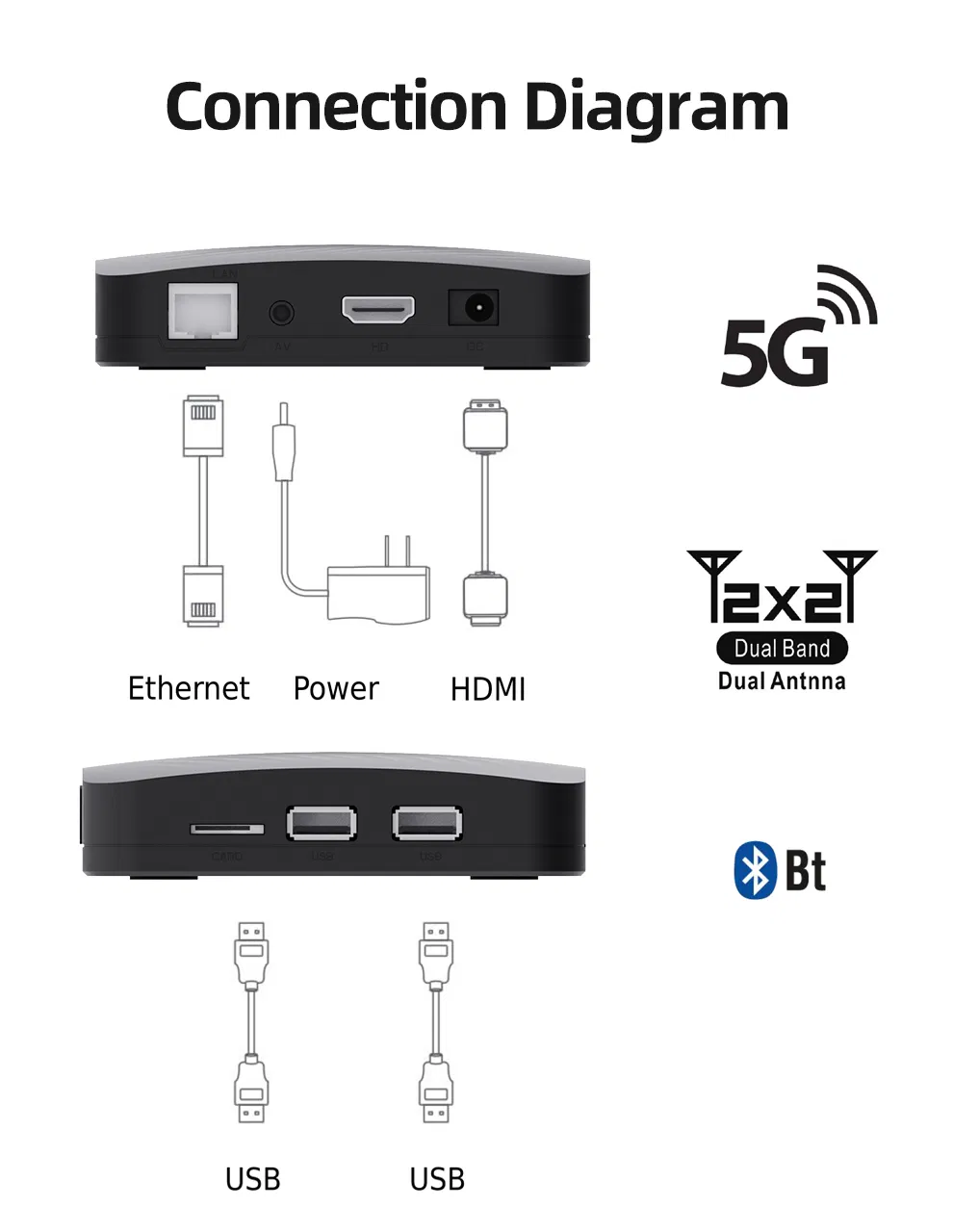

| I/O | ||
| Video Output | HDMI2.0(4K60), AV | |
| Network | RJ45, Buildin Wi-Fi antenna | |
| Peripheral Interface | USB2.0x2 | |
| Power Interface | DC 5V 2A | |
| Other Interface | LED indicato | |
| Media | ||
| Video | Decoder: AV1 MP-10@L5.1 up to 4Kx2K@60fps VP9 Profile-2 up to 4Kx2K@60fps H.265 HEVC MP-10@L5.1 up to 4Kx2K@60fps AVS2-P2 Profile up to 4Kx2K@60fps H.264 AVC HP@L5.1 up to 4Kx2K@30fps MPEG-4 ASP@L5 up to 1080P@60fps (ISO-14496) WMV/VC-1 SP/MP/AP up to 1080P@60fps AVS-P16(AVS+) /AVS-P2 JiZhun Profile up to 1080P@60fps MPEG-2 MP/HL up to 1080P@60fps (ISO-13818) MPEG-1 MP/HL up to 1080P@60fps (ISO-11172) Multiple language and multiple format sub-title video support MJPEG and JPEG unlimited pixel resolution decoding (ISO/IEC-10918) |
|
| Format: Supports JPEG thumbnail, scaling, rotation and transition effects Supports *.mkv,*.wmv,*.mpg, *.mpeg, *.dat, *.avi, *.mov, *.iso, *.mp4, *.rm and *.jpg file formats |
||
| Audio | Decoder: MPEG 1/2/2.5, Audio Layer 1/2/3, WMA Version 4/4.1/7/8/9, WMA Pro, LPCM, PCM, Vorbis, Flac, ALAC, APE, AAC-LC/HEAAC/HE-AAC v2, Real Audio, AC-3/DD+/DTS, MPEG-H |
|
| Format: MP3, WMA, WAV, OGG, M4A, MP4, AAC, APE, FLAC, ALAC, MPEG, MP1, MP2, MPA etc. |
||
| Subtitle Format | SMI, SRT, SSA, ASS,SUB, SUB+IDX, ISO Navigation | |
| Photo Format | HD JPEG/BMP/GIF/PNG/TIFF | |
| Features | ||
| Network Streaming | HTML5, RTSP, HLS, Smooth streaming | |
| DRM | Widevine Level 1 | |
| Multi-screen interactive | Miracast, DLNA and Airplay | |
| Local Media Playback | Video/Audio/Picture | |
| TV APP | Stalker/Ministra/Xtream code(4K HDR10), Google Play(TV version), Google Voice Assistant, Netflix(1080P), YouTube(4K), Prime Video(1080P), Dis-ney Plus(1080P) etc. | |
| External Storage | USB storage max to 2TB (FAT32/NTFS) | |
| System Upgrading | Upgrading via USB disk or internet | |
| Other parameters | ||
| Input Voltage | DC IN 5V/2A | |
| Power Consumption | 8W Max | |
| Operation Temperature | 0~40ºC, Humidity<95% | |
| Physical characteristics | Size: 100*100*20mm | |
| Weight: | ||
| Material | ||

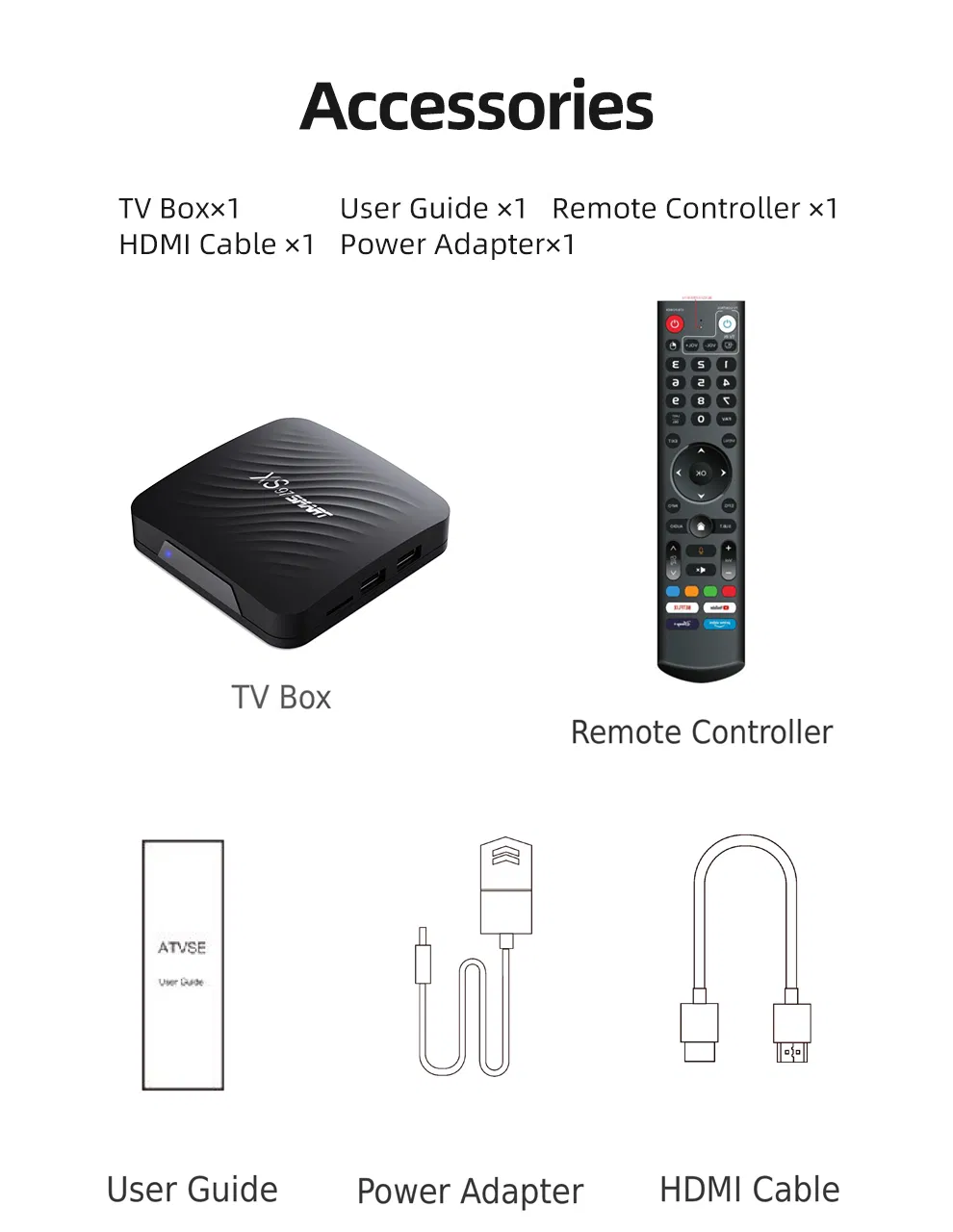

| Proposed Accessory | ||
About US

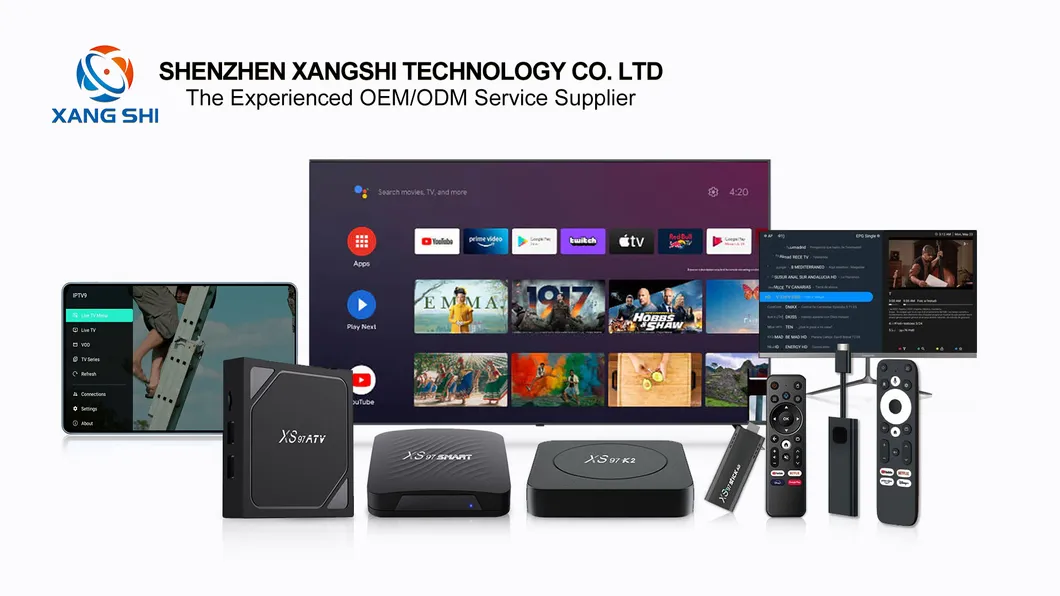

Shenzhen Xangshi Technology Co., Ltd. is a company with 12 years of experience in manufacturing set-top boxes and smart TV boxes. We have a professional team of hardware engineers and software engineers, as well as a complete set-top box production line. We have 3 SMT production lines consisting of 8 Samsung SMT machines with a daily motherboard capacity of 20,000pcs. we have 7 assembly lines with a monthly production capacity of 400,000 set-top boxes. 8 QC processes provide 100% quality check from motherboard to complete product. 6 QC teams include at least 24 skilled QC members to provide one-by-one QC service before elivery to ensure high quality for our global customers. The direct partnership with Amolgic allows us to obtain competitive pricing and full technical support from the chipset. Our team of hardware and software engineers support us in providing a variety of customized services to meet our customers' various requirements for TV box systems and hardware.
