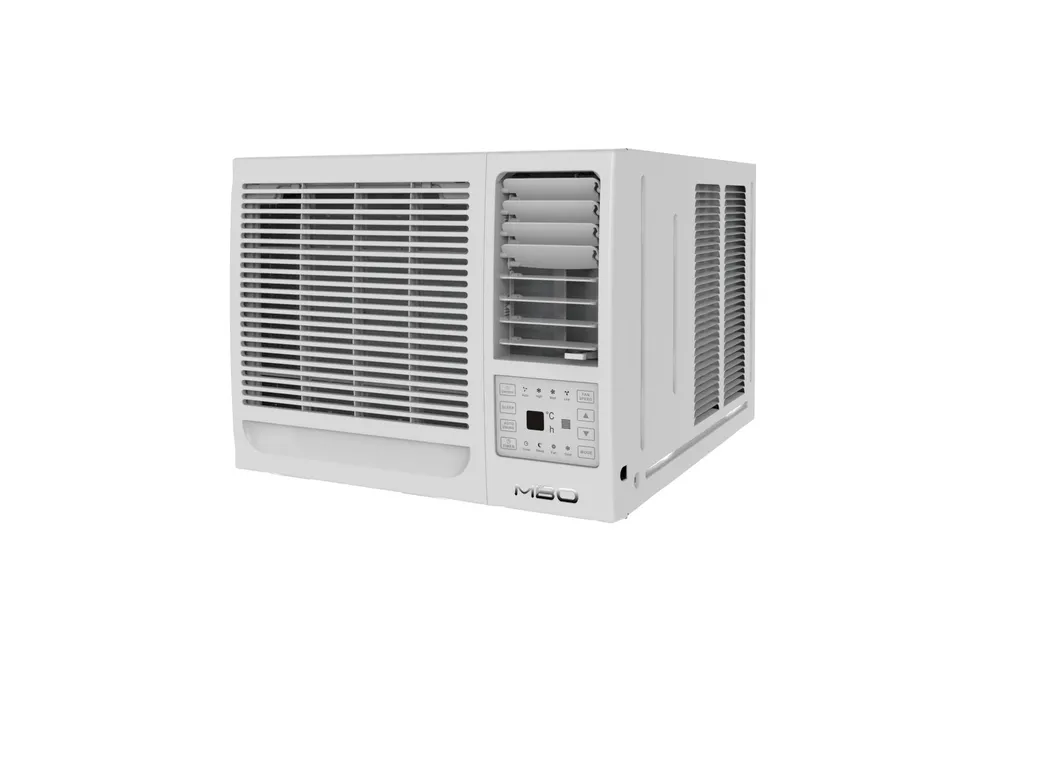

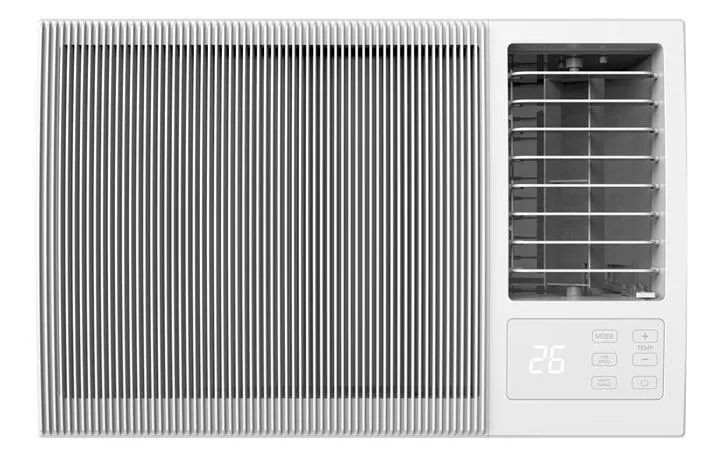

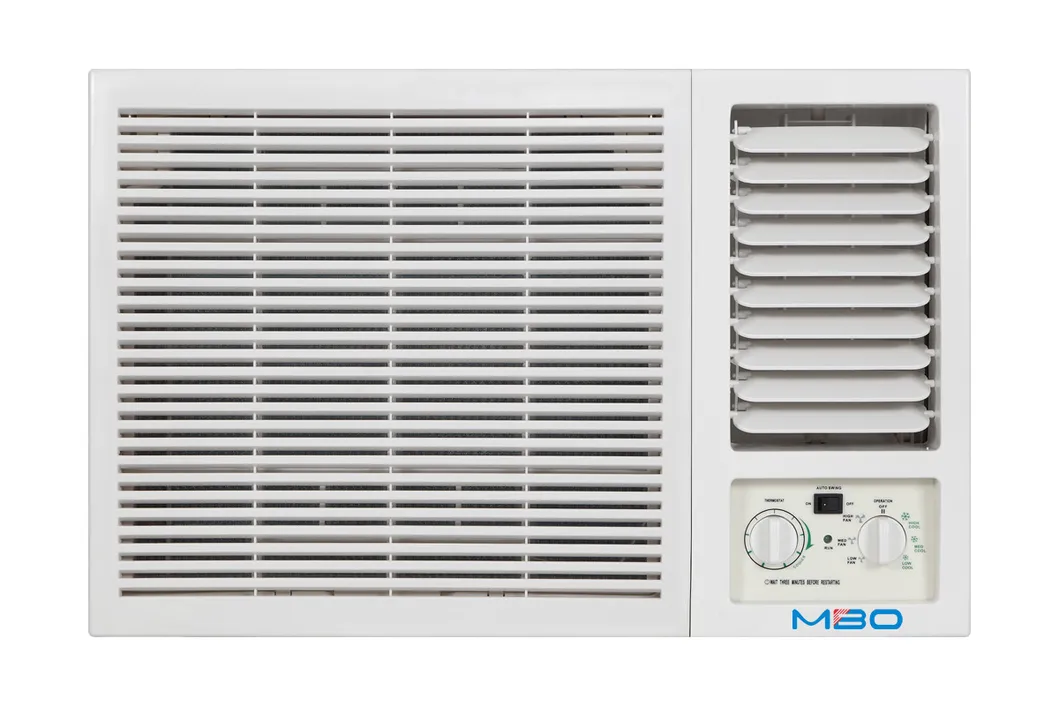

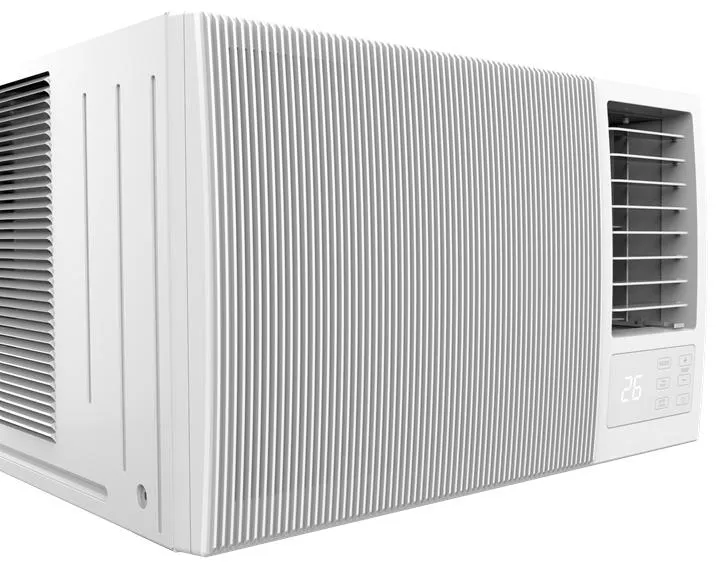

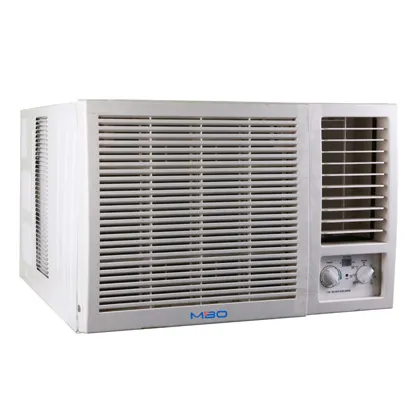

T3 Window Type Anti-High Temperature Rotary Air Conditioner
$
220.00
/set
Product Details
- Model NO.: GWM-18CA/T, 24CA/T can be offered
- Usage: Room
- Indoor Machine Noise: 36-49dB
- Certification: CE, CCC, RoHS, Son
- China Energy Efficiency Standard: Level 1
Find Similar Products
Basic info
Model NO.
GWM-18CA/T, 24CA/T can be offered
Usage
Room
Indoor Machine Noise
36-49dB
Certification
CE, CCC, RoHS, Son
China Energy Efficiency Standard
Level 1
Cooling/Heating
Cooling Only
Power Source
Electrical
Power Type
AC
Condition
New
Refrigerant
R410A
Advantage
Environment-Friendly, Stable Function
Transport Package
Standard Export Carton
Specification
18000BTU/24000btu
Trademark
Arisa or OEM
Origin
China
HS Code
94159010
Production Capacity
300000 Sets/Year
Product Description
Item name: R410a 50Hz house use window type air conditioner
Product description:
Features:
1. High efficiency: With world famous brand compressor, fast cooling and heat.
2. Strictly quality control, reliable and steady quality.
3. Higher loading qty.
4. Fast delivery time.
5. warranty period: one year for whole unit, five years for compressors.
Functions:
* Cooling capacity: 18000BTU,24000btu
*.Function: Cooling only
* Voltage: 220~240V /50H
Technical Parameters (for cooling & heating function):
Product description:
Features:
1. High efficiency: With world famous brand compressor, fast cooling and heat.
2. Strictly quality control, reliable and steady quality.
3. Higher loading qty.
4. Fast delivery time.
5. warranty period: one year for whole unit, five years for compressors.
Functions:
* Cooling capacity: 18000BTU,24000btu
*.Function: Cooling only
* Voltage: 220~240V /50H
Technical Parameters (for cooling & heating function):
| Technical Specifications | |||||
| Factory Model | GWM-18CA | GWM-24CA | |||
| Climate type | T3 | T3 | |||
| Power supply | Ph-V-Hz | 1Ph-220-240V-50Hz | 1Ph-220-240V-50Hz | ||
| Type | Cooling only | Cooling only | |||
| Control type | Mechanical | Mechanical | |||
| Cooling | Capacity(T1/T3) | W | 5150/4385 | 6300 | |
| Capacity(T1/T3) | Btu/h | 17570/14060 | 21500 | ||
| Power Input(T1/T3) | W | 1720/2100 | 2110/2560 | ||
| Rated Current(T1/T3) | A | 7.63/9.41 | 9.36/11.48 | ||
| EER (T1/T3) | W/W | 10.22/7.12 | 10.19/7.04 | ||
| Heating | Capacity(PTC) | W | / | / | |
| Power Input | W | / | / | ||
| Rated Current | A | / | / | ||
| COP | W/W | / | / | ||
| Max. input consumption(TESTED) | W | 3620 | 3620 | ||
| Max. current | A | 15.9 | 15.9 | ||
| Compressor | Model | ASG210V1SKT | ASG250V1SMT | ||
| Type | Rotary | Rotary | |||
| Brand | GMCC | GMCC | |||
| Capacity | Btu/h | 5295 | 6380 | ||
| Input | W | 1710 | 2045 | ||
| Rated current(RLA) | A | 7.95 | 9.65 | ||
| Locked rotor Amp(LRA) | A | 48 | 54 | ||
| Capacitor | uF | 45 | 45 | ||
| fan motor | Model | YKTS-100-6-2/Y6S696D008 | YKTS-100-6-2/Y6S696D008 | ||
| Brand | Welling/Broad-Ocean | Welling/Broad-Ocean | |||
| Power output | watts | 100 | 100 | ||
| Capacitor | uF | 6 | 6 | ||
| Motor speed (TU/Hi/Mi/Lo) | RPM | 900/810/780 | 900/810/780 | ||
| Indoor fan | Fan type | Centrifugal | Centrifugal | ||
| Size | 216*100 | 216*100 | |||
| outdoor fan | Fan type | Axial | Axial | ||
| Size | mm | 398*118 | 398*118 | ||
| Evaporator | a.Number of rows | 2 | 3 | ||
| b.Tube pitch(a)x row pitch(b) | mm | 21*12.7 | 21*12.7 | ||
| c.Fin material | Window/Aluminium | Window/Aluminium | |||
| d.Tube outside dia.and type | mm | 7 inner grov. | 7 inner grov. | ||
| e.Coil length x height x width | mm | 385*378*25.4 | 385*378*38.1 | ||
| Condenser | a.Number of rows | 2 | 2 | ||
| b.Tube pitch(a)x row pitch(b) | mm | 19.5*11.6 | 19.5*11.6 | ||
| c.Fin material | Window/Aluminium | Window/Aluminium | |||
| d.Tube outside dia.and type | mm | 5 inner grov. | 5 inner grov. | ||
| e.Coil length x height x width | mm | 687*409.5*23.2 | 687*409.5*23.2 | ||
| air flow | Indoor | m3/h | 750 | 750 | |
| Noise level | dB(A) | 57/62 | 59/63 | ||
| Unit dimension (W*H*D) | mm | 660*429*687 | 660*429*687 | ||
| Packing (W*H*D) | mm | 746*455*801 | 746*455*801 | ||
| Net weight | Kg | ||||
| Gross weight | Kg | 53 | 58 | ||
| Refrigerant type | R410A | R410A | |||
| Refrigerant charge | g | 630 | 680 | ||
