Source Factory Offering Customization Energy-Saving Gas-Efficient and Safe Domestic Gas Wall Mounted Boilers for Heating
$
378.00
/set
Product Details
- Model NO.: V3
- Type: Flue Type
- Energy Efficiency Grade: Two
- Interior Material: Stainless Steel
- Installation: Indoor Standard Installation
Find Similar Products
Basic info
Model NO.
V3
Type
Flue Type
Energy Efficiency Grade
Two
Interior Material
Stainless Steel
Installation
Indoor Standard Installation
Housing Material
Stainless Steel
Control Mode
PC Edition
Usage
Bathroom, Kitchen
Certification
ISO9001, CCC
Transport Package
Foam & Corrugated Carton
Specification
20-36kw
Trademark
aikeduo
Origin
China
Production Capacity
300, 000 Units/Year
Product Description
Product Description
The gas wall-mounted heating boiler first originated in Europe and has a history of more than a hundred years. Now, due to the long development history, mature technology, and good quality of European-style wall-mounted boilers, they have become the darling of the market. The full name of "wall-mounted boiler" is "gas wall-mounted heating boiler". It and the gas instant water heater are both quick heating equipment without hot water storage devices, but there are essential differences in structure.
Gas wall-mounted boilers have powerful household central heating functions, which can meet the heating needs of multiple rooms. In addition, they can also take into account the hot water bathing function. The heating function of gas wall-mounted boilers is affected by two factors: the local climate conditions and the thermal insulation status of the building.
The product is equipped with multiple safety protection measures, such as anti-freezing protection, anti-dry burning protection, accidental flameout protection, over-temperature protection, and water pump anti-lock protection. It can be connected to an indoor temperature controller to achieve personalized temperature adjustment and the purpose of energy saving. According to statistics, using an indoor temperature controller can save 20-28% of gas costs.

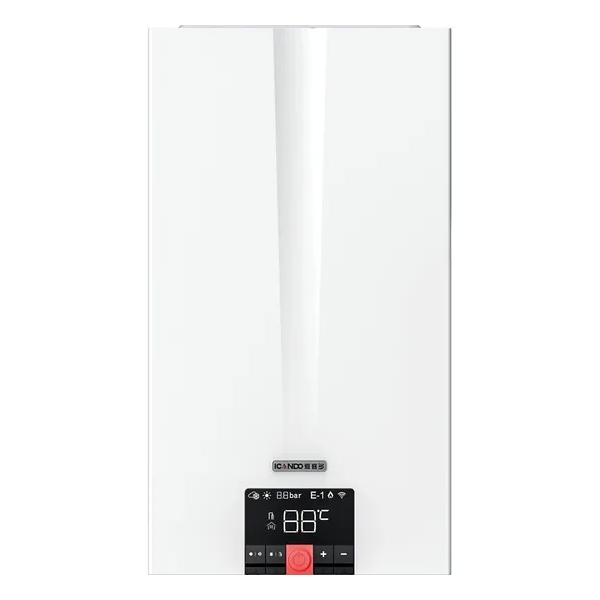

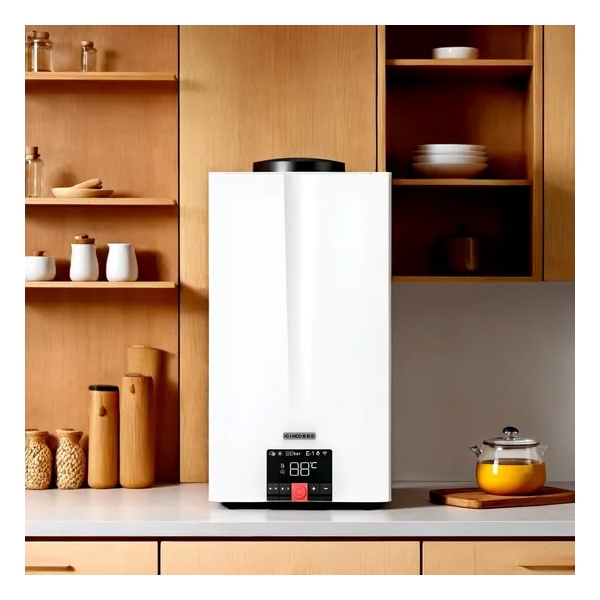

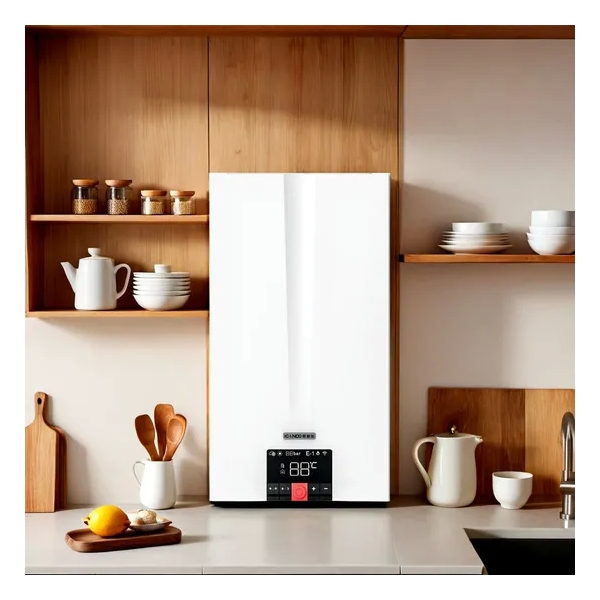

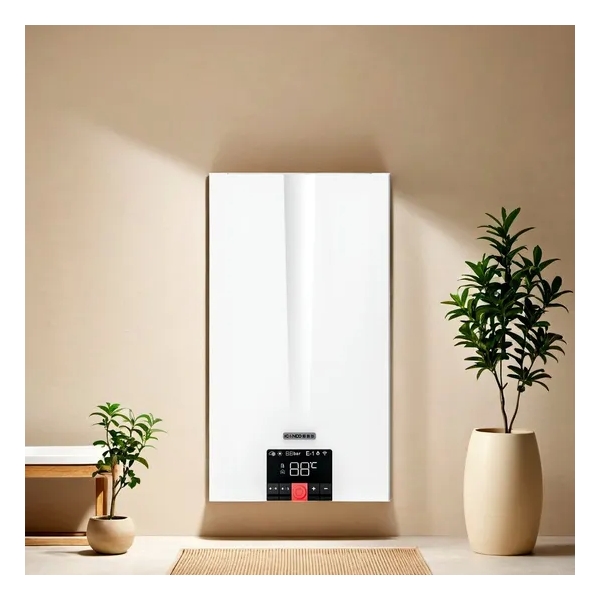

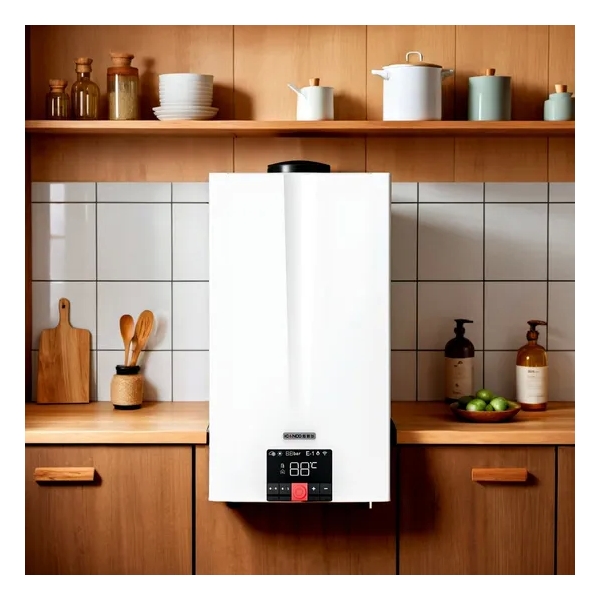

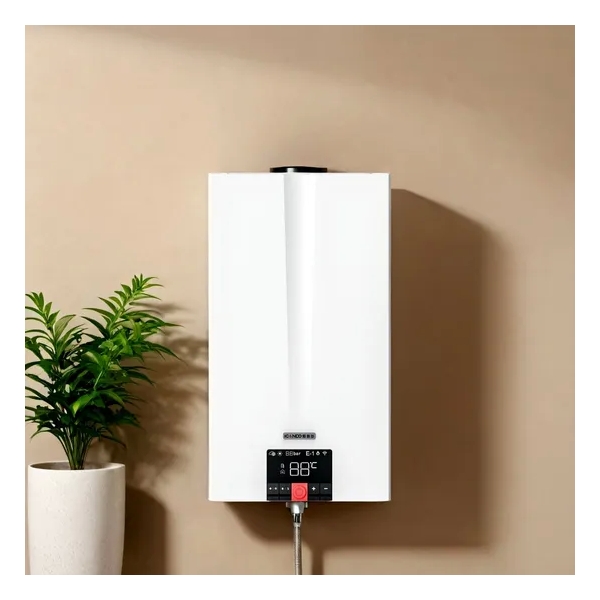

V3 Series Wall Mounted Gas Boiler
* DC variable frequency fan, low energy consumption and fewer failures
* Segmented combustion, precise temperature control, and comfortable bathing
* Wi-Fi intelligent control, one-key to warm the home (optional)
* Room temperature controller, saving 30% energy and gas (optional)
No scalding water in summer
Warmer water in winter
Cancel the air pressure switch
Low-fire segmented combustion
Precise adjustment of water outlet temperature
Precise adjustment of water outlet temperature
High-fire combustion
Precise adjustment of water outlet temperature
Precise adjustment of water outlet temperature
Cancel the air pressure switch, which makes the wind resistance stronger and the operation more stable.
Product Advantages
1. The heating time can be freely set and turned on at any time, saving the use of water heaters and saving funds and space.
2. It conforms to the principle of charging by heat, can accurately measure gas consumption, and the gas consumption can be independently controlled by users to save gas.
3. Household gas wall-mounted boilers use natural gas, liquefied petroleum gas, and city gas as energy sources, with various forms.
4. It can be installed in the kitchen, balcony, basement, or attic. Connected to radiators through indoor pipelines, it can simultaneously achieve dual supply of heating and domestic hot water.
5. After installing an indoor temperature controller, the temperature of different rooms can be adjusted arbitrarily. When no one is at home, only the temperature needs to be adjusted down to ensure that the machine and circulating water do not freeze.
6. The timer can preset the start time, and you can immediately feel the warmth of home after returning.
7. It is not restricted by the central heating time, making life more comfortable.
8. Users form a separate system, simultaneously solving the problems of heating and hot water supply.
2. It conforms to the principle of charging by heat, can accurately measure gas consumption, and the gas consumption can be independently controlled by users to save gas.
3. Household gas wall-mounted boilers use natural gas, liquefied petroleum gas, and city gas as energy sources, with various forms.
4. It can be installed in the kitchen, balcony, basement, or attic. Connected to radiators through indoor pipelines, it can simultaneously achieve dual supply of heating and domestic hot water.
5. After installing an indoor temperature controller, the temperature of different rooms can be adjusted arbitrarily. When no one is at home, only the temperature needs to be adjusted down to ensure that the machine and circulating water do not freeze.
6. The timer can preset the start time, and you can immediately feel the warmth of home after returning.
7. It is not restricted by the central heating time, making life more comfortable.
8. Users form a separate system, simultaneously solving the problems of heating and hot water supply.
Specification
Project |
L1P20-A11 |
L1P26-A11 |
L1P32-A11 |
L1P36-A11 |
Gas Type |
Natural Gas 12T |
Natural Gas 12T |
Natural Gas 12T |
Natural Gas 12T |
Rated Gas Pressure (Pa) |
2000 |
2000 |
2000 |
2000 |
Rated Maximum Heat Load (kW) |
20 |
26 |
32 |
36 |
Hot Water Capacity (L/min) (Δt=25K) |
9.7 |
12.7 |
15.6 |
17.5 |
Rated Electric Power (W) |
101 |
108 |
105 |
113 |
Reference Heating Area (m²) |
110 |
140 |
180 |
200 |
Overall Dimensions (mm) |
702*410*246 |
702*410*246 |
740*410*325 |
740*410*325 |
Reference Gas Consumption (Nm³/h) |
0.8-2.0 |
1.0-2.6 |
1.3-3.2 |
1.4-3.6 |
Company Profile
Shandong Aike Duo Thermal Energy Technology Co., Ltd. was founded in 2008 and is located at the foot of the majestic Mount Tai. It is a leading integrated gas heating service provider in China. For more than a decade, "Aike Duo" has always adhered to the corporate vision of "building the first brand of gas heating in China and becoming the best clean heating supplier in China", and is committed to the research and production of "gas heating equipment" as well as the promotion and implementation of "distributed clean heating" solutions.
Through years of sharpening, Aike Duo has always moved forward with honors and has now grown into a "national high - tech enterprise" integrating production, research, and sales. It has multiple automated production lines and inspection lines, and has transformed into an automated digital factory. The production capacity of gas wall - hung boilers exceeds 600,000 units, and the annual production capacity of various types of industrial and commercial gas boilers is 10,000 units. It is the largest distributed gas heating equipment production base in northern China.
Aike Duo pursues the green production concept of low carbon and energy conservation, and upholds the scientific outlook on development that is responsible for society, the environment, and the economy. It has successively been awarded the titles of "Energy Conservation and Low Carbon Demonstration Park" and "Circular Economy Demonstration Park". Aike Duo took the lead in obtaining the Class B boiler production qualification in the wall - hung boiler industry and currently holds more than 80 national patents and dozens of industry and national honors.
Research and Development Center
Production Workshop
Production Workshop
Our Advantages
Quality Assurance:
Professional Advantages:
Price Advantages:
The products are qualified in quality and undergo factory testing. Any product can be certified according to customer requirements.
Nearly 20 years of experience in R&D and manufacturing of gas equipment.
High-quality and affordable, providing thoughtful services for every customer.
OEM Services:
After-Sales Advantages:
Large Scale:
Tailor-made according to customer needs.
Long-term after-sales service is provided for all equipment.
Factory area: 23,025m2, production center: 18,000m2, R&D center: 8,000m2.
Certifications
Packaging & Shipping
After Sales Service
We provide comprehensive after-sales guarantee services for our products.
For faults caused by non-human factors during the warranty period, we offer free maintenance;
after the warranty period, we provide lifelong maintenance, and only charge cost fees for the services.
