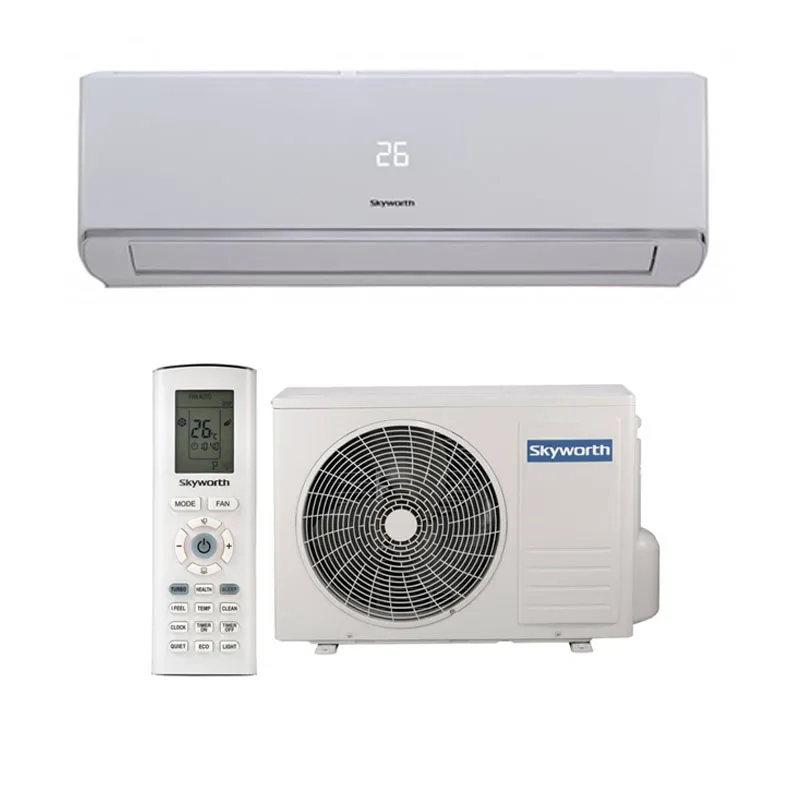

Skyworth Split Inverter Air Conditioner Wall Mounted 12K BTU Cooling Capacity
$
209.00
/set
Product Details
- Model NO.: SMVH09A-2A2A1NL
- Usage: Room
- Indoor Machine Noise: 24-35dB
- Certification: CE, RoHS, Saso
- China Energy Efficiency Standard: Level 1
Find Similar Products
Basic info
Model NO.
SMVH09A-2A2A1NL
Usage
Room
Indoor Machine Noise
24-35dB
Certification
CE, RoHS, Saso
China Energy Efficiency Standard
Level 1
Cooling/Heating
Cooling/Heating
Power Source
Electric
Power Type
AC
Condition
New
Warranty
More Than 5 Years
Cop
4
APP-Controlled
Yes
Power (W)
760
Fixed Frequency/Variable Frequency
Variable Frequency
After-Sales Service Provided
None
Capacity (BTU)
24001-30000
Eer
6.1-8.5
Application
Hotel, Commercial, Household
Transport Package
Carton
Specification
9K, 18K, 22K BTU
Trademark
Skyworth
Origin
China
Production Capacity
1000sets/Month
Product Description
| Model | - | SMVH09A-2A2A1NL | SMVH12A-2A2A1NL | SMVH18A-4A2A1NL | SMVH24A-5A2A1NL | SMVH28A-SA2A1NL | |
| Power Supply | V/Ph/Hz | 220-240/1/50 | 220-240/1/50 | 220-240/1/50 | 220-240/1/50 | 220-240/1/50 | |
| Cooling(Standard conditions) | Capacity | Btu/h | 9000 | 12000 | 18000 | 24000 | 28000 |
| Input | W | 760 | 1460 | 1940 | 2470 | 28S0 | |
| Current | A | 3.4 | 6.5 | 8.6 | 11.0 | 12.6 | |
| heatingfStandard condilions) | Capacity | Btu/h | 9500 | 13500 | 18000 | 24000 | 28000 |
| Input | W | 700 | 1300 | 1860 | 2300 | 2900 | |
| Current | A | 3.1 | 5.8 | 8.3 | 10.2 | 12.9 | |
| Seasonal Cooling | Pdesignc | kW | 2.4 | 2.8 | 4.6 | 6.0 | 7 |
| SEER | W/W | 6.1 | 6.1 | 6.1 | 7.1 | 7.1 | |
| Energy Efficiency Class | A+ + | A+ + | A+ + | A+ + | A+* | ||
| Heating(Average) | Pdesignh | kW | 2.0 | 22 | 4.1 | 5.0 | 6.4 |
| SCOP | W/W | 4.0 | 4.0 | 4.0 | 4.0 | 4.0 | |
| Energy Efficiency Class | A+ | A+ | A+ | A+ | A+ | ||
| Air Flow Volume | m3/h | 520/440/230/150 | 550/470/250/180 | 850/720/610/520 | 1200/1150/900/750 | 1200/1150/900/750 | |
| Indoor Unit | Sound Pressure Level | dB(A) | 40/36/24/19 | 41/37/25/20 | 44/40/37/34 | 48/45/40/35 | 48/45/40/35 |
| Dimension (WxH«D) | mm | 821x283x200 | 821x283x200 | 1003x310x222 | 1109x331x250 | 1109x331x250 | |
| Dimension of Carton Box (WxH*D) | mm | 895x281x350 | 895x281x350 | 1077x304x380 | 1178x344x414 | 1178x344x414 | |
| Net Weight | kg | 9 | 9 | 13 | 16 | 16 | |
| Gross Weight | 11 | 11 | 15.5 | 19 | 19 | ||
| Outdoor Unit | Sound Pressure Level | dB(A) | 52 | 53 | 55 | 61 | 62 |
| Dimension (WxH*D) | mm | 830x540x325 | 830x540x325 | 890x598x372 | 960X700X396 | 990x790x426 | |
| Dimension of Carton Box (W«H*D) | mm | 876x585x363 | 876x585x363 | 938x647x409 | 1008x742x452 | 10S4x832x479 | |
| Net Weight | kg | 27 | 27.5 | 36.5 | 43.5 | 57 | |
| Gross Weight | kg | 29.5 | 30 | 39.5 | 47 | 61 | |
| Kenigerani | - | R410A | R410A | R410A | R410A | R410A | |
| Refrigerant Charge | kg | 0.78 | 0.85 | 1.5 | 1.63 | 1.9 | |
| Connection Pipe | Outer Diameter of Liquid Pipe | mm | q>6.35 | (p6.35 | q>6.35 | (p6.35 | (p6.35 |
| Outer Diameter of Gas Pipe | mm | (p9.52 | (p9.52 | (pl2.7 | (P15.88 | <plS.88 | |
| Loading Quantity | 20 GP | unit | 105 | 105 | 75 | 54 | 44 |
| 40 'GP | unit | 224 | 224 | 159 | 116 | 92 | |
| 40 HQ | unit | 244 | 244 | 182 | 130 | 114 | |
