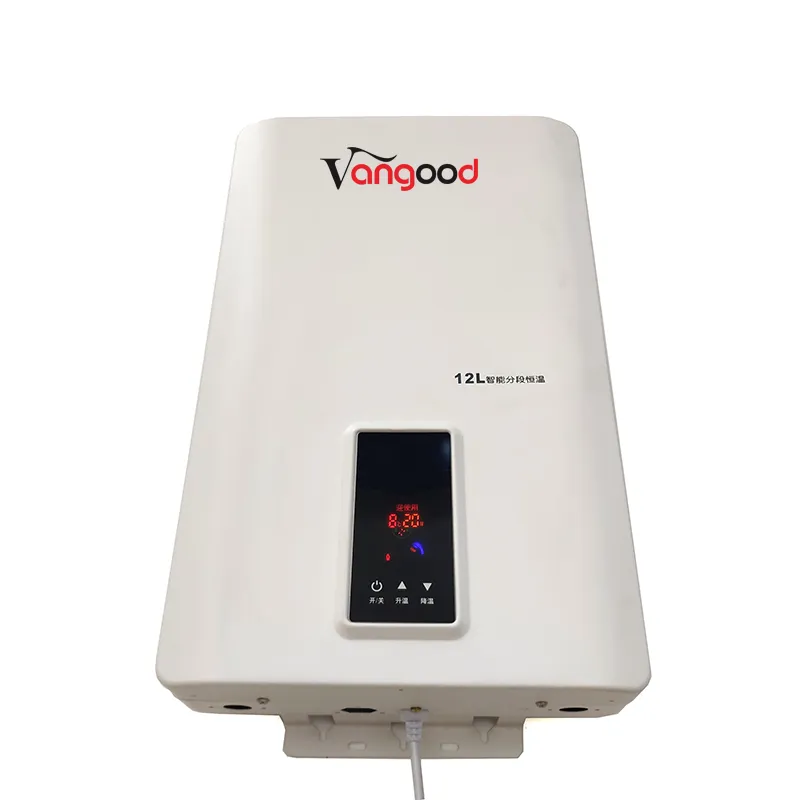

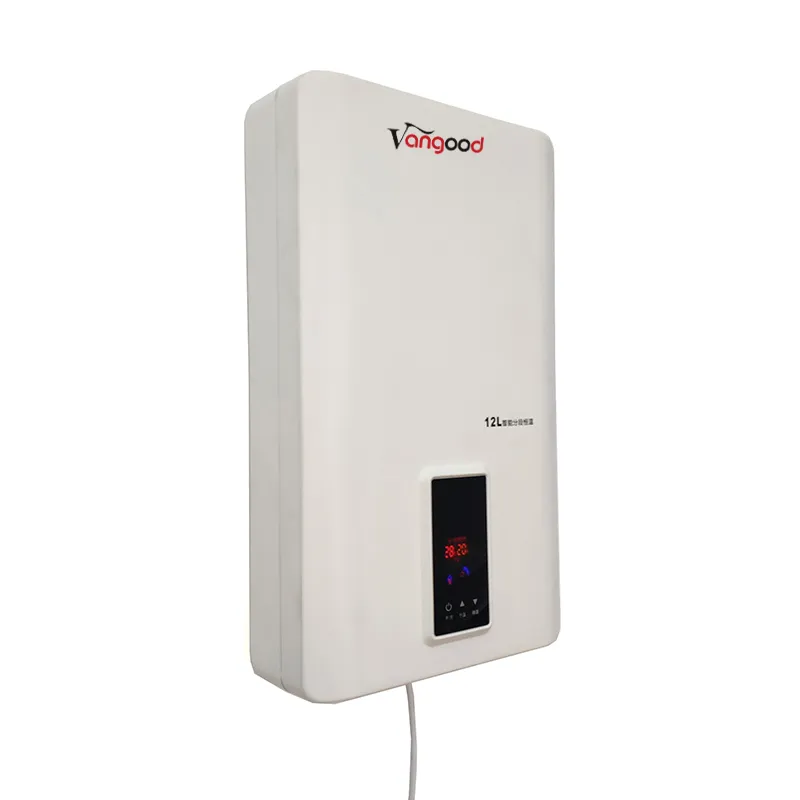

on-Demand 12L Instant Shower Water Heater Gas with Copper Heat Exchanger
$
85.00
/set
Product Details
- Type: Balanced
- Energy Efficiency Grade: Two
- Interior Material: Copper
- Installation: Indoor Standard Installation
- Housing Material: Steel
Find Similar Products
Basic info
Type
Balanced
Energy Efficiency Grade
Two
Interior Material
Copper
Installation
Indoor Standard Installation
Housing Material
Steel
Control Mode
Wire Control Edition
Usage
Bathroom, Kitchen, Swimming Pool
Certification
ISO9001, CB, RoHS
Control
Switch Control
Efficience
89%
Safety Device
Over Temperature Safety
Heat Input
30kw
Connectors Spec
R 1/2
Brand Name
Vangood
Water Pressure
0.02~0.8MPa
Exhaust Type
Forced Exhaust
Ignition
Automatic Elecrical Pulse Ignition
Transport Package
5 Layer Carton
Specification
710*430*240mm
Trademark
Vangood
Origin
Zhongshan
HS Code
8419110000
Production Capacity
50000PCS/Year
Product Description
|
Product
|
domestic natural gas combi boiler hot water heating
|
||
|
Installation
|
Wall Mounted
|
||
|
Operation
|
Mounted in kitchen, bathroom, etc.
|
||
|
Exhaust Way
|
Force Exhaust Type
|
||
|
Capacity
|
10-24L
|
||
|
Temperature Range
|
35ºC - 65ºC
|
||
|
Panel Material
|
Stainless Steel / Powder Coated / Glass
|
||
|
Color
|
Black / White / Silver
|
||
|
Water Pressure
|
0.02-0.8Mpa
|
||
|
Heat Exchanger
|
1.5-3.0KG Real Copper
|
||
|
Ignition Model
|
Automatic elecrical pulse ignition 220V AC
|
||
|
Heat Efficiency
|
≥85%
|
||
|
Use Gas Type
|
LPG / NG
|
||
|
Rated Gas Pressure
|
LPG:2800pa NG:1300pa OR 2000pa
|
||
|
Rated Voltage
|
220V/50HZ & 110V/60HZ
|
||
|
Electric Power
|
44W
|
||
|
Electrical Protection
|
IPX4
|
||
|
Noise Level
|
70 dB(A)
|
||
|
Connection Pipe Spec
|
Water Inlet: G1/2
|
||
|
Water Outlet: G1/2
|
|||
|
Gas Inlet: G1/2
|
|||
|
Rate Heat Input Power
|
20KW
|
24KW
|
28KW
|
|
Max Flow Rate (rise 25ºC)
|
10L/Min
|
12L/Min
|
14L/Min
|
|
Max Flow Rate (rise 20ºC)
|
12L/Min
|
15L/Min
|
18L/Min
|
|
Flue Duct Diameter
|
Φ100(external), Φ60(internal)
|
||
Superiority
1. Stylish Shape Design
Modern fashionable line shape designed, magnificent thin-shaped appearance.
2. High Efficiency & Energy-Saving
The heater exchanger and main burner adopt mostly advanced energy-saving and combustion technology to decrease gas consumption and burning noise.
The heater exchanger and main burner adopt mostly advanced energy-saving and combustion technology to decrease gas consumption and burning noise.
3. Low Water-Pressure Startup
The water control linkage valve makes the heater start up under low water pressure and stable water flowing under high pressure to meet the requirements of those in water shortage areas and those living in high stairs.
The water control linkage valve makes the heater start up under low water pressure and stable water flowing under high pressure to meet the requirements of those in water shortage areas and those living in high stairs.
4. Manifold Auto Protection, Lon Flame Inspection
For the sake of your safety, automatically shut down gas power under unexpectable flameout.
For the sake of your safety, automatically shut down gas power under unexpectable flameout.
5. Controller Design, Over Heating Protection
Both cold water and warm water can be properly controlled. Over 75 °C will automatically turn off.
Both cold water and warm water can be properly controlled. Over 75 °C will automatically turn off.
6. Over Water Pressure Protection Function, Anti-Freezing Protection Function.
Automatically decrease pressure under excessive high water pressure. The anti-freezing apparatus can discharge the stock water to avoid damaging machine itself by freezing under cold areas or in case of long time no use.
Automatically decrease pressure under excessive high water pressure. The anti-freezing apparatus can discharge the stock water to avoid damaging machine itself by freezing under cold areas or in case of long time no use.
What is the feature of the intdoor gas water heater?
This is the safest type of gas water heaters available in the market. The fresh air inlet comes from outside and the exhaust gasses are pushed outside. This makes it possible to mount the water heater in any (bath-) room without restrictions.
The temperature is controlled by thermostats. Automatic safety controls are fitted to the water heater to provide safe and
efficient operation.
The temperature is controlled by thermostats. Automatic safety controls are fitted to the water heater to provide safe and
efficient operation.
1. Production based on the standard of ISO9001 & ISO14001;
2. Provide 1% quantity easy broken spare parts and 1 year warranty;
3. If defect of device is caused by our quality, we can replace it;
4. 10 years manufacture & export experience that we know what you want.
Q: Are you trading company or manufacturer ?
A: We are factory, located at Dongfeng Town, Zhongshan City, China. Welcome your visit anytime!
Q: How long is your delivery time?
A: For 1st order, it is 35-45 days. For Repeat order, it is 25-35 days.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we provide samples by 1.5 times of unit price. And, this sample fee will be rebate to you during 1st mass production order.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shipment, or 100% LC at sight.
Q: What is your major product?
A: Our major product is Gas Water Heater, Electric Water Heater, Gas Hob, Range Hood, Gas Oven, and other kitchen appliances.
Q: Can you do SKD or CKD?
A: Yes, we can. We have been in cooperation with SKD/CKD customers from Vietnam, Pakistan, India, Brazil, Mexico, Turkey. The SKD/CKD format is customized.
