Basic info
Model NO.
GK9006
CPU
4
Standard
DVB-C
Function
Two-Way
Type
DVB
Processor
Ali M3711c
Transport Package
Regualar Carton Packing
Specification
148 (W) x 118mm(D) x 24mm(H)
Trademark
GOSPELL
Origin
China
HS Code
8528718000
Production Capacity
200000 PCS/Year
Product Description

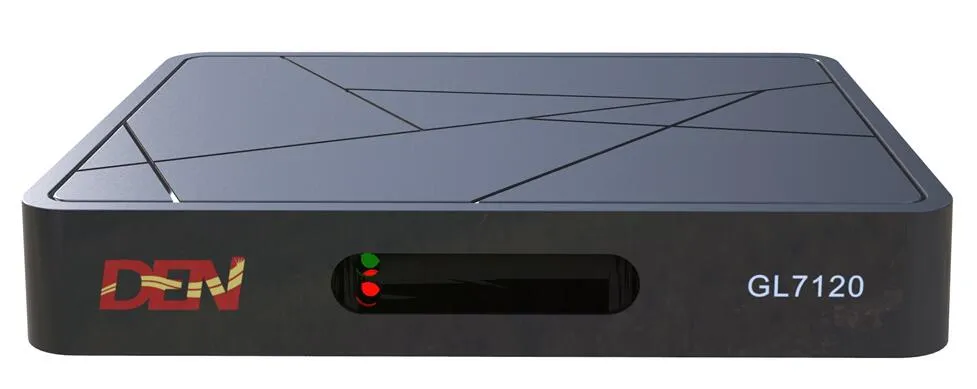

Digital DVB-C HD Digital Set Top Box Receiver
Main Features
Technical Specification
Company Profiles
Welcome to Gospell Digital Technology Co., Ltd
Main Features
- High cost effective
- MPEG-2/MPEG-4/H.264/VP8 HD video decoding
- Built-in GOSPELL® VisionCrypt™ Cardless CA
- Versatile Functions
- Support standard EPG function
- Support Program Automatic Updates
- Support for various mainstream CAS conditional access systems
- Automatic search and manual search for NIT tables
- Support program management function and parents lock control
- Support USB PVR
- Easy Deployment and Maintenance
- Support OTA software upgrade
- USB local upgrades
Technical Specification
| Architecture | |
| Processor | ALi M3711C |
| Memory | 128MB DDR3(Integrated CPU interior) |
| Storage | 8MB Flash |
| Conditional Access | Built-in GOSPELL® VisionCrypt™ CA |
| Operating System | N/A |

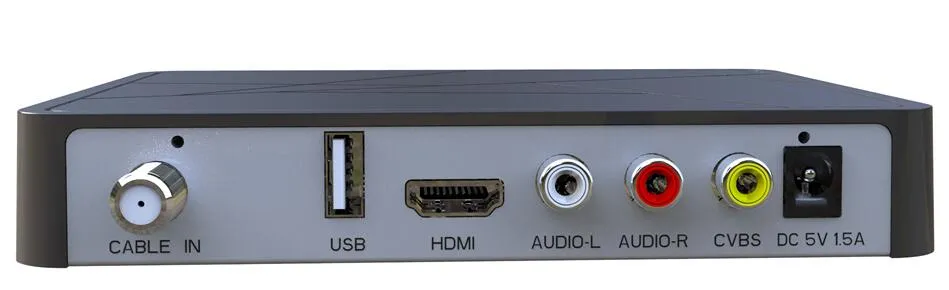

| I/O Interface | |
| RF In | 1 xRF Input (F-type, 75 ohms) |
| RF Loop Out | N/A |
| Ethernet | N/A |
| Analog Video& Audio Out | 3-in-1 RCA Connector(with composite video and stereo audio outputs) |
| Digital Video & Audio Out | 1 x HDMI 1.3 (Type A) |
| USB | 1x USB 2.0(Type A) |
| Power Supply | 1 x DC 5V Power Jack(Input) |
| RF Demodulation | |
| Input Frequency | 58-858MHz |
| Supported Standards | DVB-C (EN300429) |
| Constellations | 16/32/64/128/256 QAM |
| Input Signal Level | 36 to100 dBuV |
| Video& Audio Decoding | |
| Video Decoding | |
| Decoding Formats |
MPEG-2SD: MP@ML HD: MP@HL MPEG-4 AVC SD: MP@L3 HD: HP@L4 H264/VP8 |
| Resolution | 480i/480p/576i/576p/720p/1080i/1080P |
| Video Format | PAL/NTSC |
| Aspect Ratio | 4:3 or 16:9 |
| Audio Decoding | |
| Default Decoding Formats |
MPEG-2/4 LC-AAC MPEG-4 HE-AAC |
| Optional Decoding Formats | AC3/EAC3/OGG |
| Operation Mode | Stereo or Mono |
| Power Supply | |
| Operating Voltage | AC power adapter with 90 to 300V, 50/60Hz AC input, +5V@1.0A DC output |
| Power Consumption | ≤5W (Max.) |
| Environmental | |
| Operating Temperature | 0ºC to 40ºC(32ºF to 104ºF) |
| Storage Temperature | -20ºC to 70ºC(-4ºF to 158ºF) |
| Operating Humidity | 90%, non-condensing |
| Mechanical | |
| Product Dimensions | 148 (W) x 118mm(D) x 24mm(H) |
| Product Weight | Approx. 0.3Kg |
Gospell Digital Technology Co., Ltd.(Stock Code: 002848) was established in 2001, with the registered capital of RMB167.15 million.
As the product manufacturer, systems integrator and technology service providers, GOSPELL has already ranked in the top of the global DTV market.
GOSPELL has an R & D team consists of many industry professionals with rich experience of technology development and process improvement.
After years of development, our company has already built more than 300 cable and terrestrial DTV systems for domestic customers.
So far has built more than 200 Terrestrial and Cable Digital TV systems in over 60 countries in Asia, Africa, Latin America, Europe, etc.
FAQ
Q1: How to get a sample?
A: Sample order is acceptable. After price confirmation, you can require for samples to check our quality. If you need samples, we will charge for the sample and freight cost. The sample fee will be refunded if you place order.
Q2: What about the lead time?
A: In general, the lead time is about 25 to 35 days. But please confirm the exact delivery time with us as different products and different quantity will have different lead time.
Q3: How about the packing and shipping?
A3: Normally, we have carton for packing. If you have any other special requirements, please feel free to contact with us.
Q4: How about the OEM/ODM services?
A4 : We provide all kinds of OEM/ODM services ,
For example: Logo print on casing ,Customized packing, Software Customization. Please contact us to check the detail things before placing order.
Q5: How about the payment terms?
A5: We accept 30%T/T in advance, the 70% T/T balance before the delivery.
L/C, Money Gram and Western Union are also available.
Q6: How about warranty and procedure?
A6: Warranty time is 12 months. If you have any problem, please contact us in time, we will help you to resolve
the problem.
