Basic info
Model NO.
MP11
Brightness
>2500 Lumens
Working Principle
DLP
Contrast
500:1
Transport Package
OEM
Specification
8x8x2.8cm
Trademark
OEM
Origin
Shenzhen
Production Capacity
5000PCS/Month
Product Description
50 Lumens Four-corner DLP Smart Projector
Parameters
| Projection Specification | |
| Projection Technology | DLP(0.2"DMD) |
| Display Chip | RGB LED OSRAM Q6 |
| Light Life | Up to 20,000 hours |
| Light Luminance | 55 Lumens |
| Light Type | LED |
| Standard Resolution | WVGA 854*480 |
| Projection Area | 30-120 inch |
| Contrast | 500:1 |

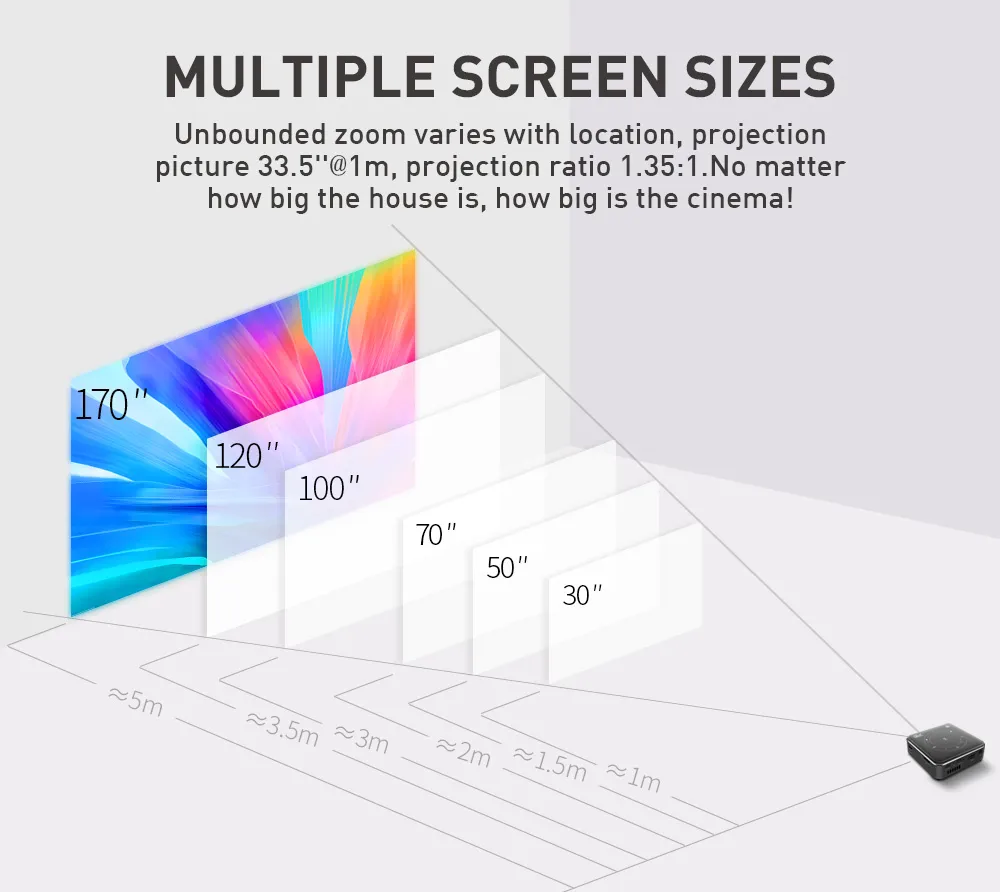

| Projection Ratio | 1.35:1(33.5 inch@1M) |
| Distortion | <1.0% |
| Luminance Uniformity | >85% |
| Projection Distance | 1-5m |
| Aspect Ratio | 16:10 |
| Focus mode | Manual focus |

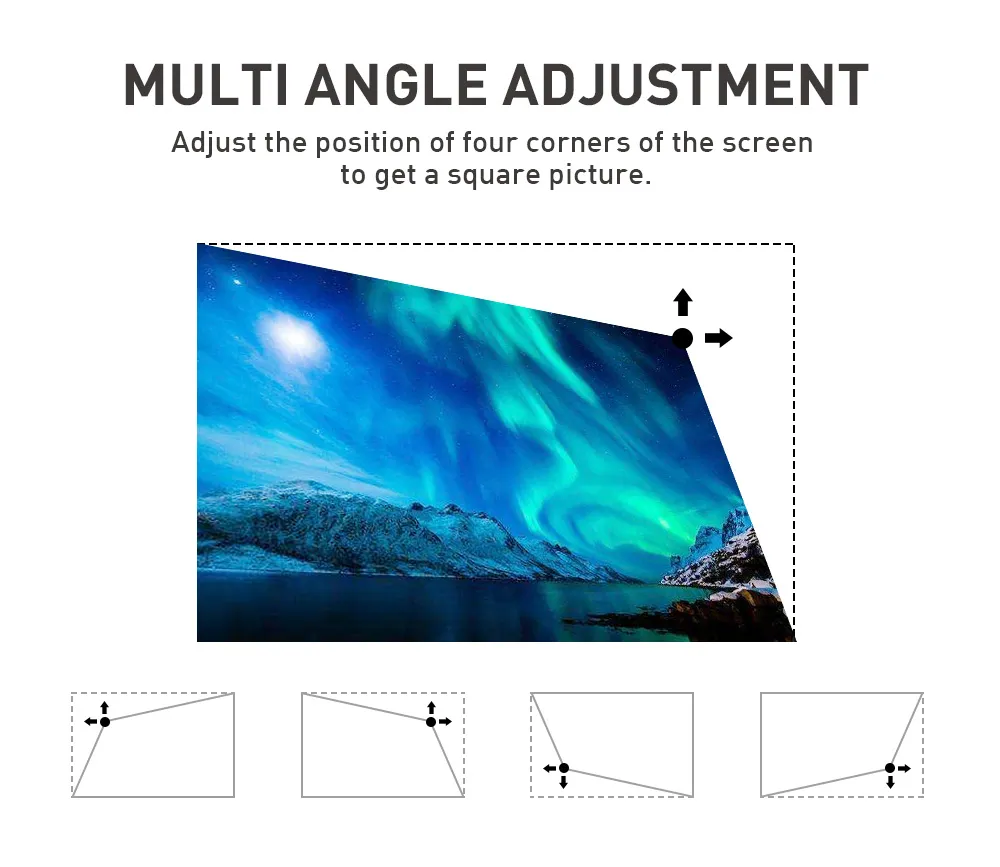

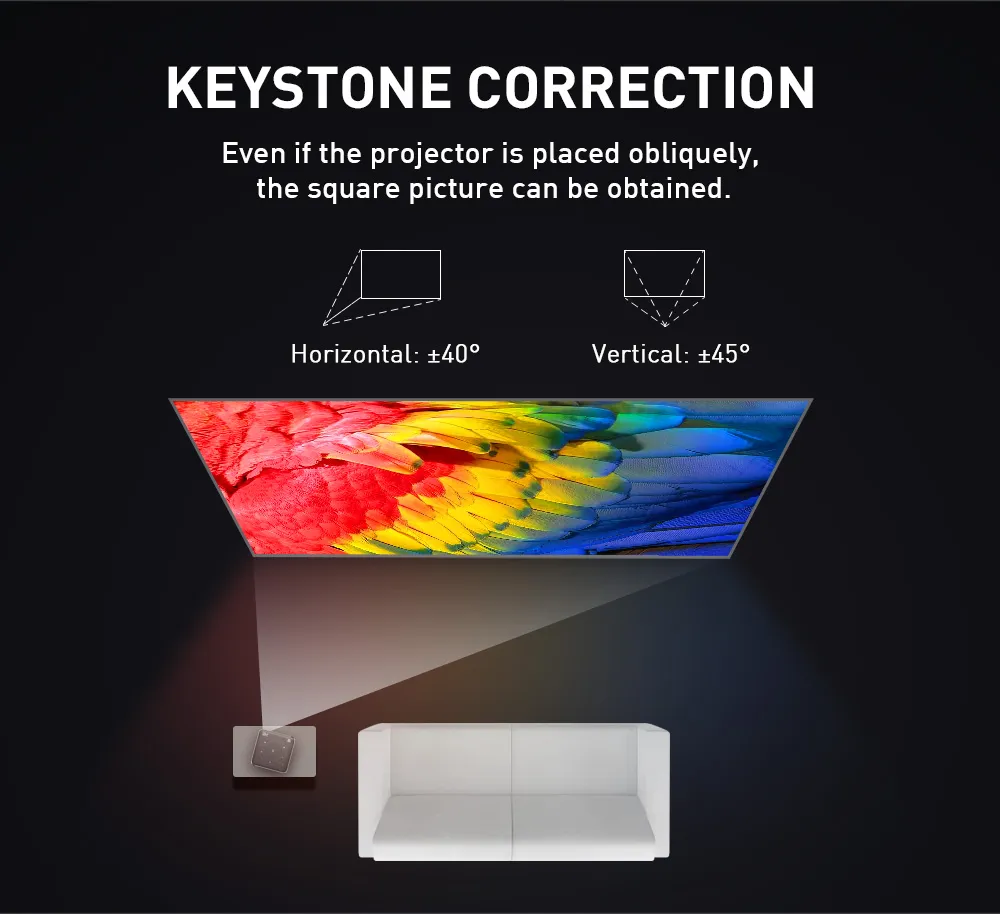

| Keystone Correction | Vertical ±45 degree,Horizontal ±40 degree,Multi angle adjustment |
| Projector Character | Interaction |
| Projection Mode | Front Projection |
| Offset function | NO |
| 3D | YES |
| System Parameters | |
| Screen Mirror | Airplay/MiraCast |
| OS | Android 9.0 |
| CPU | T972(Amlogic) |
| Basic Frequency | Quad Core ARM Cortex-A55 CPU |
| GPU | ARM Mali-G31 MP2 GPU |
| Buffer Memory | 2GB/4GB LPDDR4 |
| Memory | 16GB/32GB EMMC |
| WIFI | 2.4G/5G |
| Bluetooth | BT 4.2 |
| Basic parameters | |
| Built-in Battery | 3000mAh 3.7V 11.1Wh |
| Usage time | work for about 1.5 hours |
| Video Support(up to 4k) | VP9-10,H.265,H.264,MPEG-4,WMV/VC-1,MPEG-2,MPEG-1,RealVideo 8/9/10 etc. |
| Audio Support | MP3,WMA,MP2,OGG,AAC,M4A,MA4,FLAC,APE,3GP,WAV |
| Image Support | Supports variety of image formats browsing (jpg, png, bmp etc.) |
| Extended Storage | Support TF Card and Hard Disk |

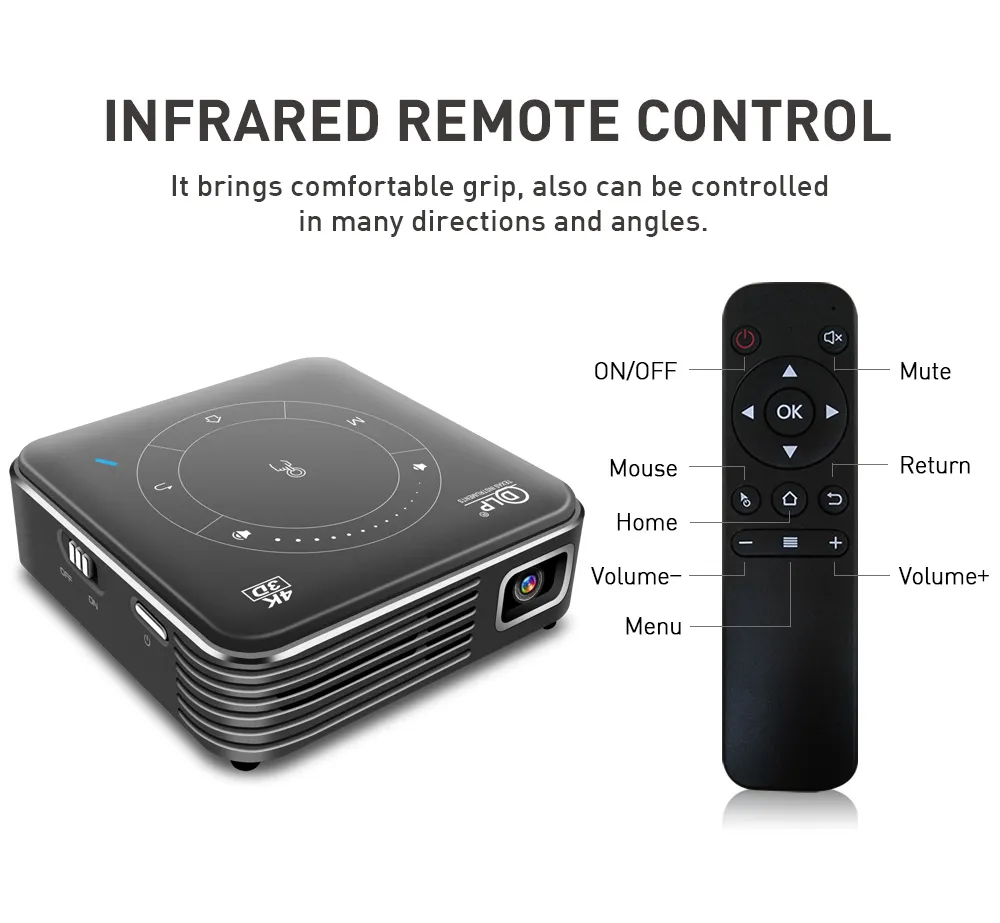

| Remote Control | Support(IR) Infrared and 2.4G wireless control |
| Built-in speaker | one 1W speaker |
| Light machine Consumption | 3W |
| Whole Power Consumption | 8W |
| Power Performance | AC100-240V,50/60Hz DC 5V 3A |
| Interface | 1*TF Card: Max 32GB |
| 1*HDMI: HDMI Input 1.4 | |
| 1*USB: USB 2.0 Support USB hard disk data read | |
| 1*Earphone: Audio output, 3.5mm joint (can connect with earphone or speaker box) | |
| 1* MICRO USB input: DC 5V 3A & OTG | |
| Package | |
| Colour | Gray(2GB+16GB) / Black(4GB+32GB) |

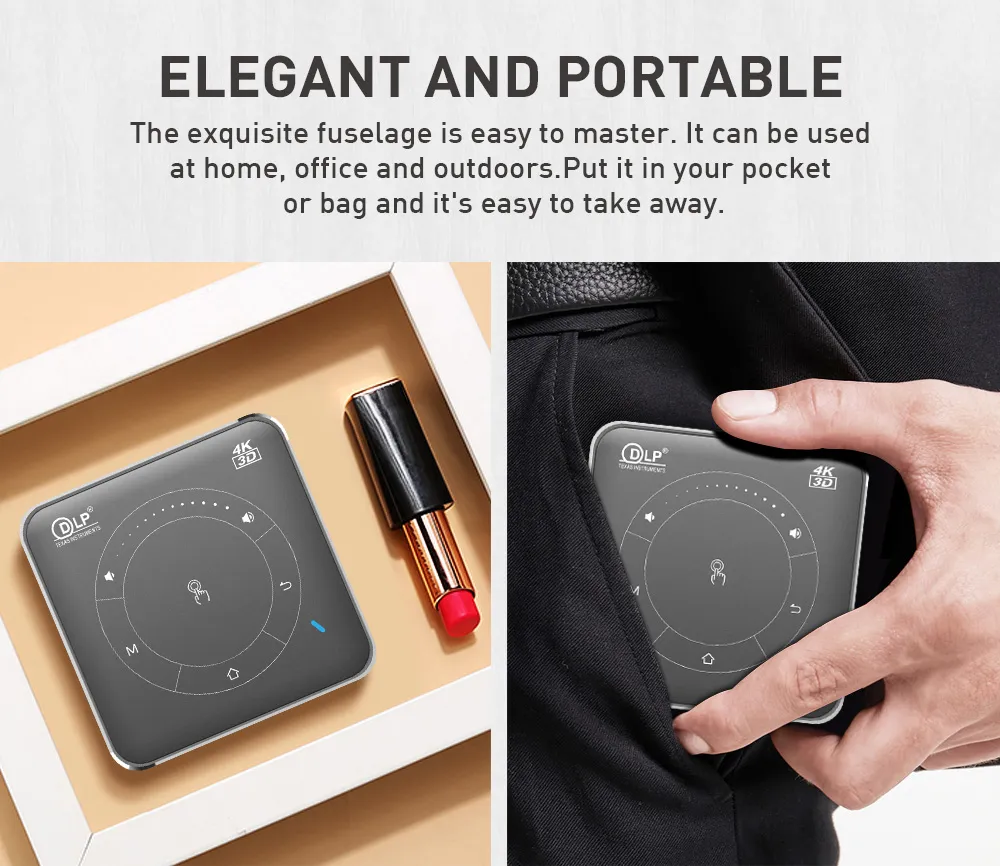

| Net weight | 188g |
| Dimension | 80*80*28mm |
| Gift Box weight | 580g |
| Gift Box Size | 145.5*105*84mm |
| Carton box weight | 6.14kg (10pcs) 12.1kg (20pcs) |
| Carton box size | 445*165*230mm (10pcs) 445*310*225mm (20pcs) |
Features

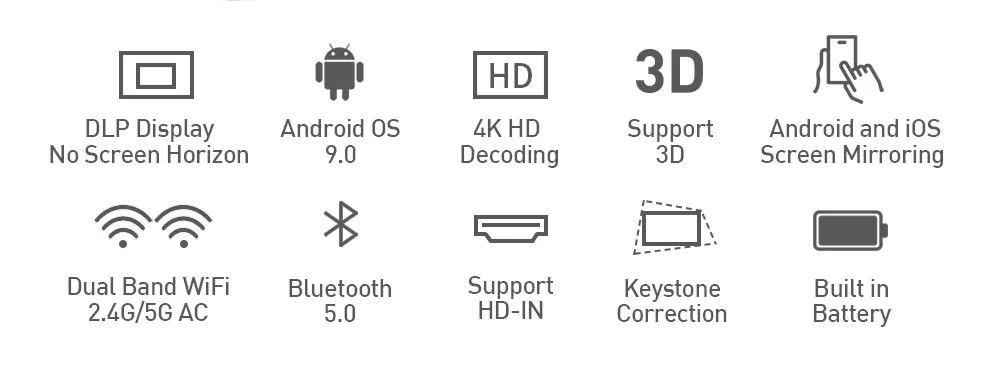

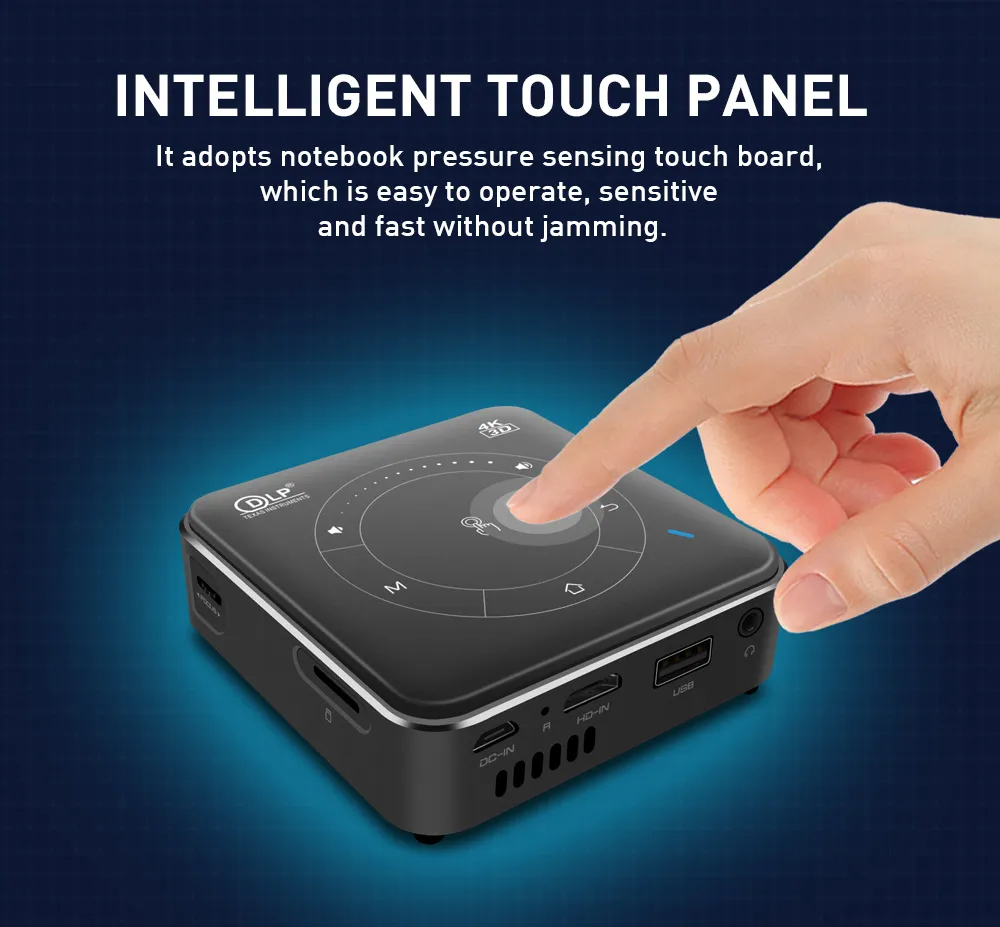

DLP 50 lumens; Android 9.0; 3D/4K decoding HDMI input; 2.4/5G wifi; up and down trapezoid automatic correction + four corner correction + zoom; Android&IOS wireless same-screen button panel, metal middle frame
Product show
