Chile Forced Type Gas Water Heater Bathroom Shower RV Sauna SPA
$
39.00
/set
Product Details
- Model NO.: GWH-Q2
- Type: Forced Exhaust
- Energy Efficiency Grade: One
- Interior Material: Copper
- Installation: Outdoor Standard Installation
Find Similar Products
Basic info
Model NO.
GWH-Q2
Type
Forced Exhaust
Energy Efficiency Grade
One
Interior Material
Copper
Installation
Outdoor Standard Installation
Housing Material
Stainless Steel
Control Mode
Wire Control Edition
Usage
Bathroom, Kitchen
Certification
ISO9001, CB, CCC, CE, RoHS, SASO
Warranty
12 Months
Exhaust Way
Forced Type
Heat Exchanger
1.5kg~2.4kg
Valve
Low Water Pressure Startup
Ignition
Auto Pluse
Transport Package
Carton
Specification
590x380x140
Trademark
OEM
Origin
Shunde, Foshan
HS Code
8419110000
Production Capacity
30000PCS/Month
Package Size
71.50cm * 43.00cm * 21.00cm
Package Gross Weight
12.800kg
Product Description

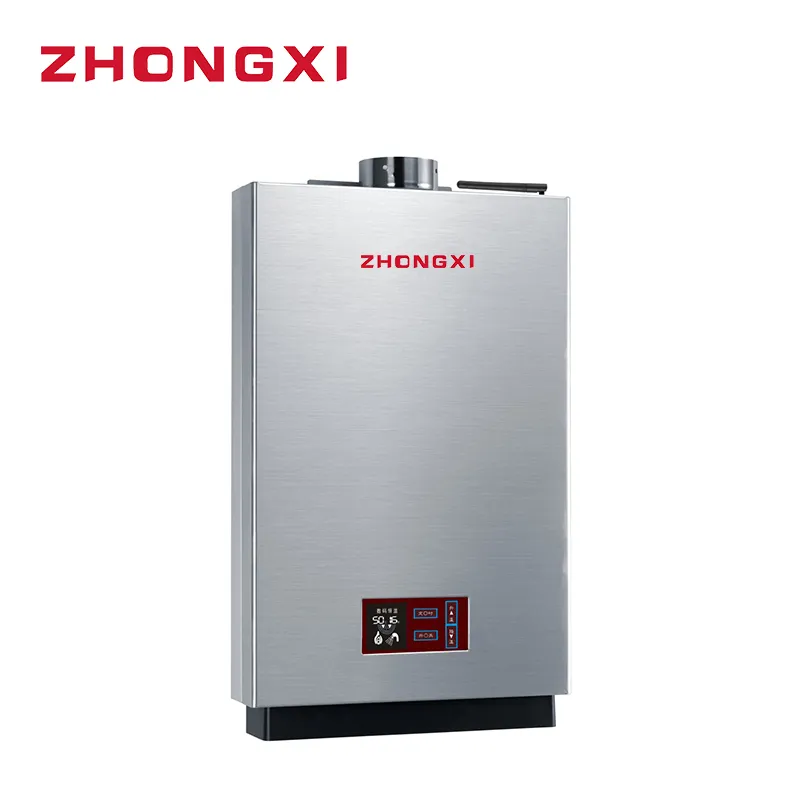

Chile Forced Type Gas Water Heater Bathroom Shower RV Sauna SPA
Technical Data:
|
Product Name |
INSTANTANEOUS GAS WATER HEATER (Ltr/min)ΔT=25K |
||||||
|
Gas Type and Pressure |
Y/L.P.G 2800Pa |
T/N.G 2000Pa |
|||||
|
Storage / Tankless |
Instant / Tankless |
||||||
|
Heating status |
Heating≤10seconds Stability ≤10seconds Over Temperature <=2 |
||||||
|
Installation |
Wall Mounted |
||||||
|
20M timer- LCD - shower-ODS |
Optional |
||||||
|
Thermos Efficiency |
>=84% |
||||||
|
Ignition Type |
Electrical Pulse Ignition with two ignition pins |
||||||
|
Vent Type |
Flue exhaust automatic gas discharge |
||||||
|
Exhaust Pipe Diameter |
5L-7L |
8L-12L |
14L |
16L |
|
||
|
Φ90 |
Φ110 |
Φ120 |
Φ130 |
|
|||
|
Power Supply |
DC Battery:2*1.5v |
||||||
|
Water Pressure Range |
0.025MPa-0.8MPa/0.25bar~8bar |
||||||
|
Connection Pipe |
Gas inlet |
G1/2" 9.5~11.5mm |
|||||
|
Water inlet |
G1/2" G3/4" |
||||||
|
Water outlet |
G1/2" G3/4" |
||||||

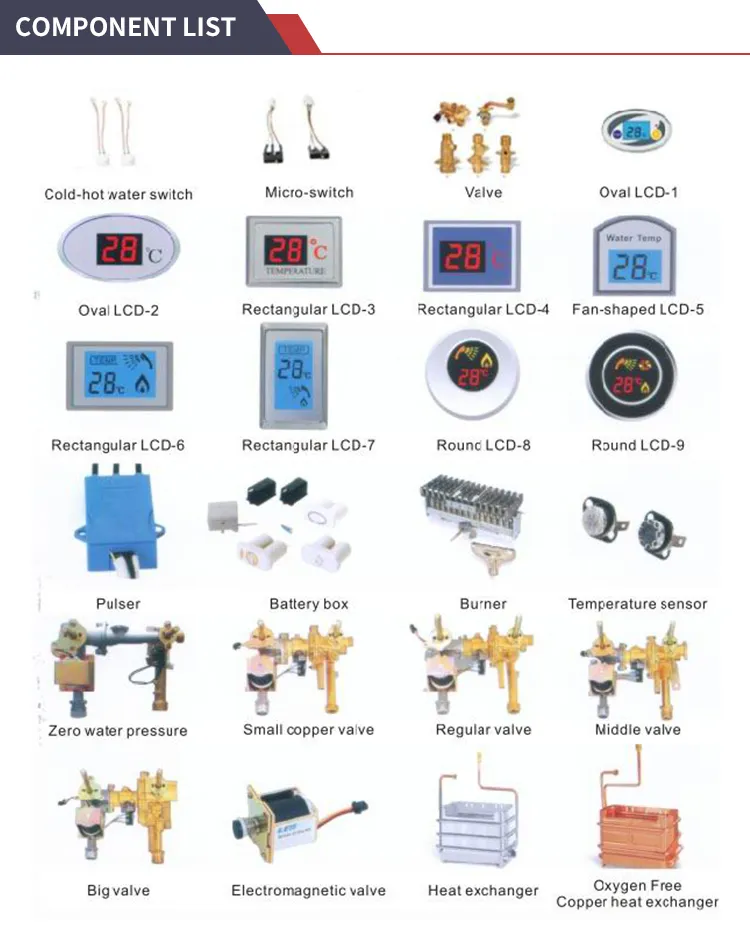

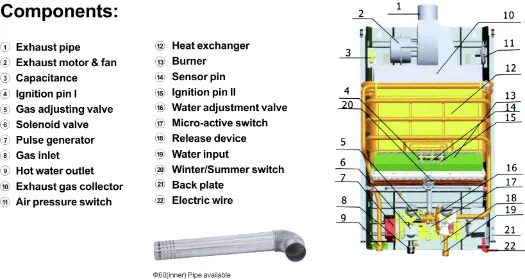

Component List

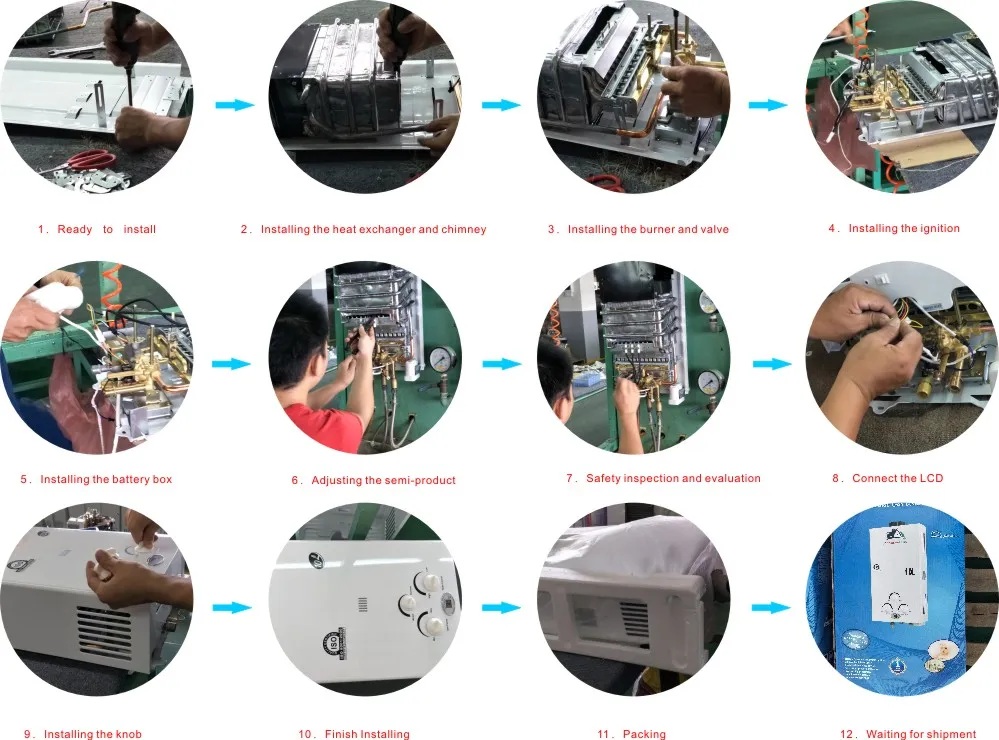

How is the product production?

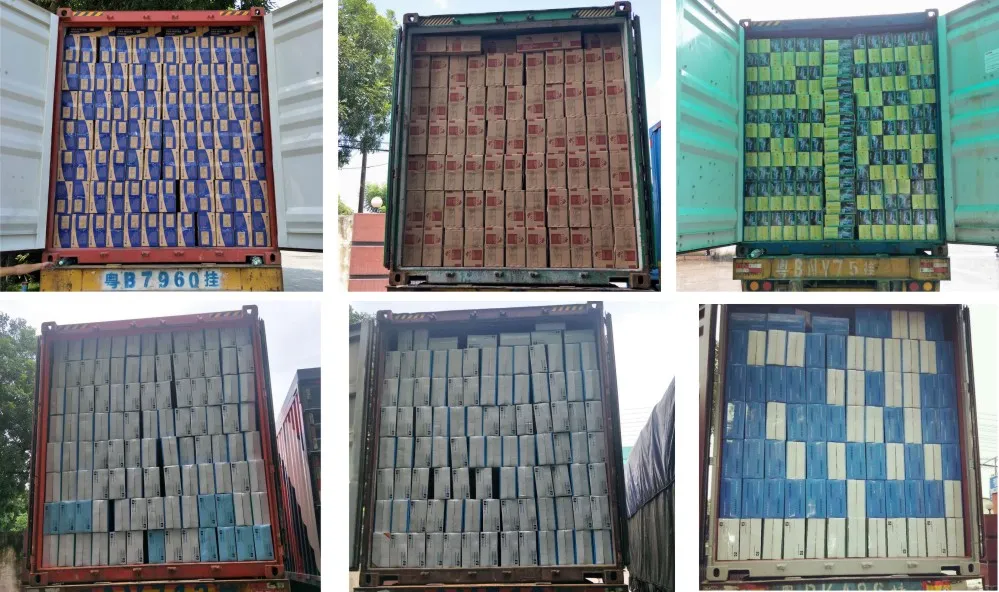

How safety of our packing and loading?
1. 1pc per carton box
2. Carton box is 5 layers paper
3. The foam put on the left side & right side at the carton box
4. Master carton is optional
How is our company looking?

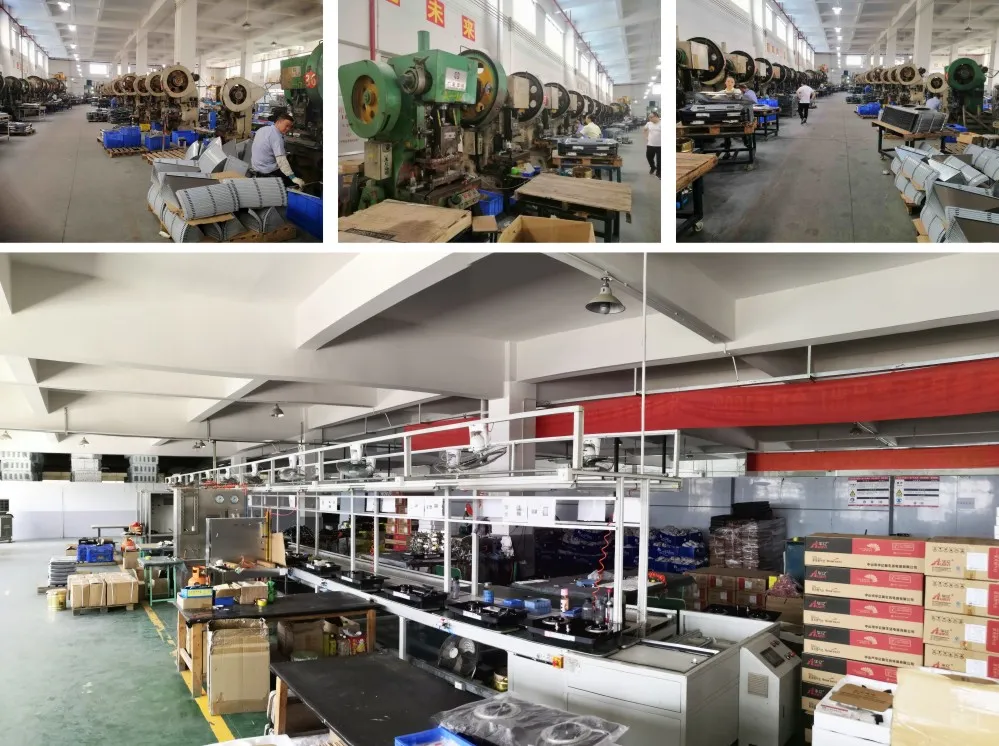

Our Workshop:

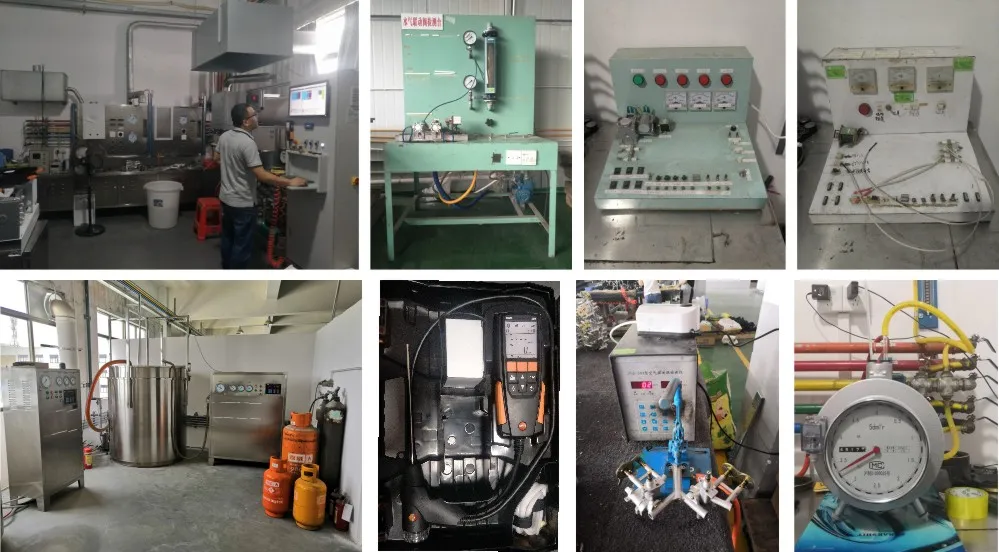

How we test?
Online 100% double test (Electrical + General performance)
Gas leakage and flame stability will be tested strictly.
Q1: Are you the manufacturer or trading company?
A:We are the manufacturer with nearly 30years home appliances manufacturing experiences.
Q2: Can we have our logo or company name to be printed on your products or the package?
A: Welcome OEM, CKD, SKD, Finished Product.
Q3: Can l get samples?
A:We can supply sample for checking, you can discuss the details with the sales.
Q4: How long will take for mass production?
A:Usually 25-45 days depending on the products category.
Q5: What certificate can you provide?
A:CE,CB,GS,ETL,SAA,KC,ROHS,REACH,LFG Bare available here.Please check the details with sales.
Q6: Can I visit your factory?
A:Do welcome your visiting. Please contact with the sales for the pick-up service.
