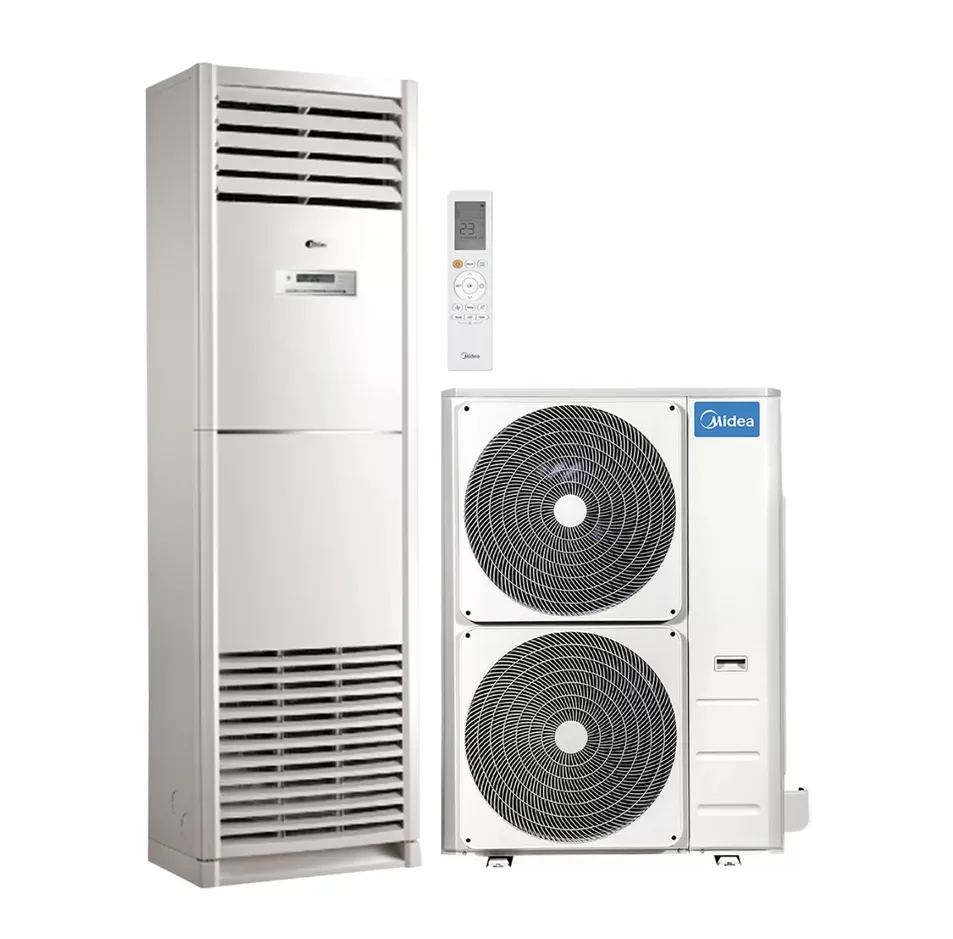

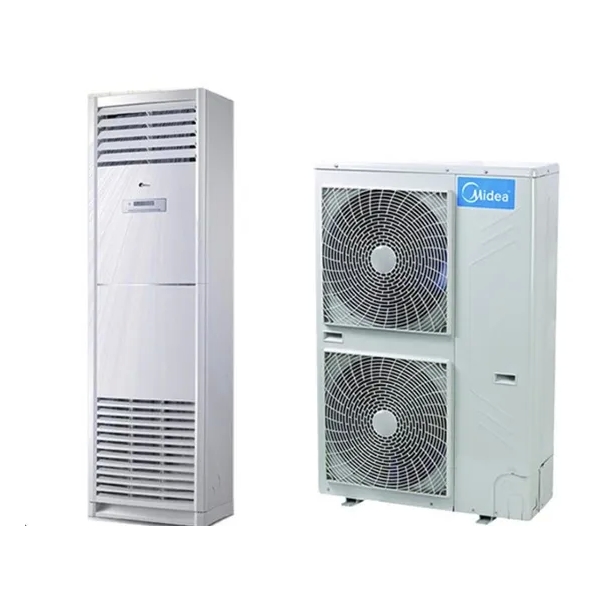

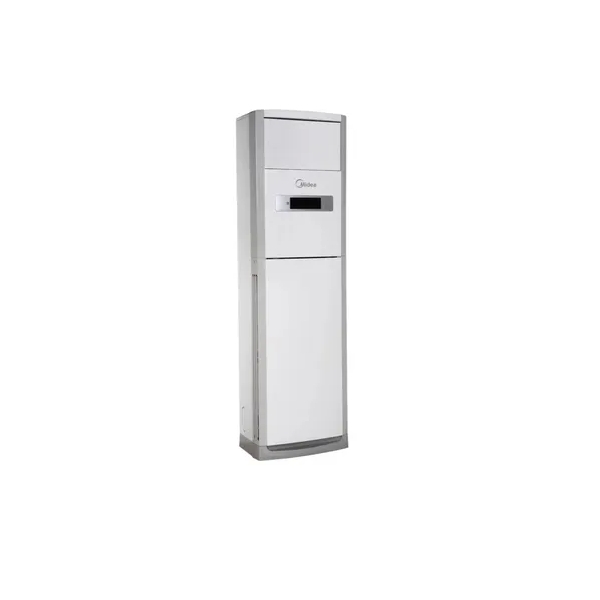

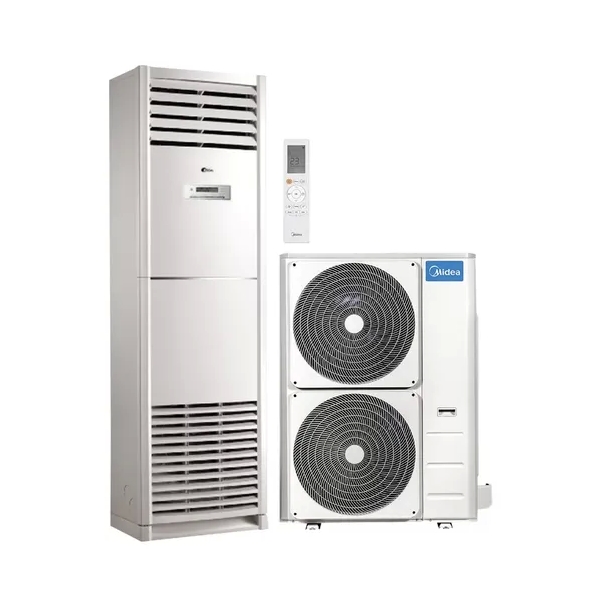

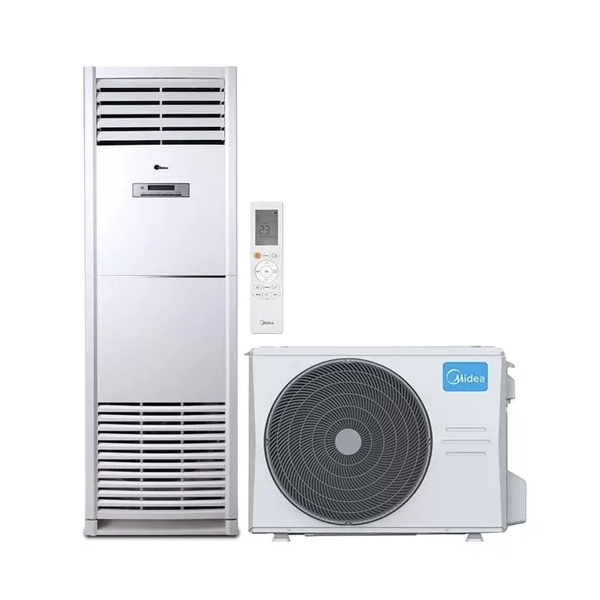

Indoor Model Name |
MFTJ-36HRN1-Q |
MFJ-48ARN1-R |
MFM-50ARN1-RB4WJ1 |
|

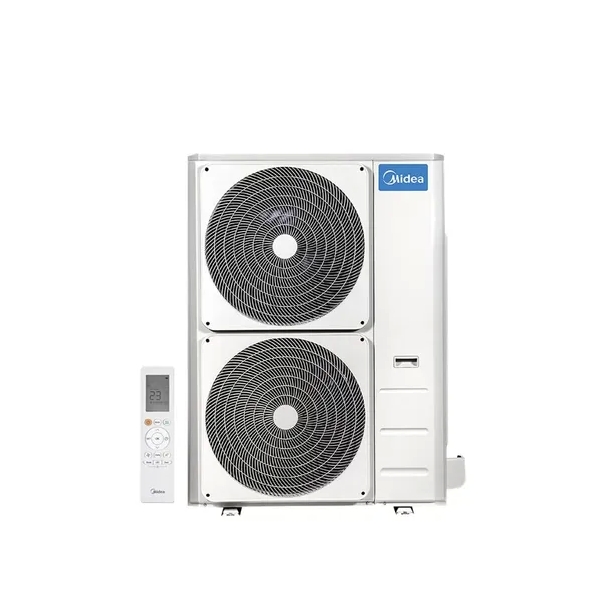

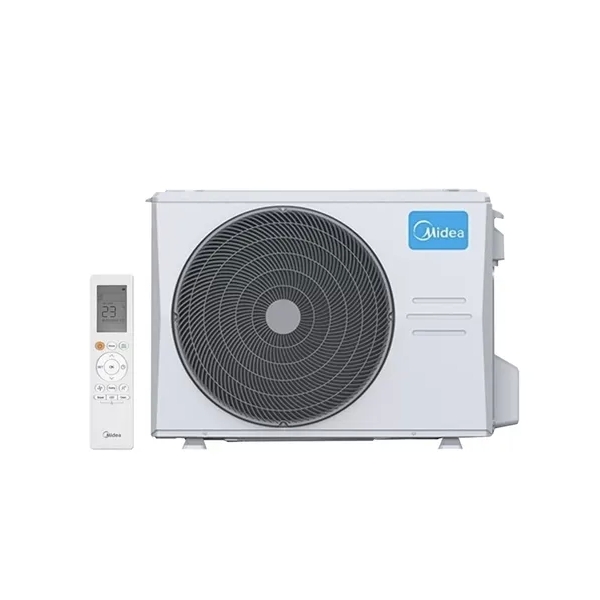

Outdoor Model Name |
MOTDUL-36HN1-Q |
MOU-48HN1-R |
MODU-55HN1-R |
|
Capacity (Btu/h) |
Cooling |
36000 |
48000 |
58500 |
Heating |
37000 |
55000 |
64500 |
|
Power input (W) |
Cooling |
3550 |
5300 |
6570 |
Heating |
3180 |
5350 |
5590 |
|
EER (Btu/h)/W |
Cooling |
2.97 |
2.65 |
2.61 |
COP (W/W) |
Heating |
3.42 |
3.01 |
3.38 |
Rating Current (A) |
Cooling |
15.4 |
9.5 |
11.3 |
Heating |
13.8 |
10 |
11 |
|
Power supply (V-Ph-Hz) |
220-24OV.1Ph,50Hz |
380-420V,3Ph,50Hz |
380-415V,3Ph.50Hz |
|
Indoor air flow (m3/h) (Hi/Mi/Lo) |
1491/0/1211 |
1488/0/1180 |
2326/0/1984 |
|
Refrigerant |
R410A |
R410A |
R410A |
|
Indoor | ||||
Net dimension (mm)(body) |
W*D*H |
540x410x1825 |
540x410x1825 |
600x455x1934 |
Packing dimension (mm)(body) |
W*D*H |
1965x690x565 |
1965x690x565 |
2080x755x585 |
Net/Gross weight (kg)(body) |
50.5/66 |
52.9/69.4 |
67.0/85.6 |
|
Indoor noise level [dB(A)](Hi/Mi/LO) |
54/0/46 |
54/0/46 |
54/0/50 |
|
Outdoor | ||||
Net dimension(mm) |
W*D*H |
946x410x810 |
900x350x1170 |
900x350x1170 |
Packing dimension (mm) |
W*D*H |
1090x500x885 |
1032x443x1307 |
1032x443x1307 |
Net/Gross weight (kg) |
73/77.5 |
98.6/109.3 |
99.7/111.2 |
|
Outdoor noise level [dB(A)] |
63.5 |
63 |
64 |
|
Refrigerant piping | ||||
Liquid side/ Gas side |
mm(inch) |
9.52mm(3/8in)/19mm(3/4in) |
9.52mm(3/8in)/19mm(3/4in) |
9.52mm(3/8in)/19mm(3/4in) |
Max. pipe length |
m |
30 |
50 |
50 |
Max. difference in level |
m |
20 |
30 |
30 |
