4800 Lumen 3840X2160 Short Throw Projector Laser Projector for 3D Mapping
$
1880.00
/set
Product Details
- Model NO.: MX-LK4800ST
- Brightness: 4800 Lumen
- Working Principle: LCD
- Model NO.: Mx-Lk4800st
- Display Technology: Liquid Crystal Display
Find Similar Products
Basic info
Model NO.
MX-LK4800ST
Brightness
4800 Lumen
Working Principle
LCD
Model NO.
Mx-Lk4800st
Display Technology
Liquid Crystal Display
Contrast Ratio
5000000:1
Transport Package
Carton
Specification
390x319x144 mm
Trademark
Windon
Origin
China
HS Code
8528620000
Production Capacity
50000PCS/Month
Product Description

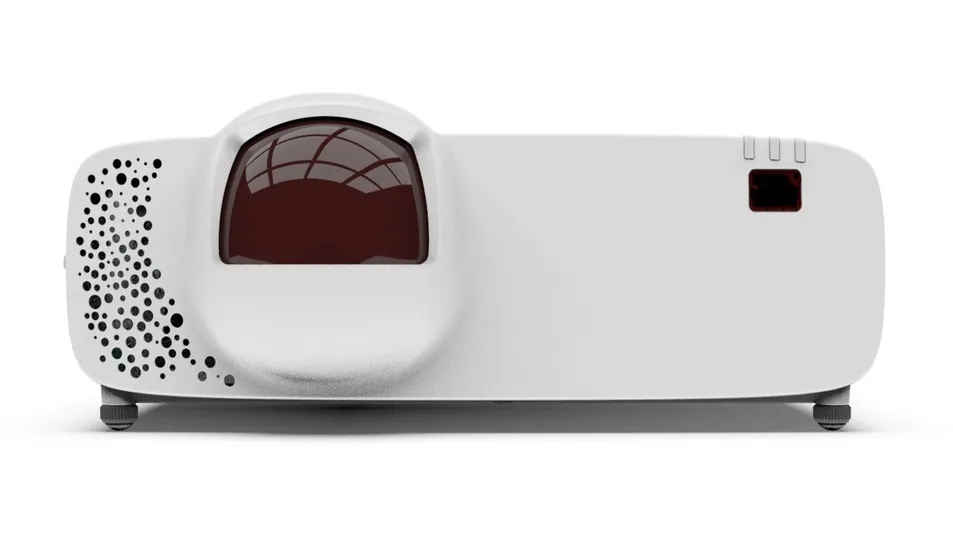

4800 Lumen 3840x2160 Short Throw Projector Laser Projector for 3D mapping
Key Features
* Laser light source: Normal mode with 20000H,ECO mode with 30000Hrs
* Resolution: 4K enhancement
* Throw ratio: 0.44:1
* Dynamic Contrast Ratio: 5000,000:1
* Laser light source: Normal mode with 20000H,ECO mode with 30000Hrs
* Resolution: 4K enhancement
* Throw ratio: 0.44:1
* Dynamic Contrast Ratio: 5000,000:1

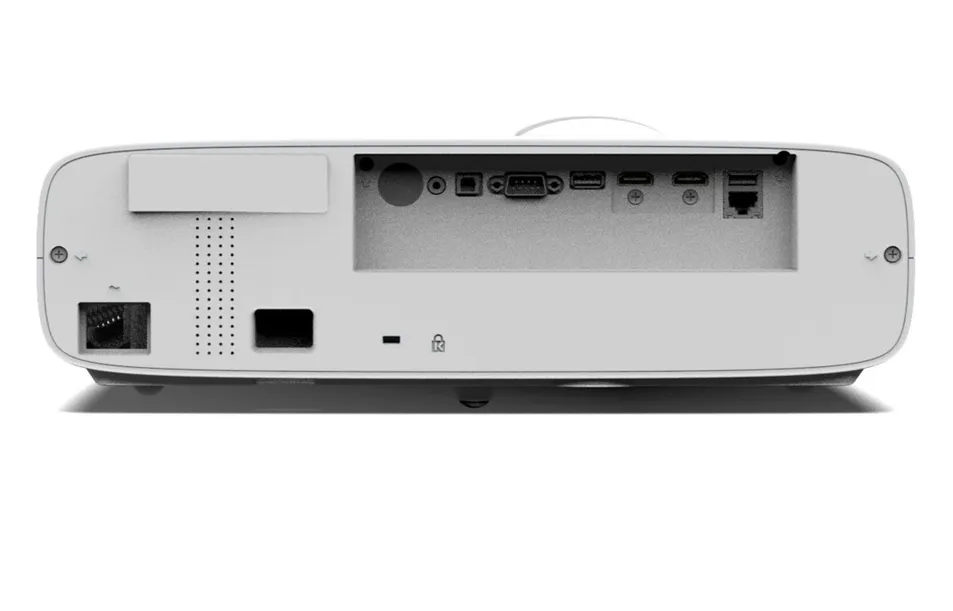

* Multiple input: HDMI 2.0INx2; USB-Ax2; RJ45x1
* Keystone Correction: V: ±15° H:±15° 4 corner
* LAN Control--PJ Link: Support
Specification
Model |
|||
Model No. |
MX-LK4800ST |
MX-LK5200ST |
|
Brightness(Lumen) |
4800 |
5200 |
|
Resolution |
4K enhancement |
4K enhancement |
|
Overall Spec |
|||
Panel |
Display Panel |
3x0.64” with MLA |
3x0.64” with MLA |
Display Technology |
Liquid Crystal Display |
Liquid Crystal Display |
|
Light source Lifetime |
Light Source |
Laser |
Laser |
Normal mode |
20000hrs |
20000hrs |
|
ECO mode |
30000hrs |
30000hrs |
|
Projection Lens |
Lens Vendor |
RICOH Lens |
RICOH Lens |
F |
1.6 |
1.6 |
|
f |
6.39mm |
6.39mm |
|
Zoom/Focus |
Manual |
Manual |
|
Throw Ratio |
0.44:1 |
0.44:1 |
|
Screen size |
50-300inch |
50-300inch |
|
CR |
Dynamic Contrast Ratio |
5000,000:1 |
5000,000:1 |
Noise |
Noise(dB) |
40dB(Normal) 30dB(ECO) |
40dB(Normal) 30dB(ECO) |
Uniformity |
Uniformity |
80% |
80% |
AR |
Aspect Ratio |
Native:16:9 Compatible: 4:3/16:10 |
Native:16:9 Compatible: 4:3/16:10 |
Terminal(I/O port) |
|||
Input |
HDMI2.0IN) |
*2 |
*2 |
USB-A |
*2 |
*2 |
|
RJ45 |
*1 |
*1 |
|
HD BaseT |
*1(Optional) |
*1(Optional) |
|
Output |
Audio port |
S/PDIF*1 |
S/PDIF*1 |
Audio out (mini-jack,3.5mm) |
*1 |
*1 |
|
Control |
RS232C |
*1 |
*1 |
RJ45 |
*1 (Control) |
*1 (Control) |
|
General Spec |
|||
Audio |
Speaker |
16W*1 |
16W*1 |
Dust filter |
W/Filter |
W/Filter |
|
Filter Life time |
7000h |
7000h |
|
Power Consumption |
Power Requeirements |
100~240V@ 50/60Hz |
100~240V@ 50/60Hz |
Power Consumption (Normal) (Max) |
325 |
330 |
|
Power Consumption (ECO1) (Max) |
200 |
190 |
|
ECO Standby Mode Power Consumption |
<0.5W |
<0.5W |
|
Temp.&Humidity |
Operating Temp. |
0 to 40°C |
0 to 40°C |
Operating humidity. |
20-80% |
20-80% |
|
Storage Temp. |
-10 to 50°C |
-10 to 50°C |
|
Storage humidity. |
10-85% |
10-85% |
|
High altitude |
0-3000m |
0-3000m |
|
Other Functions |
|||
Keystone |
Keystone Correction (Lens@center) |
V: ±15° H:±15° 4 corner |
V: ±15° H:±15° 4 corner |
OSD |
Languages |
English, Simplified Chinese |
English, Simplified Chinese |
LAN Control |
LAN Control--PJ Link |
Yes |
Yes |
Scanning Frequency |
H-Synch Range |
15~100KHz |
15~100KHz |
V-Synch Range |
24~85Hz |
24~85Hz |
|
Display Resolution |
Computer Signal Input |
up to 4K60Hz |
up to 4K60Hz |
SW setting |
D-Zoom |
YES(HDMI) |
YES(HDMI) |
Company Profile
Windon Industrial Co. Ltd
Since: 2008
Specialty: Support OEM service for projector& projection screen
Capacity: 10,000 projectors/month,100,000 projection screen/month
Advanced Features:
Specialty: Support OEM service for projector& projection screen
Capacity: 10,000 projectors/month,100,000 projection screen/month
Advanced Features:

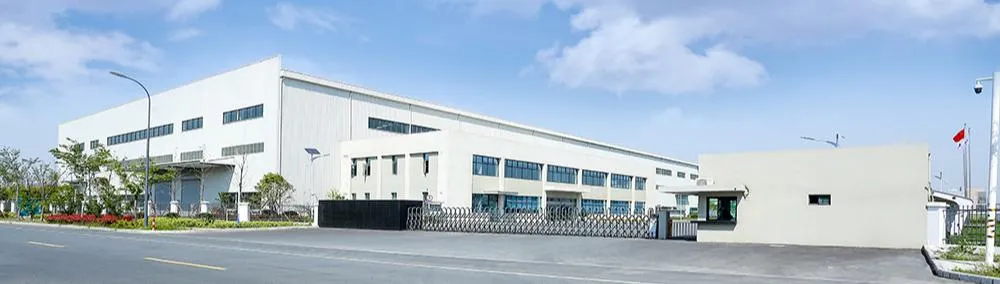

Based in China, Windon Industrial Co. Ltd is a professional manufacturer specializing in R&D, manufacturing and exporting a wide range of projection screens. We produce high quality level Projector, 4K laser projector, Home Cinema Projection Screens and Customized Large Format Projector Screens in our Shenzhen Factory, and normal Projection Screens in our Jiangsu Factory. All of our projection screens are 100% QC before delivery.
Showrooms
Factory Capabilities

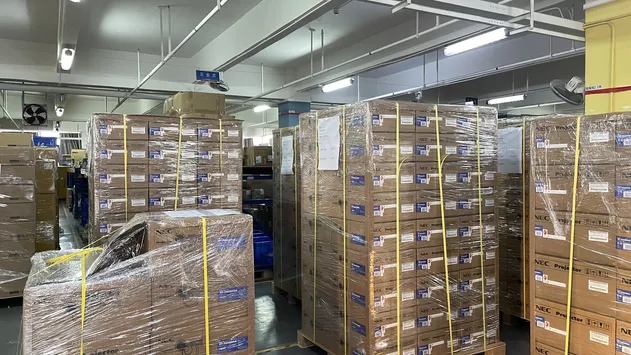

Packing & Logistics

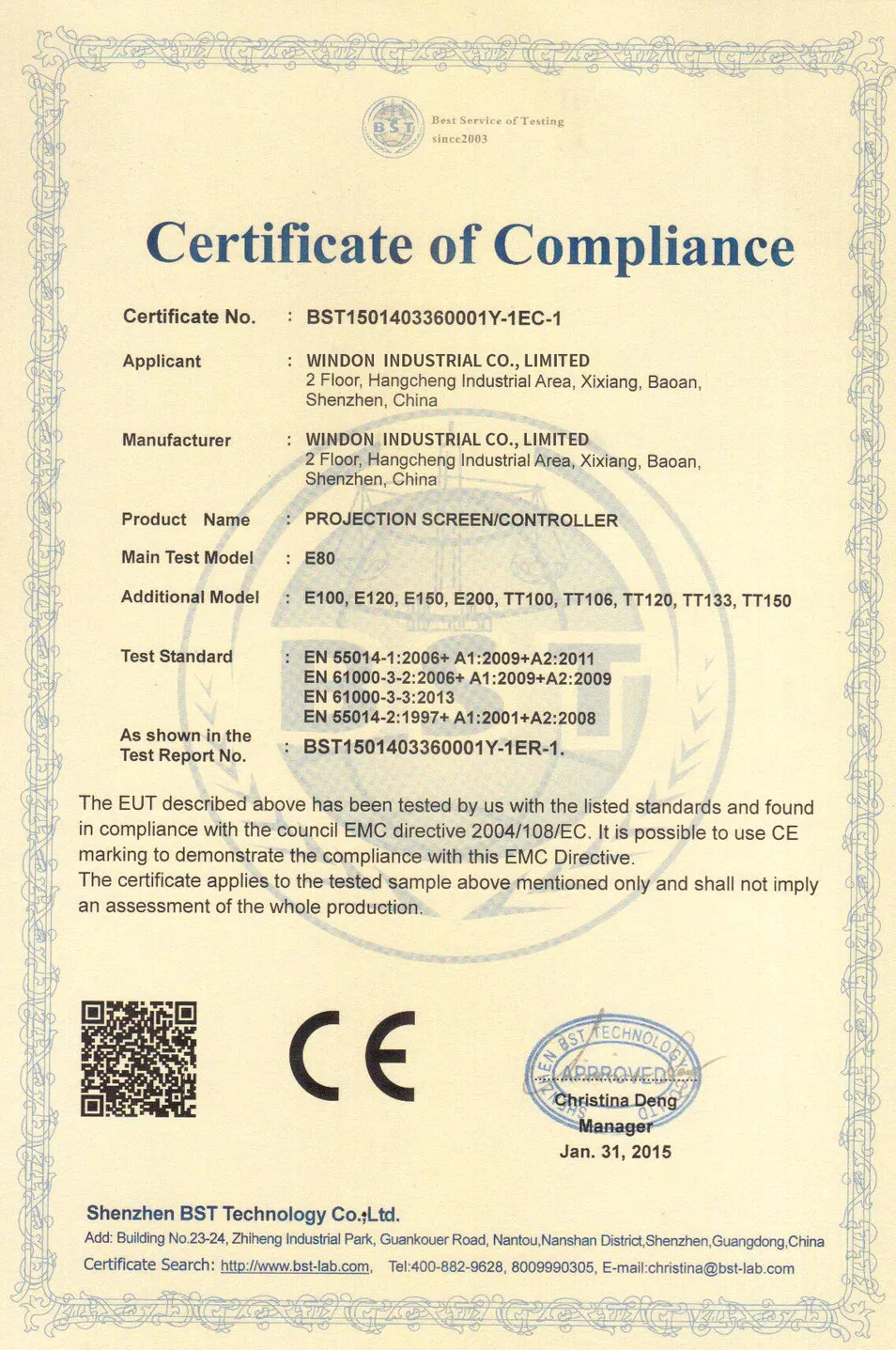

Certifications
