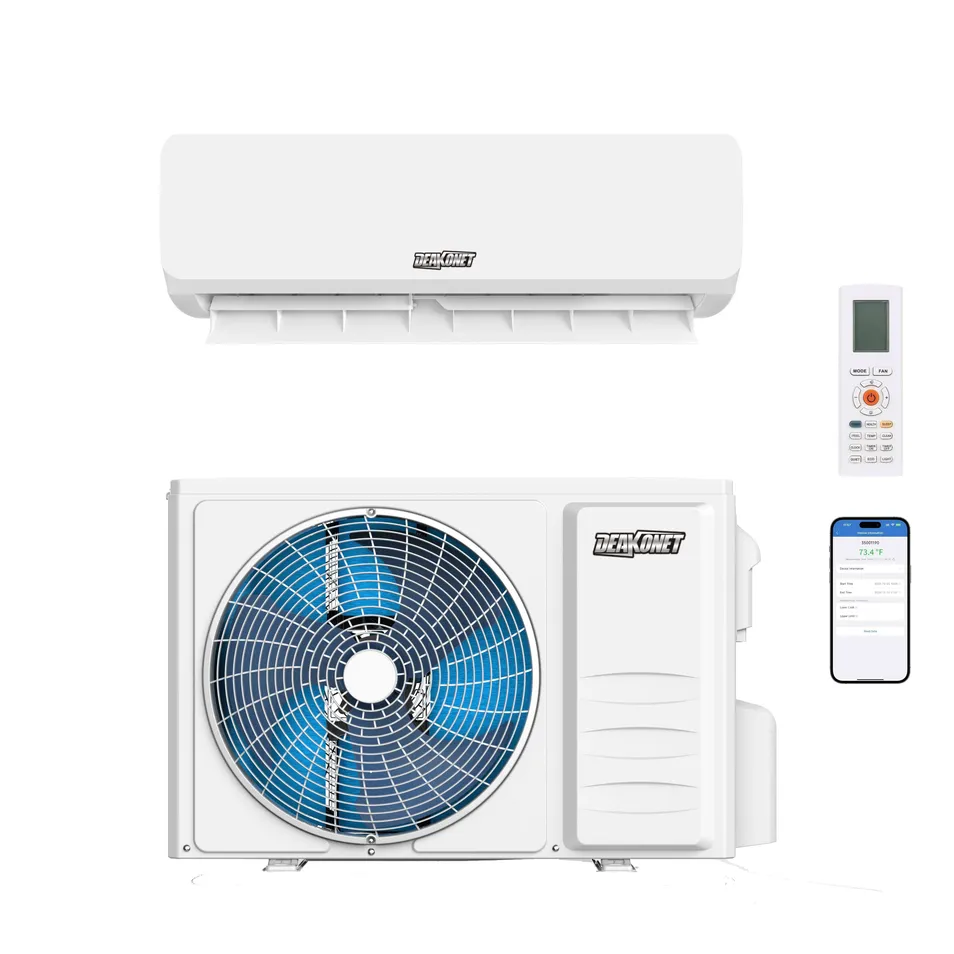

12000BTU Split Inverter Air Conditioner for All Climates
$
171.00
/set
Product Details
- Model NO.: SAS12B
- Usage: Room
- Indoor Machine Noise: 24-35dB
- Certification: CE, CCC, RoHS, CECC, GS, MEPS, UR, BEB
- China Energy Efficiency Standard: Level 1
Find Similar Products
Basic info
Model NO.
SAS12B
Usage
Room
Indoor Machine Noise
24-35dB
Certification
CE, CCC, RoHS, CECC, GS, MEPS, UR, BEB
China Energy Efficiency Standard
Level 1
Cooling/Heating
Cooling/Heating
Power Source
Electrical
Power Type
AC
Condition
New
Compressor
Inverter
Fan Motor
DC
Refrigerant
R32
Control
Remote Controller+ WiFi APP
Transport Package
Export Standard
Trademark
Deakonet (OEM/ODM)
Origin
China
HS Code
8415101000
Production Capacity
10000units/Year
Package Size
880.00cm * 375.00cm * 685.00cm
Package Gross Weight
30.000kg
Product Description
Product Description
DEAKONET by FOSHAN JUYANG NEW ENERGY CO., LTD. - Split Inverter Air Conditioner
Product Overview:
The DEAKONET series, manufactured by FOSHAN JUYANG NEW ENERGY CO., LTD., represents a line of high-efficiency Split Inverter Air Conditioners engineered to deliver intelligent cooling and heating solutions for residential and commercial applications. Combining advanced inverter technology with eco-friendly design, DEAKONET units ensure optimal performance, energy savings, and user comfort.
The DEAKONET series, manufactured by FOSHAN JUYANG NEW ENERGY CO., LTD., represents a line of high-efficiency Split Inverter Air Conditioners engineered to deliver intelligent cooling and heating solutions for residential and commercial applications. Combining advanced inverter technology with eco-friendly design, DEAKONET units ensure optimal performance, energy savings, and user comfort.
Key Features & Functions:
1. Dual-Mode Operation
2. Inverter Technology
3. WiFi & Smart App Control
4. Solar-Ready Compatibility
5. Quiet Operation
6. Plasma Air Purification
7. Wide Voltage Compatibility
8. Durable Components
9. All-Climate Performance
10. Multi-Model Options
Quiet Operation
Advanced sound-dampening technology and optimized airflow design ensure ultra-low noise levels (as low as 28 dB), ideal for bedrooms and offices.
Multi-Model Options
Available in various capacities (9,000-24,000 BTU) to accommodate different room sizes and usage scenarios.
Inverter Technology
Adjusts compressor speed dynamically to maintain precise temperatures, reducing energy consumption by up to 30-40% compared to conventional units.
Dual-Mode Operation
Provides cooling and heating in one system, ensuring year-round climate control adaptable to seasonal needs.
Durable Components
Equipped with high-quality inverter compressors, corrosion-resistant heat exchangers, and eco-friendly R32 refrigerants.
Specification
Model Name |
SAS09B |
SAS12B |
SAS18B |
SAS24B |
SAS28B |
|
Power Supply |
V/Ph/Hz |
220-240/1/50-60 |
||||
Cooling Capacity |
Btu/h |
9000 |
12000 |
18000 |
24000 |
28000 |
Cooling Input |
W |
800 |
1300 |
1700 |
2000 |
2700 |
Cooling Current |
A |
3.7 |
5.6 |
7.2 |
8.52 |
12.5 |
Heating Capacity |
Btu/h |
9400 |
12600 |
18000 |
24000 |
28000 |
Heating Input |
W |
850 |
1300 |
1680 |
1940 |
2800 |
Heating Current |
A |
3.9 |
5.6 |
7.4 |
8.5 |
13 |
Seasonal Cooling (Pdesign) |
kW |
2.4 |
2.8 |
4.6 |
6.2 |
7 |
SEER |
W/W |
6.1 |
6.1 |
6.1 |
6.6 |
6.3 |
Heating Energy Efficiency Class |
kW |
2.0 |
2.2 |
2.2 |
4.1 |
5.0 |
SCOP |
W/W |
4.0 |
4.0 |
4.0 |
4.0 |
4.0 |
Heating Energy Efficiency Class (Average) |
A+ |
A+ |
||||
Indoor Unit Air Flow Volume |
m³/h |
520/440/230/150 |
550/470/250/160 |
850/720/610/520 |
1200/1150/900/750 |
1200/1150/900/750 |
Indoor Unit Sound Pressure Level |
dB(A) |
40/37/32/25 |
42/39/35/30 |
44/40/37/34 |
51/45/40/35 |
51/45/40/35 |
Indoor Unit Dimension (W×H×D) |
mm |
821×283×200 |
821×283×200 |
1003×310×222 |
1109×331×250 |
1109×331×250 |
Indoor Unit Carton Box Dimension (W×H×D) |
mm |
895×281×350 |
895×281×350 |
1077×304×380 |
1178×344×414 |
1178×344×414 |
Indoor Unit Net Weight |
kg |
9 |
9 |
13.5 |
16.5 |
16.5 |
Indoor Unit Gross Weight |
kg |
11 |
11 |
16 |
19.5 |
19.5 |
Outdoor Unit Sound Pressure Level |
dB(A) |
50 |
53 |
55 |
51 |
52 |
Outdoor Unit Dimension (W×H×D) |
mm |
830×540×325 |
830×540×325 |
890×598×372 |
960×700×396 |
990×790×426 |
Outdoor Unit Carton Box Dimension (W×H×D) |
mm |
876×585×363 |
876×585×363 |
938×647×409 |
1008×742×452 |
1054×832×479 |
Outdoor Unit Net Weight |
kg |
23 |
23.5 |
33 |
42.5 |
51 |
Outdoor Unit Gross Weight |
kg |
25 |
26 |
37 |
46 |
55 |
Refrigerant Type |
R410A |
R410A |
R410A |
R410A |
R410A |
|
Refrigerant Charge |
kg |
0.78 |
0.8 |
1.5 |
1.63 |
1.9 |
Liquid Pipe Outer Diameter |
mm |
φ6.35 |
φ6.35 |
φ6.35 |
φ6.35 |
φ6.35 |
Gas Pipe Outer Diameter |
mm |
φ9.52 |
φ9.52 |
φ12.7 |
φ15.88 |
φ15.88 |
20' GP Loading Quantity |
units |
112 |
112 |
90 |
56 |
47 |
40' GP Loading Quantity |
units |
234 |
234 |
189 |
123 |
99 |
40' HQ Loading Quantity |
units |
260 |
260 |
218 |
140 |
118 |
Packing & Delivery

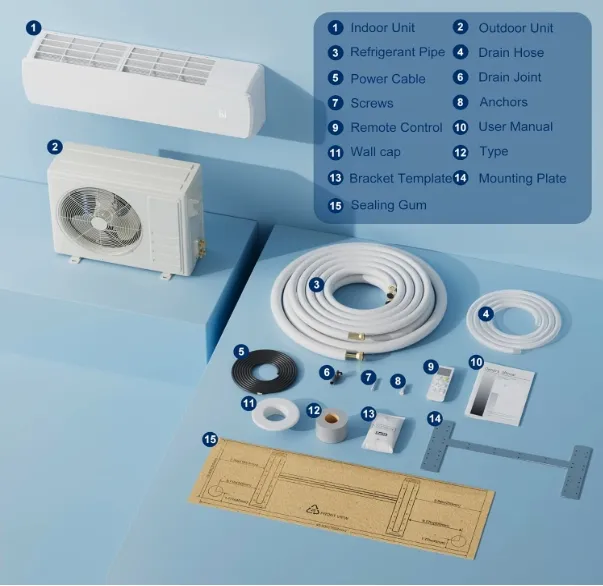

DEAKONET SPLIT INVERTER AIR CONDITIONER - Installation Accessories
To ensure seamless and flexible installation, DEAKONET SPLIT INVERTER AIR CONDITIONER provides a comprehensive range of professional accessories. All accessories are designed to meet international standards and simplify the setup process for both residential and commercial applications.
Standard Installation Accessories:
1. Copper Connection Pipes
1. Copper Connection Pipes
-Pre-insulated high-quality copper pipes (3m standard length) with corrosion-resistant coating.
-Optional extended lengths (4m/5m) available for custom installations.
-Optional extended lengths (4m/5m) available for custom installations.
2. Electrical Wiring Kits
-UV-resistant communication cables (4-core shielded) and power cables.
-Customizable lengths (e.g., 4m/5m) with waterproof connectors.
-Customizable lengths (e.g., 4m/5m) with waterproof connectors.
3. Wall Mounting Brackets
-Galvanized steel brackets with anti-rust treatment for outdoor units.
-Adjustable designs compatible with various wall types (concrete/brick).
-Adjustable designs compatible with various wall types (concrete/brick).
4. Drainage Components
-PVC drain pipes and extension kits with anti-clog design.
-Condensation drainage pumps (optional for complex installations).
-Condensation drainage pumps (optional for complex installations).
After Sales Service
After-Sales Services Provided by Juyang New Energy
Juyang New Energy is committed to delivering comprehensive and reliable after-sales support to ensure customer satisfaction throughout the entire product lifecycle. Our services cover technical assistance, maintenance, and proactive solutions tailored to your needs.
Key After-Sales Services:
1. Warranty Coverage
1. Warranty Coverage
-Standard warranty period of 5 years on compressors and 2 years on entire systems.
-Global warranty validation with dedicated support channels.
2, Technical Support
-Global warranty validation with dedicated support channels.
2, Technical Support
-24/7 online and phone consultation for troubleshooting and operational guidance.
-Remote diagnostics via IoT-enabled devices for real-time issue resolution.
3. Maintenance Services
-Remote diagnostics via IoT-enabled devices for real-time issue resolution.
3. Maintenance Services
-Scheduled preventive maintenance programs to optimize system performance.
4. Spare Parts Supply
4. Spare Parts Supply
-Guaranteed availability of genuine parts (e.g., compressors, PCBs, sensors) for 10 years.
-Global logistics support for expedited part replacements.
5. Training Programs
-Global logistics support for expedited part replacements.
5. Training Programs
-Training sessions for installers on installation, operation, and maintenance.
-Digital manuals and video tutorials accessible via our website and mobile app.
6. Solar System Integration Support
-Digital manuals and video tutorials accessible via our website and mobile app.
6. Solar System Integration Support
-Specialized assistance for solar-powered system configurations and energy monitoring.
-Compatibility checks and upgrades for existing installations.
-Compatibility checks and upgrades for existing installations.
Company Profile

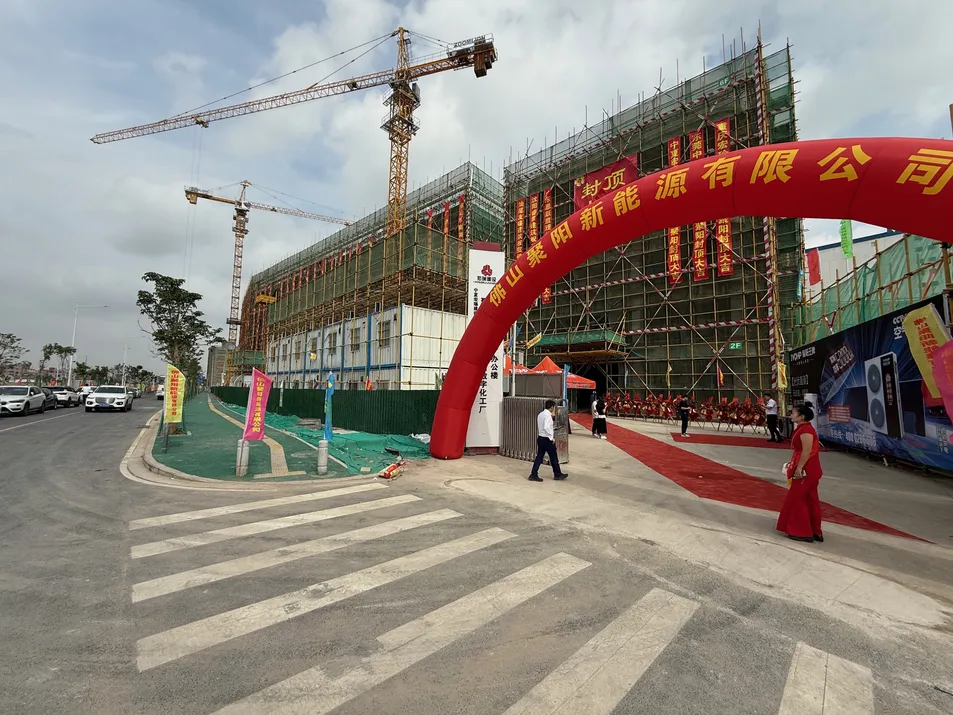

Juyang New Energy's brand new digital factory will be completed and put into operation in November 2025.

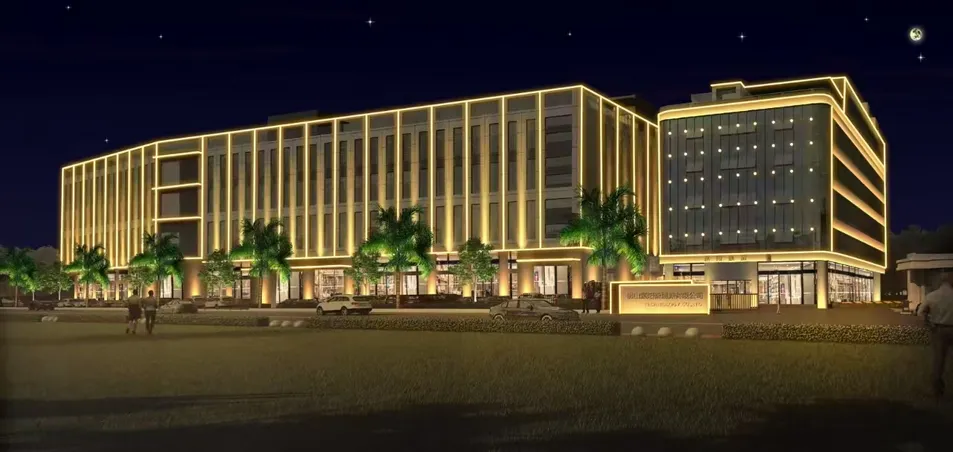

The new facility will include a 20,000 m² factory and a 5,000 m² office building. The factory will be equipped with four digital production lines, three performance laboratories, and one noise laboratory.
Additionally, it will feature advanced machinery such as CNC sheet metal processing machines, evaporator processing machines, and water tank processing machines, all supported by a digital automated storage and retrieval system with AGVs (Automated Guided Vehicles).
