Basic info
Model NO.
XS97 ATV
CPU
4
Function
IPTV
Type
iDTV
GPU
Mali-G31
RAM
2GB
ROM
16GB
OS
Android 12 6K
Transport Package
Carton
Specification
170*105*70mm
Trademark
xangshi
Origin
China
HS Code
8517629900
Production Capacity
15000
Package Size
17.00cm * 10.50cm * 7.00cm
Package Gross Weight
0.450kg
Product Description
| Product Description | ||

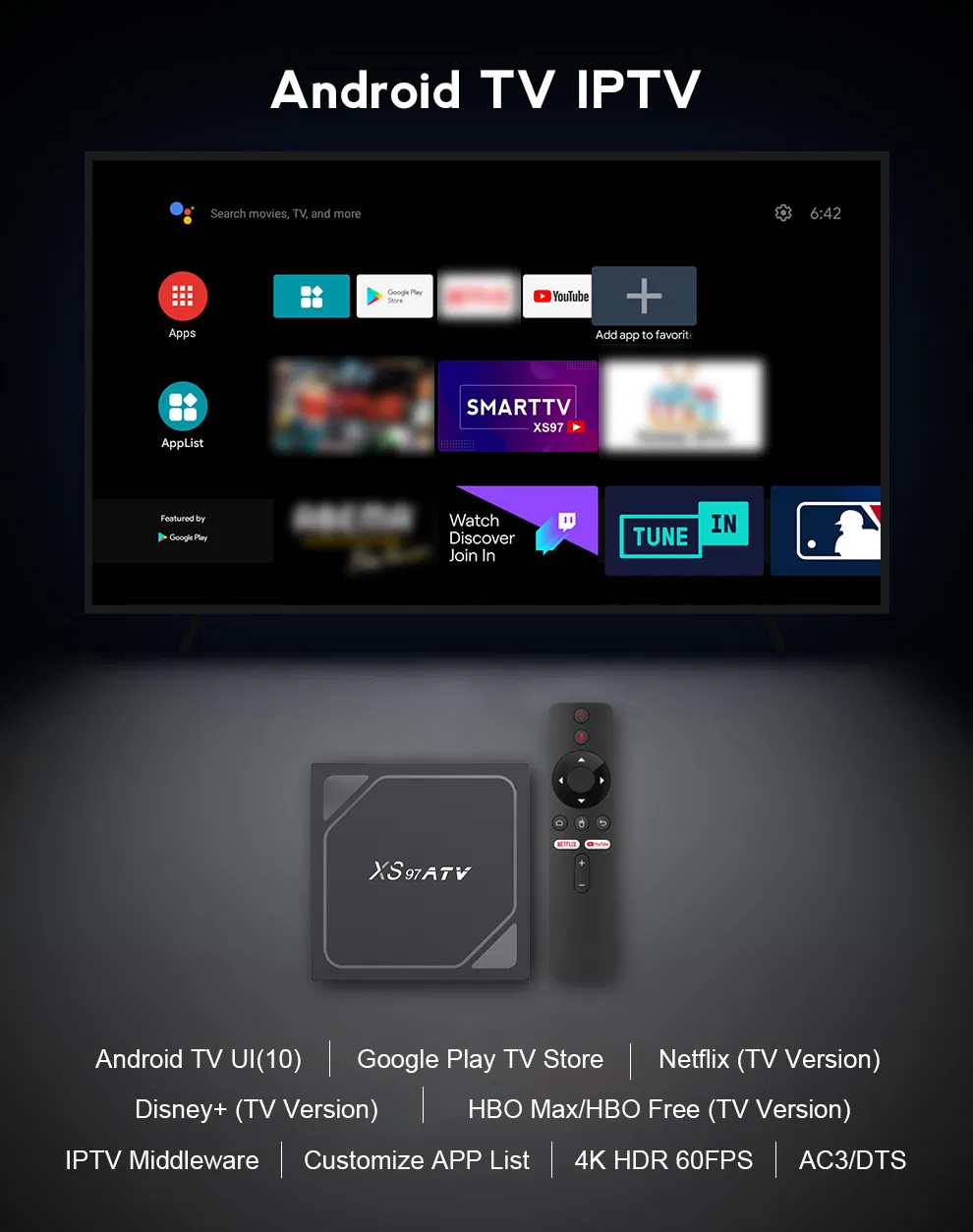

| Quad core 64 bit 4K HDR Android TV Box Android base TV system H.264 1080p 60fps Video encoding H.264/H.265 10bit HDR decoding up to 4K@60fps HDMI 2.0 max to 4K60 output |
||
| Basic parameters | ||

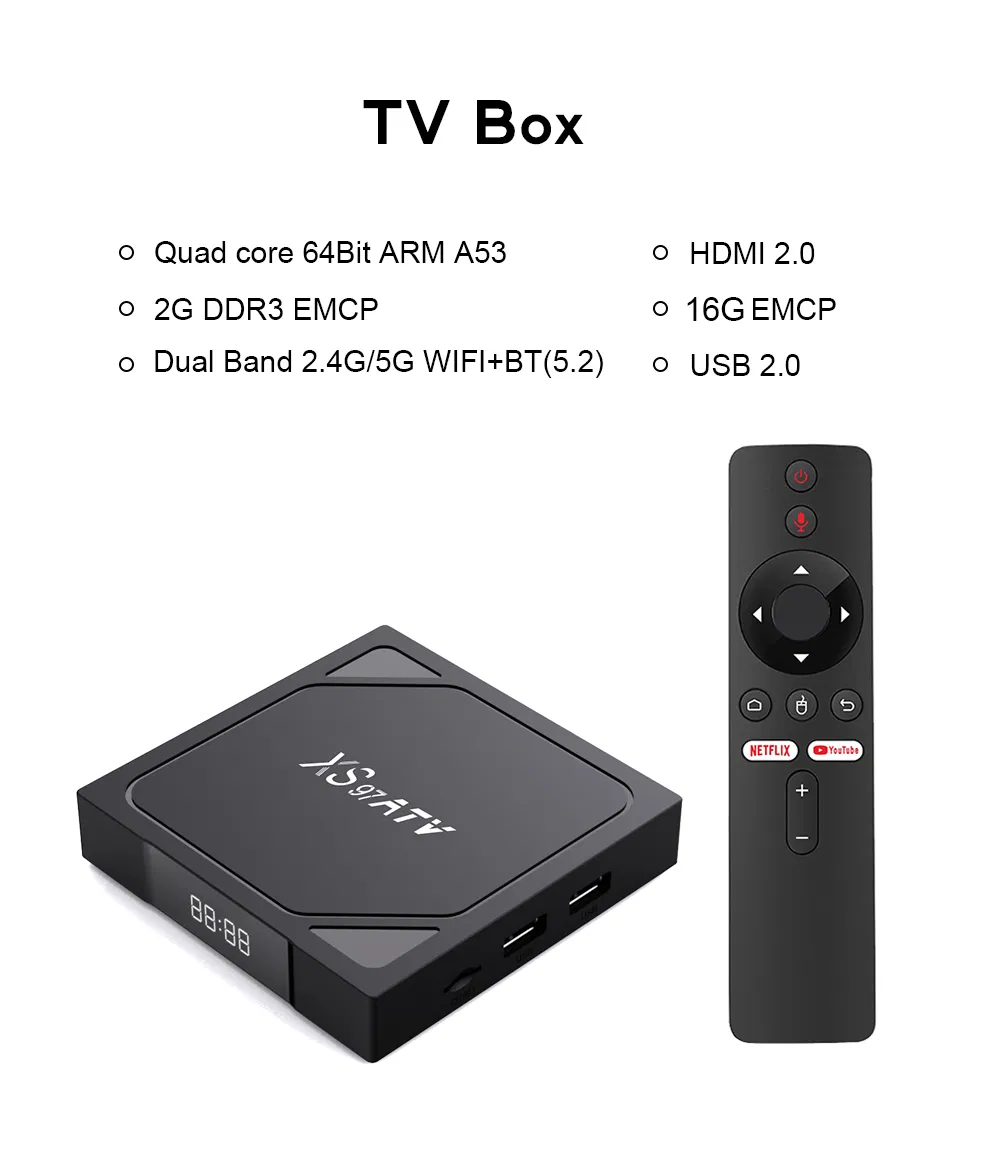

| CPU: Quad-core ARM Cortex™-A53 | ||
| GPU: Mali-G31 | ||
| DRAM: DDR3 2GB | ||
| FLASH: EMMC 16GB | ||
| OS: Android 10.0 | ||
| Network | RJ45 Interface 10M/100M adaptive | |
| Build in Wi-Fi 2.4GHz+5GHz | ||
| I/O | ||
| Video Output | HDMI2.0(4K60), AV | |
| Network | RJ45, Buildin Wi-Fi antenna | |
| Peripheral Interface | USB2.0x2 | |
| Power Interface | DC 5V 2A | |
| Other Interface | IR receiver, LED indicato | |
| Media | ||
| Video | Decoder: • H.265 Main10@L5.1 decoder up to 4K@60fps • VP9 Profile 2 decoder up to 4K@30fps • AVS2 JiZhun 10bit decoder up to 4K@30fps • H.264 BP/MP/HP@L4.2 decoder up to 4K@30fps • Multi-format 1080p@60fps video playback formats, including H.264 BP/MP/HP, H.263 BP, VP8, MPEG-1 MP/HL, MPEG-2 MP/HL, MPEG-4 SP/ASP@L5, AVS+/AVS JiZhun, WMV9/VC1, etc |
|
| Format: MKV, TS, M2TS, MOV, MP4, RM, RMVB, AVI, MPG, MPEG, DAT, VOB, FLV etc. |
||
| Audio | Decoder: MPEG 1/2/2.5, Audio Layer 1/2/3, WMA Version 4/4.1/7/8/9, WMA Pro, LPCM, PCM, Vorbis, Flac, ALAC, APE, AAC-LC/HEAAC/HE-AAC v2, Real Audio, AC-3/DD+/AC-4, MPEG-H |
|
| Format: MP3, WMA, WAV, OGG, M4A, MP4, AAC, APE, FLAC, ALAC, MPEG, MP1, MP2, MPA etc. |
||
| Subtitle Format | SMI, SRT, SSA, ASS,SUB, SUB+IDX, ISO Navigation | |
| Photo Format | HD JPEG/BMP/GIF/PNG/TIFF | |
| Features | ||
| Network Streaming | HTML5, RTSP, HLS, Smooth streaming | |
| Multi-screen interactive | Miracast, DLNA and Airplay | |
| Local Media Playback | Video/Audio/Picture | |

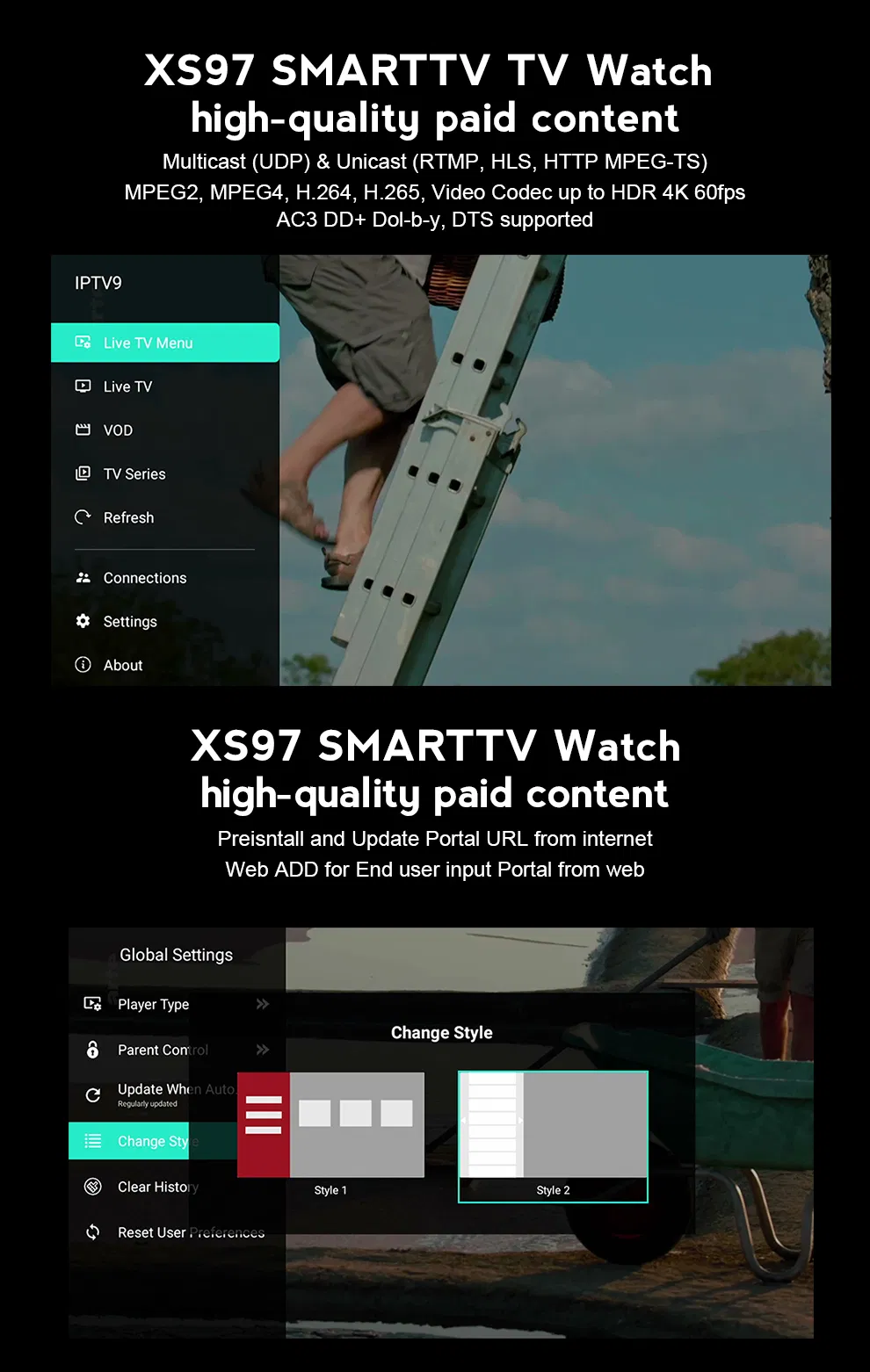

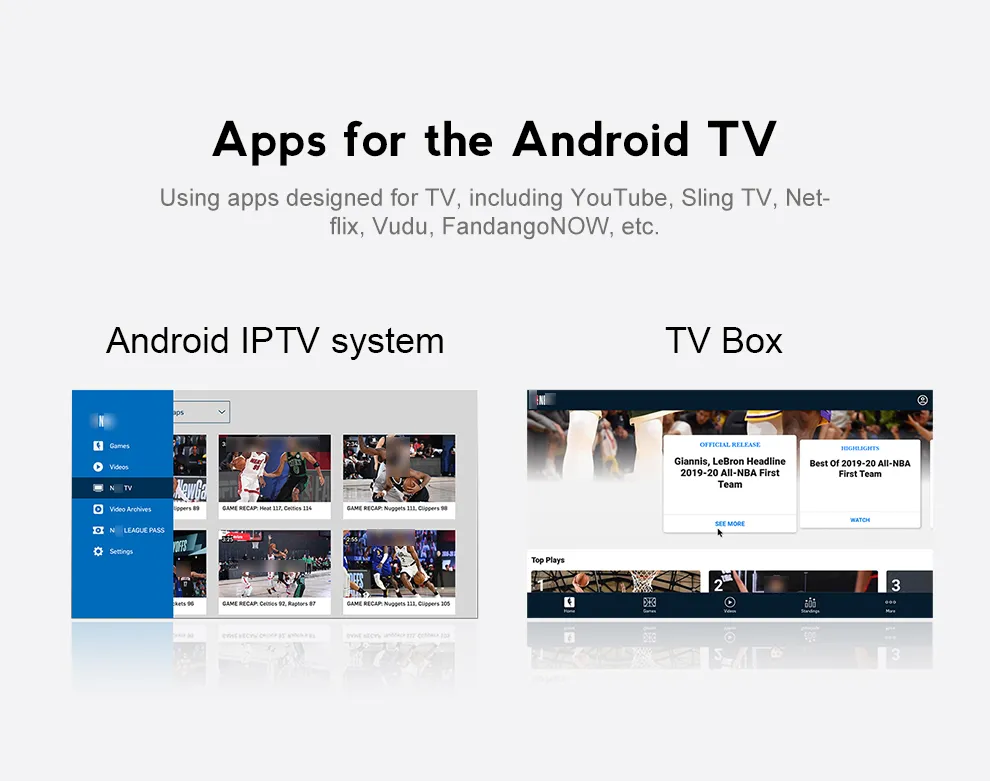

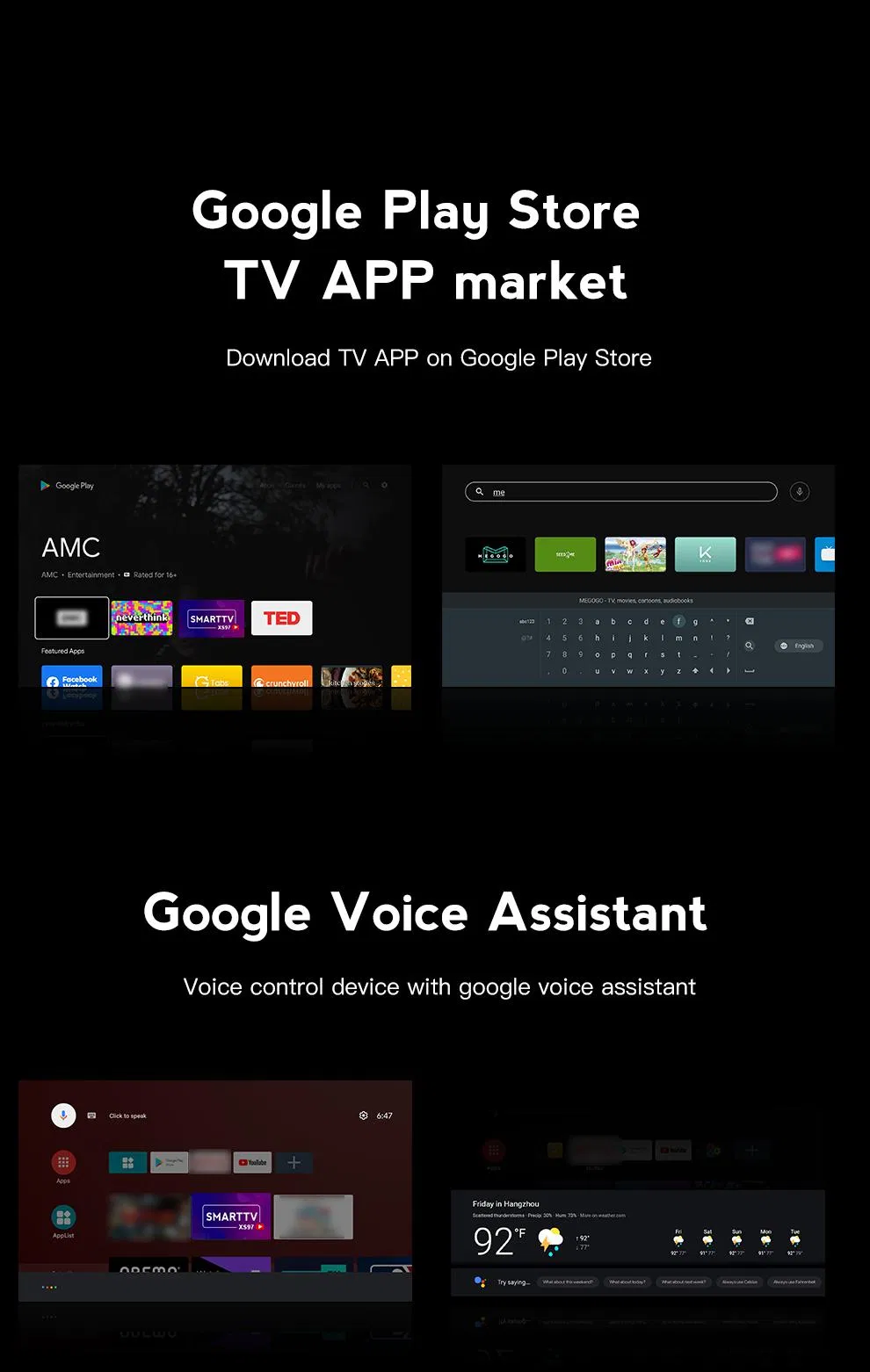

| TV APP | Stalker/Ministra/Xtream code/M3U(4K HDR10), Google Play(TV version), Google Voice Assistant, You-Tube(4K), Net-flix(TV Version), Dis-ney+(TV Version up to 720P), HBO Max(TV Version) Android TV APP | |
| External Storage | USB storage max to 2TB (FAT32/NTFS) | |
| System Upgrading | Upgrading via USB disk or internet | |
| Other parameters | ||
| Input Voltage | DC IN 5V/2A | |
| Power Consumption | 8W Max | |
| Operation Temperature | 0~40ºC, Humidity<95% | |
| Physical characteristics | Size: 100*100*18MM | |
| Weight: | ||
| Material | ||
| Proposed Accessory | Power adapter, User manual, HDMI cable, BT Voice RCU | |
| Product Description | ||
| Quad core 64 bit 4K HDR Android TV Box Android base TV system H.264 1080p 60fps Video encoding H.264/H.265 10bit HDR decoding up to 4K@60fps HDMI 2.0 max to 4K60 output |
||
| Basic parameters | ||
| CPU: Quad-core ARM Cortex™-A53 | ||
| GPU: Mali-G31 | ||
| DRAM: DDR3 2GB | ||
| FLASH: EMMC 16GB | ||
| OS: Android 10.0 | ||
| Network | RJ45 Interface 10M/100M adaptive | |
| Build in Wi-Fi 2.4GHz+5GHz | ||
| I/O | ||
| Video Output | HDMI2.0(4K60), AV | |
| Network | RJ45, Buildin Wi-Fi antenna | |
| Peripheral Interface | USB2.0x2 | |
| Power Interface | DC 5V 2A | |
| Other Interface | IR receiver, LED indicato | |
| Media | ||
| Video | Decoder: • H.265 Main10@L5.1 decoder up to 4K@60fps • VP9 Profile 2 decoder up to 4K@30fps • AVS2 JiZhun 10bit decoder up to 4K@30fps • H.264 BP/MP/HP@L4.2 decoder up to 4K@30fps • Multi-format 1080p@60fps video playback formats, including H.264 BP/MP/HP, H.263 BP, VP8, MPEG-1 MP/HL, MPEG-2 MP/HL, MPEG-4 SP/ASP@L5, AVS+/AVS JiZhun, WMV9/VC1, etc |
|
| Format: MKV, TS, M2TS, MOV, MP4, RM, RMVB, AVI, MPG, MPEG, DAT, VOB, FLV etc. |
||
| Audio | Decoder: MPEG 1/2/2.5, Audio Layer 1/2/3, WMA Version 4/4.1/7/8/9, WMA Pro, LPCM, PCM, Vorbis, Flac, ALAC, APE, AAC-LC/HEAAC/HE-AAC v2, Real Audio, AC-3/DD+/AC-4, MPEG-H |
|
| Format: MP3, WMA, WAV, OGG, M4A, MP4, AAC, APE, FLAC, ALAC, MPEG, MP1, MP2, MPA etc. |
||
| Subtitle Format | SMI, SRT, SSA, ASS,SUB, SUB+IDX, ISO Navigation | |
| Photo Format | HD JPEG/BMP/GIF/PNG/TIFF | |
| Features | ||
| Network Streaming | HTML5, RTSP, HLS, Smooth streaming | |
| Multi-screen interactive | Miracast, DLNA and Airplay | |
| Local Media Playback | Video/Audio/Picture | |
| TV APP | Stalker/Ministra/Xtream code/M3U(4K HDR10), Google Play(TV version), Google Voice Assistant, You-Tube(4K), Net-flix(TV Version), Dis-ney+(TV Version up to 720P), HBO Max(TV Version) Android TV APP | |
| External Storage | USB storage max to 2TB (FAT32/NTFS) | |
| System Upgrading | Upgrading via USB disk or internet | |
| Other parameters | ||
| Input Voltage | DC IN 5V/2A | |
| Power Consumption | 8W Max | |
| Operation Temperature | 0~40ºC, Humidity<95% | |
| Physical characteristics | Size: 100*100*18MM | |
| Weight: | ||
| Material | ||
| Proposed Accessory | Power adapter, User manual, HDMI cable, BT Voice RCU | |
