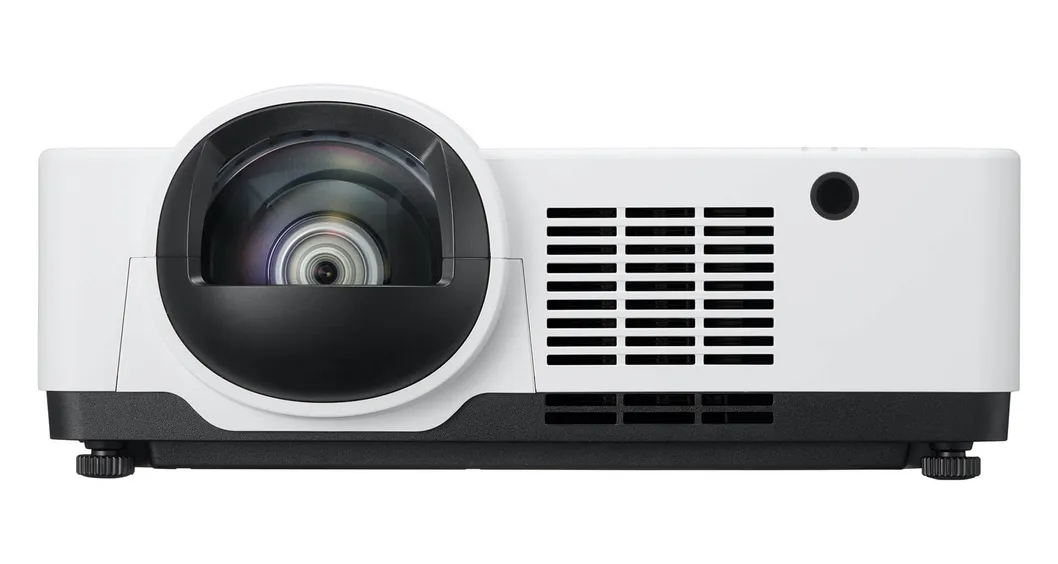

Mx-SL6000W 6000 Lumens Wxga Short Throw 3LCD Laser Projector for Immersive Wall Projection
$
2180.00
/set
Product Details
- Model NO.: MX-SL6000W
- Brightness: 6000 Lumens
- Working Principle: LCD
- Projection Lens: Ricoh Lens
- Contrast: 5000000:1
Find Similar Products
Basic info
Model NO.
MX-SL6000W
Brightness
6000 Lumens
Working Principle
LCD
Projection Lens
Ricoh Lens
Contrast
5000000:1
Transport Package
Carton
Specification
6000 lumen
Trademark
Windon
Origin
China
HS Code
8528620000
Production Capacity
50000PCS/Month
Product Description
MX-SL600W short throw laser projector is deal for home cinema it is designed to provide a large and immersive home theater experience. This projectoris typically capable of projecting a large, high-quality image from a short distance, making them an ideal choice for smaller rooms or apartments.
Use laser technology to produce bright and vibrant colors, with 6000 lumen brightness,5000,000:1 high contrast ratio and 0.44:1 throw ratio. It is designed to produce sharp and clear images, even in rooms with ambient light.
It also come with built-in speakers or support external sound systems to create a complete home theater experience.
Overall,it is an excellent choice for you if you want a build a large and immersive home theater experience in a smaller space. They provide high-quality visuals, making them an ideal alternative to traditional TVs.
| Model | MX-SL6000W | |
| Light source | Laser-NUBM36*1(105W) | |
| Mainchip | Topaz Prime PWC895 | |
| Sony IC | CXD3551+CXA3828(1+1) | |
| Brightness | ||
| Brightness(Lumen) | 6000 | |
| Overall Spec | ||
| Panel | Display Panel | 3x0.64" with MLA |
| Display Technology | Liquid Crystal Display | |
| Native Resolution | WXGA (1280 x 800) | |
| Light source Life time |
Normal mode | 20000hrs |
| ECO1 mode | 30000hrs | |
| ECO2 mode | 30000hrs | |
| Lens | Lens Vendor | RICOH |
| Projection Lens |
F | F1.6 |
| f | 6.39mm | |
| Zoom/Focus | Manual | |

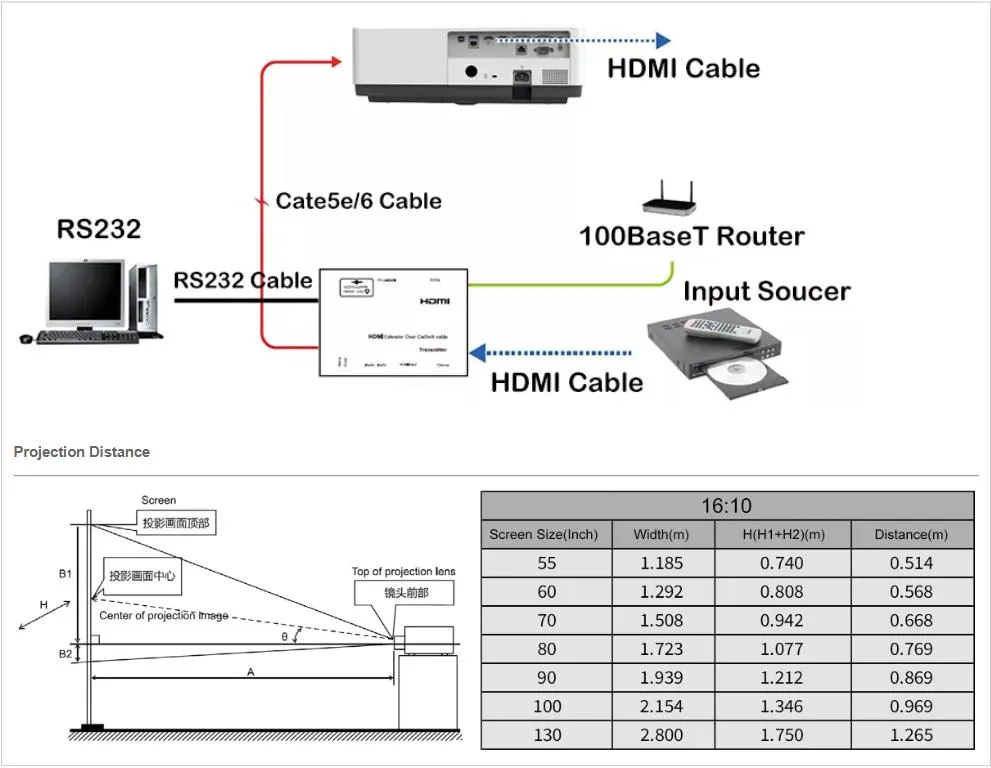

| Throw Ratio | 0.44:1 | |
| Zoom Ratio | N/A | |
| Screen size | 55-300 inch | |
| Lens Shift | N/A | |
| CR | Contrast Ratio (FOFO) |
5000000:1 |
| Noise | Noise(dB) | TGT: 37dB (Normal) 27dB (ECO) |
| Uniformity | Uniformity(Actual Min) -JISX6911 |
80% |
| AR | Aspect Ratio | Native:16:10 Compatible: 4:3/16:9 |

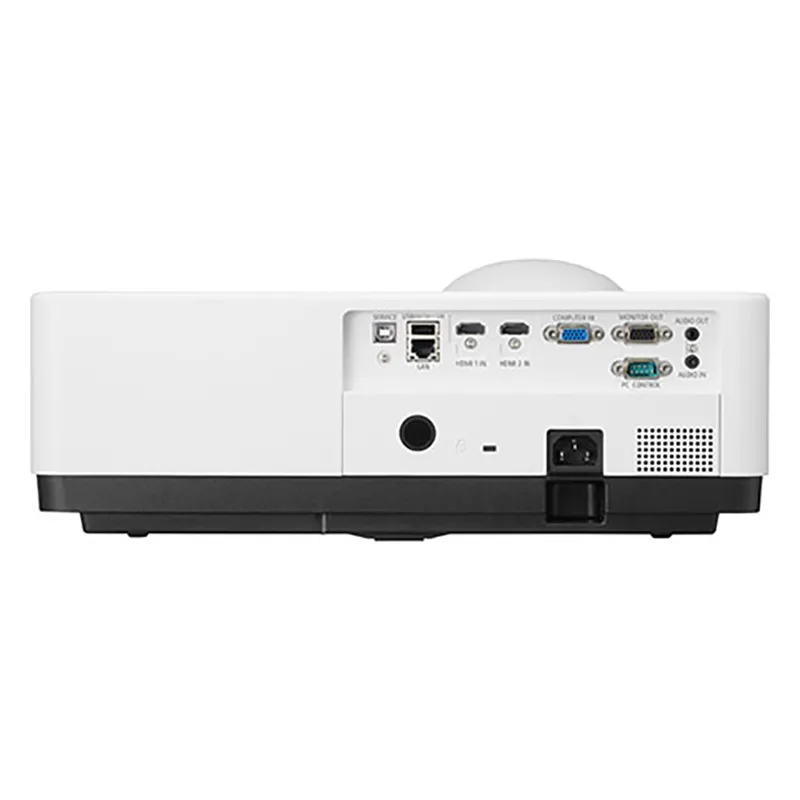

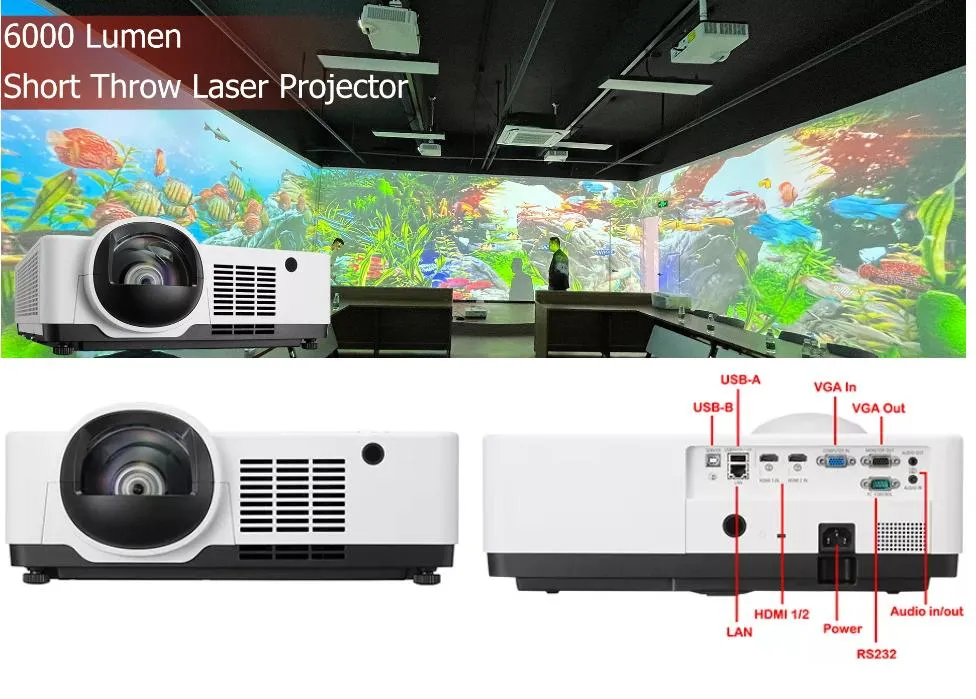

| Terminal(I/O port) | ||
| Input | VGA | *1 |
| HDMI 1.4B(IN) | *2 | |
| USB-A | *1 | |
| USB-B | *1 (Display) | |
| RJ45 | *1 (Display) | |
| DVI-D | N/A | |
| HD BaseT | *1 (Optional) | |
| HD-SDI(3G-SDI) | N/A | |
| Video | N/A | |
| Audio in (mini jack,3.5mm) |
*1 | |
| Output | VGA | *1 |
| HDMI 1.4B(OUT) | N/A | |
| Audio out (mini-jack,3.5mm) |
*1 | |
| Control | RS232 | *1 |
| RJ45 | *1 (Control) | |
| USB-B | *1 (For upgrade) | |
| Wired Remote(IN) | N/A | |
| Wired Remote(OUT) | N/A | |
| General Spec | ||
| Audio | Speaker | 16W*1 |
| Dust filter | W/Filter | |
| Filter Life time | 8000h | |
| Power Consumption |
Power Requeirements | 100~240V@ 50/60Hz |
| Power Consumption (Normal) (Max) |
350 | |
| Power Consumption (ECO1) (Max) |
270 | |
| Power Consumption (ECO2) (Max) |
230 | |
| ECO Standby Mode Power Consumption |
<0.5W | |
| Temp.&Humidity | Operating Temp. | 0 to 40°C |
| Operating Thumidity. | 20-80% | |
| Store Temp. | -10 to 50°C | |
| High altitude | 0~3000m | |
| Other Functions | ||
| Keystone | Keystone Correction (Lens@center) |
V: ±15° H:±15° Pincushion/Barrel Correction 6 Corner Geometry correction 4 Corner Correction Grid image tune |
| OSD | Languages | 26 languages: English, German, French, Italian, Spanish, Polish, Swedish, Dutch ,Portugese, Japanese, Simplified Chinese, Traditional Chinese, Korean, Russian, Arabic, Turkish, Finnish, Norwegian, Danish, Indonesian, Hungarian, Czech, Kazak,Vietnamese,Thai, Farsi |
| LAN Control | LAN Control-RoomView (Crestron) |
Yes |
| LAN Control-- AMX Discovery |
Yes | |
| LAN Control-- PJ Link |
Yes | |
| Scanning Frequency |
H-Synch Range | 15~100KHz |
| V-Synch Range | 24~85Hz | |
| Display Resolution |
Computer Signal Input | VGA, SVGA, XGA, SXGA,WXGA,UXGA,WUXGA,4K@30Hz |
| Video Signal Input | 480i, 480p, 576i, 576p, 720p, 1080i and 1080p | |
| SW setting | Auto Setup | INPUT SEARCH,AUTO PC,Auto Keystone |
| Blank | Yes | |
| Suspend | Yes(5miniutes no singnal as default) | |
| Picture mode | Dynamic, Standard, Cinema, Colorboard, sim-DICOM, Blackboard(Green) |
|
| Cooling time | 0s, Normal,30s | |
| Closed caption | N/A | |
| Auto Ceiling | Yes | |
| D-Zoom | 1~33 | |
| Others | 360° projection | Yes |
| Dimension&Weight | ||
| MAX Dimensions (WxHxD mm) |
405(W)×404(D)×164(H) | |
| Net. Weight (KG) | 8.1kg | |
| Packaging Box Dimensions (WxHxD mm) |
510(W)×498(D)×260(H) | |
| Gross. Weight (KG) | ~10.4KG | |
| Accessory | ||
| Manual Languages | Chinese,English | |
| Standard Accessaries | Power cord (EU)/power cord (Ja) Remote control&RC Battery |
|
| Regulation List | ||
| China | CCC | √ |
| WW | CB | √ |
| US | cTUVus | √ |
| FCC | √ | |
| FDA | √ | |
| EU | CE-EMC | √ |
| CE-LVD | √ | |
| CE-ERP | √ | |
| Laser Security Level | class1 | √ |
| EMC Class | ||
| EMC Class | Class A@3dBm | |
