Midea Side Duct Discharge Multi Zone Cassette Ceiling AC DC 3ton 6HP Inverter Series R410A 50Hz Air Conditioner
$
300.00
/set
Product Details
- Model NO.: M-Duct
- Usage: Room
- Indoor Machine Noise: 36-49dB
- Certification: CE
- China Energy Efficiency Standard: Level 1
Find Similar Products
Basic info
Model NO.
M-Duct
Usage
Room
Indoor Machine Noise
36-49dB
Certification
CE
China Energy Efficiency Standard
Level 1
Cooling/Heating
Cooling/Heating
Power Source
Electrical
Power Type
AC
Condition
New
Trademark
midea
Origin
China
Production Capacity
50000
Product Description

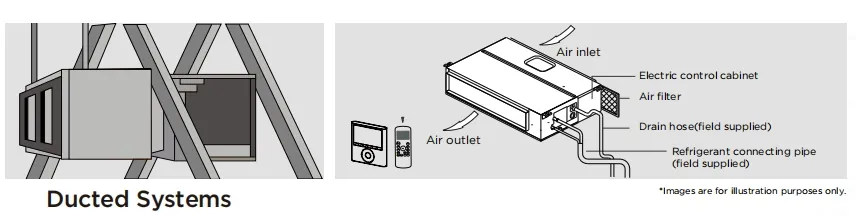

Midea Ducted Systems
Midea Ducted system can provide air conditioning through the air ducts and provide cooling or heating comfort for
the whole house. Since it is concealed in the ceiling, only the wired controller and air grilles are visible inside the
room. Its invisible beauty can fit harmoniously to your interior design and make your room more esthetic, bringing
you more beautiful and comfortable home.
the whole house. Since it is concealed in the ceiling, only the wired controller and air grilles are visible inside the
room. Its invisible beauty can fit harmoniously to your interior design and make your room more esthetic, bringing
you more beautiful and comfortable home.
Specification
Flexible Installation

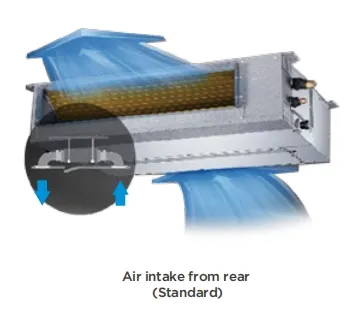

Flexible Air Intake
The frame size of air inlet in rear and bottom is the same.
It's very easy to switch to match different applications.
It's very easy to switch to match different applications.

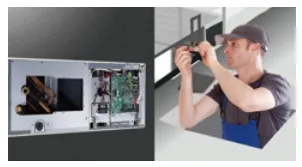

Easy Maintenance
A6 duct allows operators maintain the motor from
the bottom more easily.
A6 duct has big space for maintenance at the side.
the bottom more easily.
A6 duct has big space for maintenance at the side.

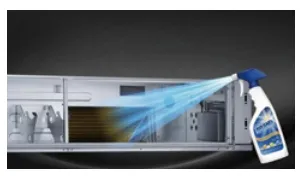

Easy Clean
You can pull out the filter from left, right, or from the bottom for easy
cleaning.
With a larger window design, once the motor and the blower wheels
have been detached, heat exchanger and water receiver tray in behind
can be seen very clearly. Dust can be easily removed from the inside
cleaning.
With a larger window design, once the motor and the blower wheels
have been detached, heat exchanger and water receiver tray in behind
can be seen very clearly. Dust can be easily removed from the inside
Technical Specifications
(Custom configurations available upon request.)
Indoor model |
MTIU-12HWFNX- QRDOW(GA) |
MTIU-18HWFNX- QRDOW(GA) |
MTI-24HWFNX- QRDOW(GA) |
||
Outdoor model |
MOX230-12HFN1- QRDOW(GA) |
MOX330U-18HFN1- QRDOW(GA) |
MOX430-24HDN1 -QW |
||
Power supply(Indoor) |
V-Ph-Hz |
220-240V,1Ph,50Hz |
220-240V1Ph,50Hz |
220-240V1Ph,50Hz |
|
Power supply (Outdoor) |
V- Ph-Hz |
220-240V,1Ph,50Hz |
220-240V1Ph,50Hz |
220-240V1Ph,50Hz |
|
Rating Cooling |
Capacity |
Btu/h |
12000 |
18000 |
24000 |
Input |
1300 |
1720 |
2236 .. |
||
Current |
A |
57 |
7.6 ---. |
10 ---- |
|
EER |
W/W |
2.71 |
3.07 |
3.15 |
|
SEER |
W/W |
6.1 .. |
6.1 .... |
4.8 ... |
|
Rating Heating |
Capacity |
Btu/h |
13000 |
19000 |
26000 .. |
Input |
1050 |
1653 ---. |
2000 .--- |
||
Current |
5.5 |
7.25 |
9.5 |
||
COP |
W/W |
3.63 |
3.37 |
3.81 |
|
SCOP |
W/W |
4.0 |
4.0 |
3.4 |
|
Indoor air flow |
Hi/Mi/LO |
m/h |
600/480/300 |
911/706.3/515.2 |
1229/1035/825.1 |
ESP |
Rated |
Pa |
25 |
25 .--- |
25 |
Range |
Pa |
0-60 |
0-100 |
0-160 |
|
Indoor noise level |
Hi/Mi/LO |
dB(A) |
3B/34/25 |
41/38/34 |
42/39/36 |
Drawings & Dimensions
