Basic info
Model NO.
GK7810A
CPU
4
Standard
DVB-T/S
Function
Terrestrial
Type
DVB
RAM
256MB
Transport Package
Regualar Carton Packing
Specification
200x150x24mm
Trademark
GOSPELL
Origin
China
HS Code
8528718000
Production Capacity
200000 PCS/Year
Product Description

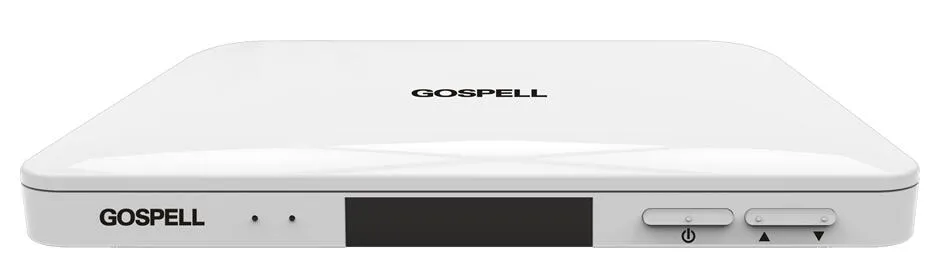

GK7810A
Linux DVB-T2+S2 HD H.264/MPEG-4/MPEG-2/AVS+
Main Features
Technical Specification
Linux DVB-T2+S2 HD H.264/MPEG-4/MPEG-2/AVS+
Main Features
- Fully compliant with DVB- T2+S2 digital TV reception standards
- HDTV/SDTV MPEG-2 & MPEG-4 H.264 decoding
- Support CAS
- Support 480i/480p/576i/576p/720p/1080i/1080p
- HDMI output for High Definition
- Convenient auto search function and blind search
- Capacity for storing up to 2000 transponders and 5000 channels
- Support DVB-S/S2 digital TV signal modulated in QPSK/8PSK
- Input frequency range 950MHz-2150MHz
- Reception for SCPC/MCPC. C/Ku-Band reception
- Support teletext/subtitle/multi-language
- Support 7 days EPG
- Channel edit function including Favorite, Move, Delete, Lock ,Skip,Rename
- Variable aspect ratio (4:3, 16:9) 4:3 Pan & Scan or Letter Box modes
- Support USB2.0 and OTA software upgrade
- Support USB 2.0 PVR. MP3, AVI,DAT,MKV,MP4,MPG,VOB,WMA(optional),BMP, JPG photo playback
Technical Specification
| Chipset and Memory | |
| Chipset model | Hi3716MV330 |
| CPU Speed | 1.0GHz @2500DMIPS |
| SPI Flash | 128MB |
| RAM | DDR3-256MB |
| Power Supply | |
| Power Supply | DC 12V 1A |
| Maximum Power Consumption | 12W (Typ.) |
| Standby power | ≤ 1W |

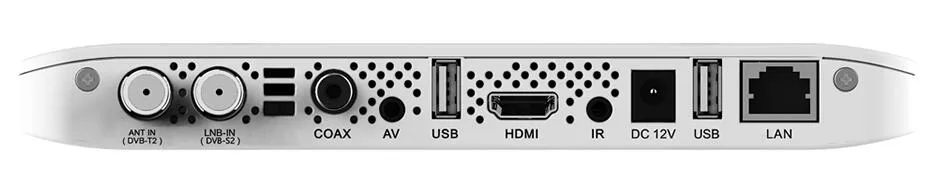

| Interface | |
| RF signal input | X1 |
| LNB signal input | X1 |
| Video output | X1 |
| Audio output | X1 |
| IR | X1 |
| Digital Audio output(coax) | X1 |
| Ethernet | X1 |
| USB 2.0 port | X2 |
| Tuner | |
| Chipset | R848 |
| Compliant with | DVB-T2+S2 |
| Receiving Frequency | 42~1002MHZ / 950~2150MHz |
| LNB Control | DiSEqC1.0/DiSEqC1.2/ DiSEqC1.3/22KHz |
| LNB Power | 13V/18V(Max 350mA) |
| Demodulation | |
| Chipset | AV6862 |
| Compliant with | DVB-S2 |
| Demodulation | QPSK(SCPC/MCPC)/8PSK |
| Symbol rate | 1 ~55MSPS |
| Compliant with | DVB-T2 |
| Demodulation | DQPSK / QPSK / 16QAM /32QAM/ 64QAM/128QAM/256QAM |
| Guard interval Modes | 1/128,1/32,1/16,19/128,19/256,1/8,1/4 |
| Audio Decoding | |
| Compliant with | MPEG-1/2, HE AAC(optional),AC3(optional) |
| Video Decoding | |
| Compliant with | MPEG-4 part10 /MPEG-2 ISO/IEC 13818, |
| MPEG-4 Simple/Main/Advanced Profile@Level3(10Mbps), | |
| MPEG-2 Main Profile@ Main Level(15 Mbps) AVS+ | |
| H.264 MP@L3(10Mbps),H.264 HP@L4.1 (30Mbps) | |
| Aspect ratio | 4:3/16:9 |
| Video format | PAL/NTSC/SECAM |
| Resolution | 480i/480p/576i/576p/720p/1080i/1080p |
| Environmental | |
| Operating Temperature | 0ºC~60ºC |
| Storage Temperature | -20ºC~50ºC |
| Mechanical | |
| Product Dimensions (W x H x D) | 200*150*24mm |
| Product Weight | Approx. 0.6Kg |
Company Show
Welcome to Gospell Digital Technology Co., Ltd
The brands GOSPELL(DTV), XIPOINT(Satellite TV), GONTCERA(GONTCERA Ceramics) have strong brand advantages over others and this company possesses a highly competitive sales and marketing network in the relevant fields.
FAQ
Q1: How to get a sample?
A: Sample order is acceptable. After price confirmation, you can require for samples to check our quality. If you need samples, we will charge for the sample and freight cost. The sample fee will be refunded if you place order.
Q2: What about the lead time?
A: In general, the lead time is about 25 to 35 days. But please confirm the exact delivery time with us as different products and different quantity will have different lead time.
Q3: How about the packing and shipping?
A3: Normally, we have carton for packing. If you have any other special requirements, please feel free to contact with us.
Q4: How about the OEM/ODM services?
A4 : We provide all kinds of OEM/ODM services ,
For example: Logo print on casing ,Customized packing, Software Customization. Please contact us to check the detail things before placing order.
Q5: How about the payment terms?
A5: We accept 30%T/T in advance, the 70% T/T balance before the delivery.
L/C, Money Gram and Western Union are also available.
Q6: How about warranty and procedure?
A6: Warranty time is 12 months. If you have any problem, please contact us in time, we will help you to resolve
the problem.
