Immersive Laser Long Throw 4K 3LCD Video Projector 6500 Lumen
$
2680.00
/set
Product Details
- Model NO.: MX-LK6500
- Brightness: 6500 Lumen
- Working Principle: LCD
- Model NO.: Mx-Lk6500
- Display Technology: Liquid Crystal Display
Find Similar Products
Basic info
Model NO.
MX-LK6500
Brightness
6500 Lumen
Working Principle
LCD
Model NO.
Mx-Lk6500
Display Technology
Liquid Crystal Display
Contrast Ratio
5000000:1
Transport Package
Carton
Specification
405x358x137 mm
Trademark
Windon
Origin
China
HS Code
8528620000
Production Capacity
50000PCS/Month
Product Description

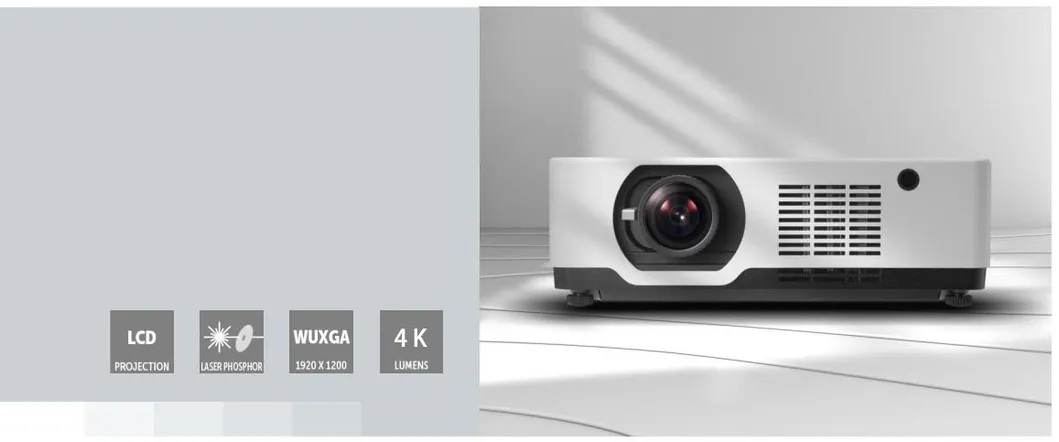

Immersive Laser Long Throw 4K 3LCD Video Projector 6500 lumen
High brightness, color precision and quiet operation, alongside a 1.6x zoom make this projector the ideal solution for a variety of end-user scenarios and professional environments, such as simulation, edge-blending and projection mapping, and immersive installations.Supply wide range of installation possibilities, captivating audiences at museums, entertainment venues and large corporate spaces.The MX-LK6500 Laser Projector is the brightest choice for large venue applications, featuring superior 6,500 ANSI-lumen brightness and 5,000,000:1 contrast ratio for brilliant viewing experiences even under bright ambient lighting. Laser engine delivers superior color performance , support for 360° proejction and portrait installation, and 24/7 operation with dramatically improved durability for diverse application opportunities.
The added control flexibility of HDBaseT and LAN make this projector an affordable install and forget solution.
| Key parts | ||
| Lens Maker | RICOH Lens | |
| Throw Ratio | 1.08(wide)-1.76(tele) | |
| Zoom Ratio | 1.6X Zoom | |
| Light source | NICHIA LASER | |
| Brightness | ||
| Brightness | 6500Lumen | |
| Overall Spec | ||
| Panel | Display Panel | 3x0.64" with MLA |
| Display Technology | Liquid Crystal Display | |
| Resolution | 4K Enhancement | |

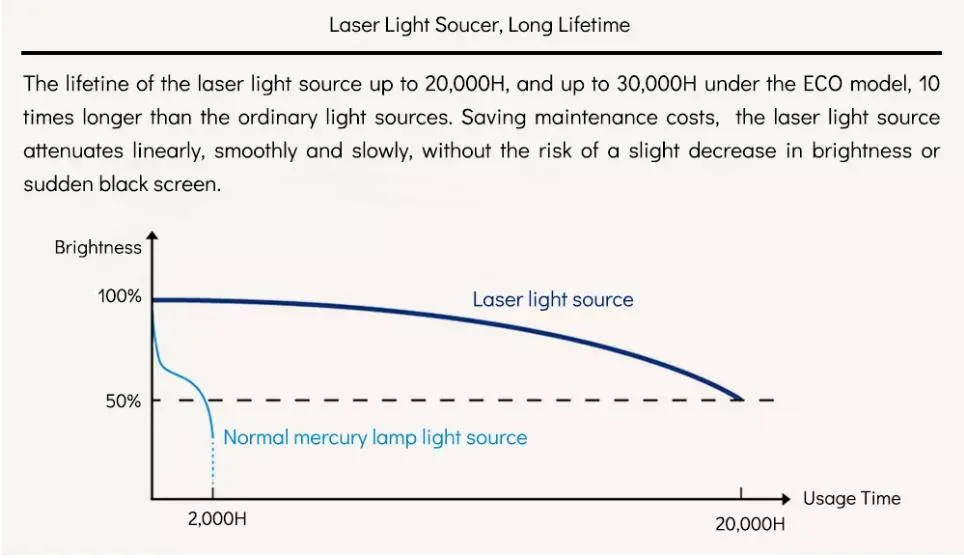

| Light source Life time | Normal mode | 20000hrs |
| ECO mode | 30000hrs | |
| Projection Lens | Lens Vendor | RICOH Lens |
| F | 1.58~2.02 | |
| f | 15.3mm-24.6mm | |
| Zoom/Focus | Manual | |
| Throw Ratio | 1.2(wide)-2.0(tele) | |
| Zoom Ratio | 1.6 | |
| Screen size | 30-300 inch | |
| Lens Shift | V:+55%~0% H:±22% |
|
| CR | Contrast Ratio | 5000000:1 |
| Noise | Noise(dB) TBD | 38dB(Normal) 30dB(ECO1) 28dB(ECO2) |
| Uniformity | Uniformity-JBMA | 80% |
| AR | Aspect Ratio | Compatible: 4:3/16:10 |
| Terminal(I/O port) | ||
| Input | VGA | N/A |
| HDMI 2.1(IN) | *2 | |
| USB-A | *2 | |
| RJ45 | *1 | |
| HD BaseT | *1(Optional) | |
| RS232C | *1 | |
| Output | Audio port | S/PDIF*1 |
| Audio out (mini jack,3.5mm) |
*1 | |
| Control | RJ45 | *1 (Control) |
| General Spec | ||
| Audio | Speaker | 16W*1 |
| Dust filter | W/Filter | |
| Filter Life time | 8000h | |
| Power Consumption | Power Requeirements | 100~240V@ 50/60Hz |
| Power Consumption (Normal) (Max) |
435 | |
| Power Consumption (ECO)(Max) |
240 | |
| ECO Standby Mode Power Consumption |
<0.5W | |
| Temp.&Humidity | Operating Temp. | 0 to 40°C |
| Operating Thumidity. | 20-85% | |
| Store Temp. | -10 to 50°C | |
| High altitude | 0~3000m | |
| Other Functions | ||

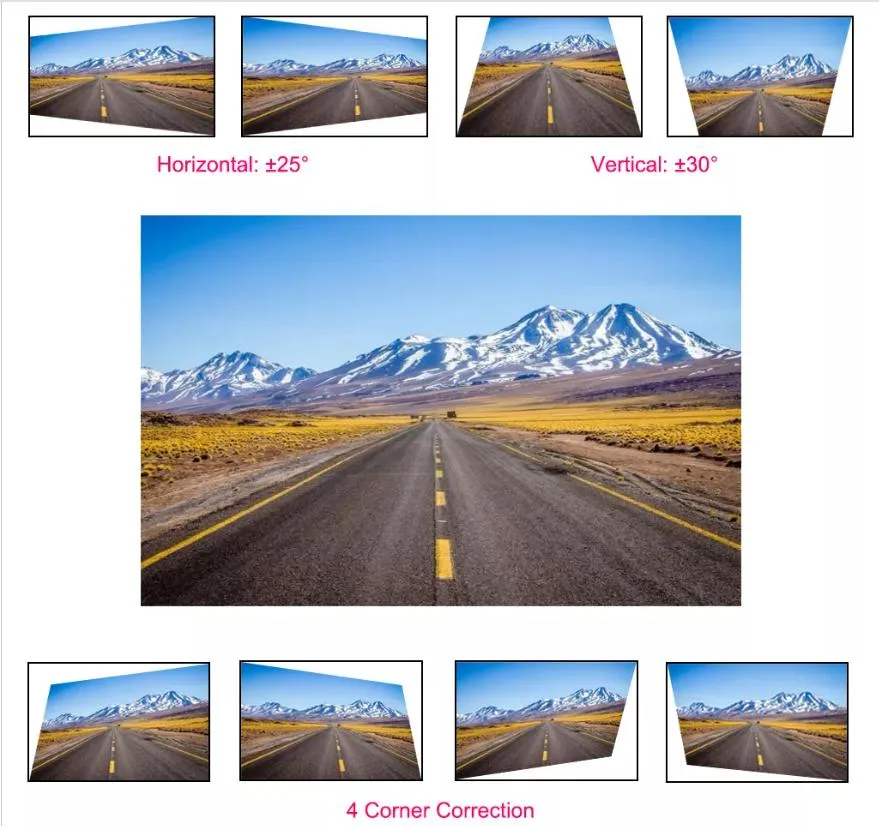

| Keystone | Keystone Correction (Lens@center) |
V: ±30° H:±25° 4 Corner Correction |
| OSD | Languages | English, Chinese, |
| LAN Control | LAN Control-- PJ Link | Yes |
| Scanning Frequency | H-Synch Range | 15~100KHz |
| V-Synch Range | 24~85Hz | |
| Display Resolution | Video Signal Input | up to 3840x2160/60Hz |
| Voice control | Near-field RC voice | |
| Bluetooth | Bluetooth Version 5.0 | |
| Wireless Projection Function | Optional | |
| lamp mode | Normal/ECO | |
| Light source brightness | 50-100% | |
| High altitude | Yes | |
| Auto Ceiling | Yes | |
| HDR10 | Support | |
| 360° free viewing | Support | |
| Standby mode | Energy-efficient | |
| Dimension&Weight | ||
| MAX Dimensions (WxDxH mm) |
405 (W)*358(D)*137(H) | |
| Net. Weight (KG) | ~7.9KG | |
| Packaging Box Dimensions (WxDxH mm) |
510 (W)*498(D)*260(H) | |
| Gross. Weight (KG) | ~10.4KG | |
| Accessory | ||
| Manual Languages | Chinese,English | |
| Standard Accessaries | Power Cord,Remote control&RC Battery | |
