Basic info
Model NO.
OX-MP12
Brightness
>2500 Lumens
Working Principle
DLP
Contrast
500:1
Transport Package
OEM
Specification
11.1x10.4x10.6cm
Trademark
OEM
Origin
Shenzhen
Production Capacity
5000PCS/Month
Product Description
Home Theater DLP Smart Projector
Parameters
| Projection Specification | |
| Projection Technology | DLP(0.3" 720P DMD) |
| Projection Light | RGB LED OSRAM Q6 |
| Light Life | Up to 20,000 hours |
| Light Luminance | 200 Lumens |
| Light Type | LED |
| Standard Resolution | 1280*720 |
| Projection Area | 10-300 inch |
| Contrast | 1000:1 |

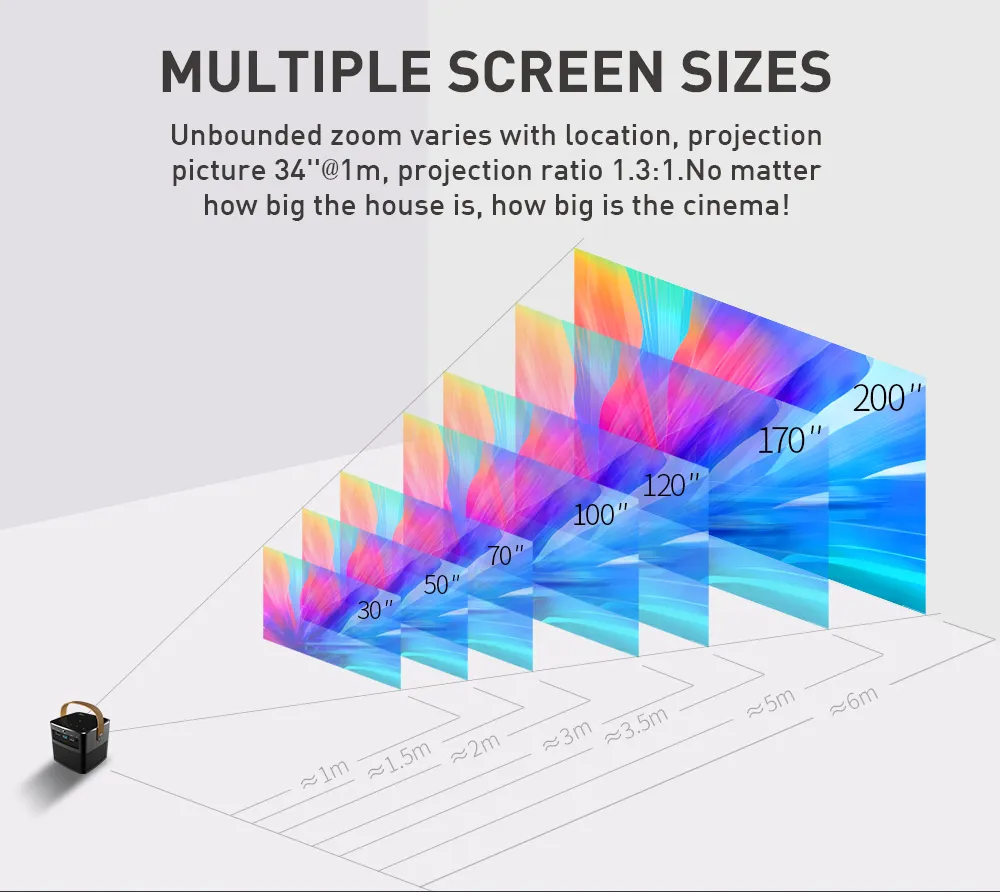

| Projection Ratio | 1.3:1(34 inch@1M) |
| Distortion | <1.5% |
| Luminance Uniformity | 90% |
| Projection Distance | 1-8m |
| Aspect Ratio | 16:9 |
| Focus mode | Manual focus |
| Keystone Correction | Vertical ±45 degree,Horizontal ±40 degree,Multi angle adjustment |
| Projector Character | Interaction |
| Projection Mode | Front Projection |
| Offset function | 100% |
| 3D | YES |
| System Parameters | |
| Screen Mirror | Airplay/MiraCast |
| OS | Android 9.0 |
| CPU | T972(Amlogic) |
| Basic Frequency | Quad Core ARM Cortex-A55 CPU |
| GPU | ARM Mali-G31 MP2 GPU |
| Buffer Memory | 2GB LPDDR4 |
| Memory | 16GB EMMC |
| WIFI | 2.4G/5G |
| Bluetooth | BT 4.2 |
| Basic parameters | |
| Built-in Battery | 9000mAh=2*4500mAh (4500mAh 7.4V 33.3Wh) |
| Usage time | work for about 2 hours |
| Video Support(up to 4K) | VP9-10,H.265,H.264,MPEG-4,WMV/VC-1,MPEG-2,MPEG-1,RealVideo 8/9/10 etc. |
| Audio Support | MP3,WMA,MP2,OGG,AAC,M4A,MA4,FLAC,APE,3GP,WAV |
| Image Support | Supports variety of image formats browsing (jpg, png, bmp etc.) |
| Extended Storage | Support TF Card and Hard Disk |

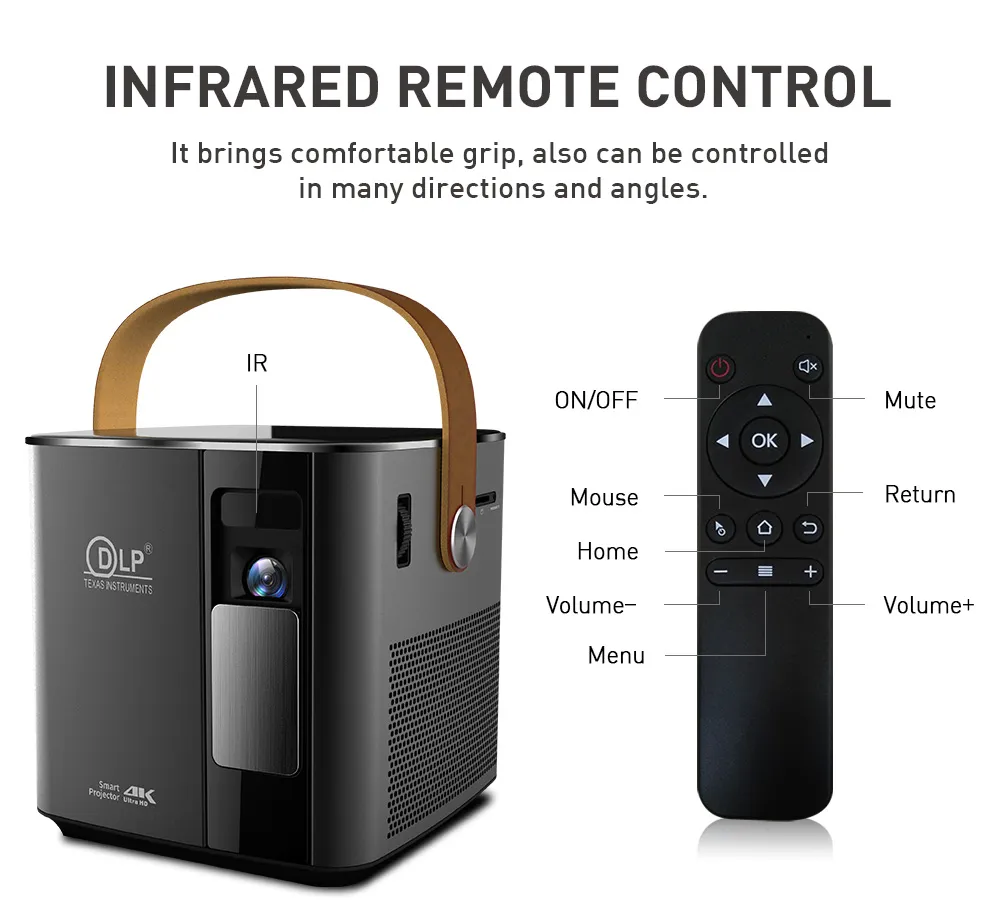

| Remote Control | Support IR and 2.4G wireless control |

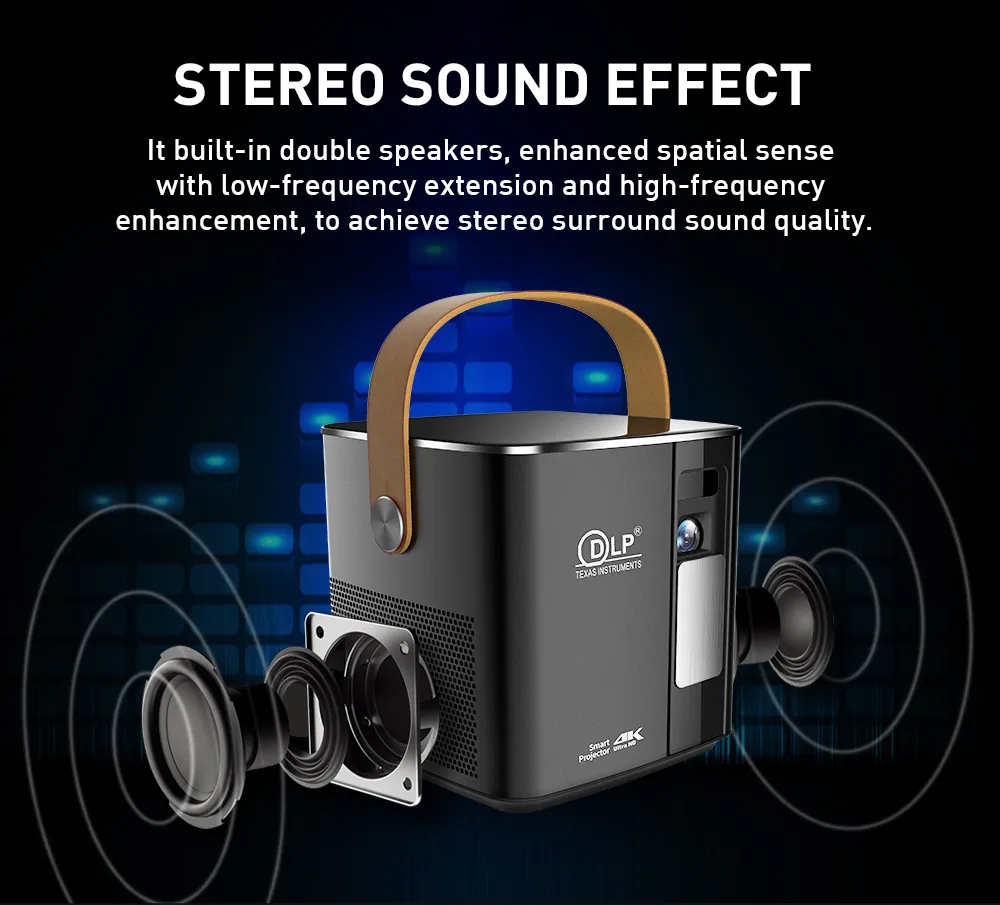

| Built-in speaker | two 2W speaker |
| Light machine Consumption | 13W |
| Whole Power Consumption | 24W |
| Power Performance | AC100-240V,50/60Hz, DC 12V 4A |
| Interface | 1*TF Card: Max 32GB |
| 1*HDMI: HDMI Input 1.4 | |
| 2*USB: USB OTG+USB host, Support USB hard disk data read | |
| 1*Earphone: Audio output, 3.5mm joint (can connect with earphone or speaker box) | |
| 1* DC input: DC 12V 4A | |
| Package | |
| Colour | Gray |
| Net weight | 632g |
| Dimension | 11.1x10.4x10.6cm |
| Gift Box weight | 1.4kg |
| Gift Box Size | 21x14.5x11cm |
| Carton box weight | 9.1kg (6pcs) |
| Carton box size | 48.5x24x25.5cm (6pcs) |
Features

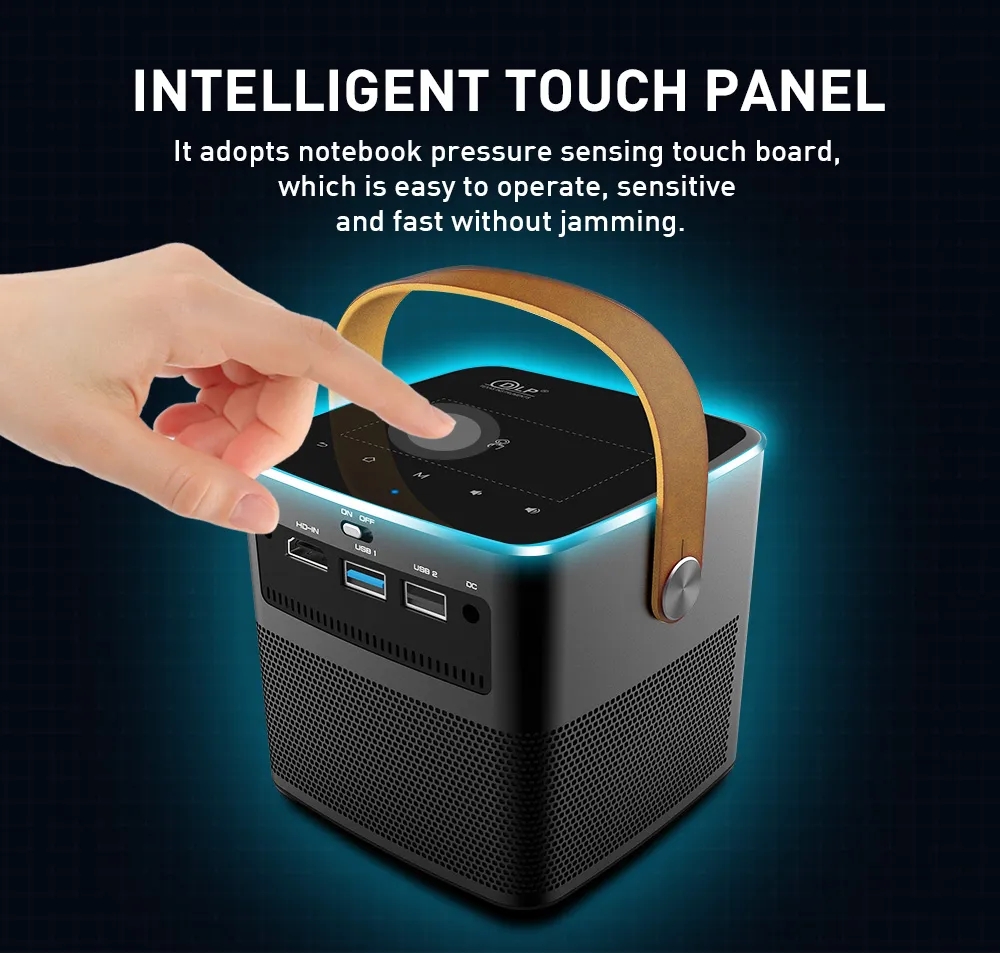

DLP 180 lumens; 720P/3D/4K decoding Amlogic T972 android 9.0 system; HDMI input; 2.4/5G wifi (2T2R); up and down trapezoid automatic correction + four corner correction + zoom; infrared remote control; Android & IOS wireless same screen touch and button two All-in-one panel

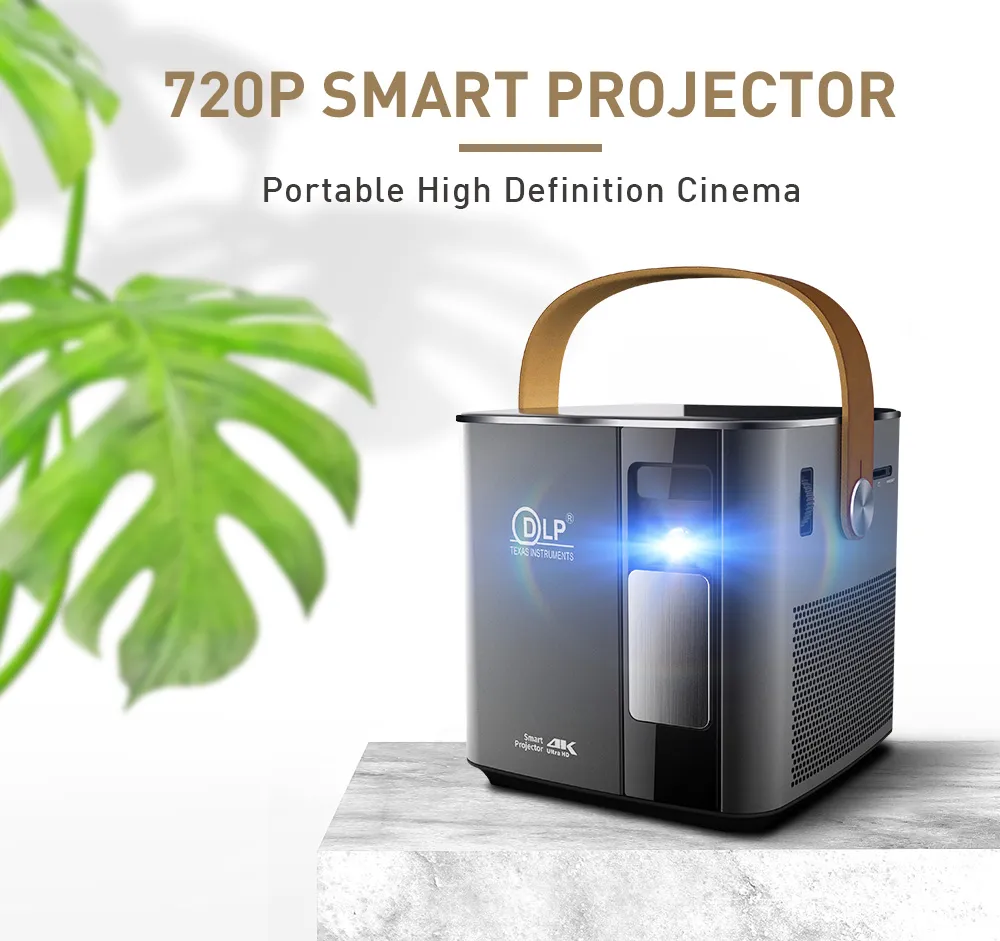

Product show
