Find Similar Products
Basic info
Model NO.
GK7265D-P
CPU
4
Standard
Andoid DVB TV Box
Function
IPTV, Internet TV Box
Type
Smart TV Box
RAM
DDR3-1GB
Operation System
Android 7.0
Transport Package
Regualar Carton Packing
Specification
210mm x 12mm x 32mm
Trademark
GOSPELL
Origin
China
HS Code
85287180
Production Capacity
200000 PCS/Year
Product Description
Technical Specification
| Chipset and Memory | |
| Chipset model | Hi3798MV200 |
| CPU Speed | 2.0GHz @25000DMIPS |
| Emmc Flash | 8GB/16GB |
| RAM | DDR3-1GB |
| Power Supply | |
| Power Supply | DC 12V 1A |
| Maximum Power Consumption | 18W (Typ.) |
| Standby power | ≤ 1W |

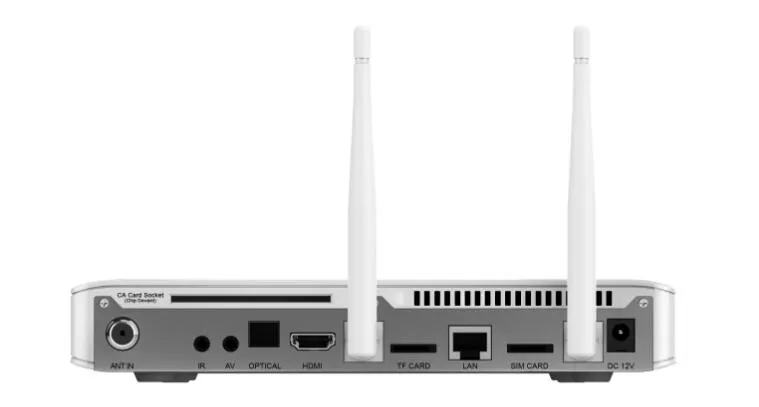

| Interface | |
| ANT IN | X1 |
| IR | X1 |
| AV out | X1 |
| HDMI | X1 |
| Digital Audio output(S/PDIF) | X1 (Optical ) |
| USB port | X2(USB 2.0),X1(USB3.0) |
| TF card | X1 |
| LAN | X1 |
| SIM card | X1 |
| WIFI | X2( 2.4G&5G) |
| Built-in modules | |
| Bluetooth 4.0 | Optional |
| 4G module | WCDMA:B1/B8 EVDO&CDMA:BC0 GSM:900/1800 LTE-FDD:B1/B3/B5/B7/B8 LTE-TDD:B38/B38/B40/B41 TD-SCDMA:B34/B39 |
| Tuner | |
| Chipset | MXL608 |
| Comploant with | DVB-T/T2 |
| Receiving Frequency | 44MHz-866MHz |
| Demodulation | |
| Chinpset | AVL6762 |
| Compliant with | DVB-T/T2 |
| Demodulation | 4QAM/16QAM/64QAM/256QAM |
| IF bandwidth | 1.7M/5M/6M/7M/8M |
| Audio Decoding | |
| Compliant with | MPEG-1/2, HE AAC(optional),AC3(optional) |
| Video Decoding | |
| Compliant with | MPEG2 MP@HL,MPEG4 SP@L0-3,ASP@L0-5,H.264 HM@L4.1AVS MP@L6.0 / H.265 Main Profle@l5.0 High-tier,maximum 4K x 2K@60 fps 10-bit decoding |
| Aspect ratio | 4:3/16:9 |
| Video format | PAL/NTSC/SECAM |
| Resolution | 480i/480p/576i/576p/720p/1080i/1080p/4Kx2K@60fps |
| Wireless | |
| Wireless Frequency | 2.4&5GHz |
| Wireless Standards | IEEE 802.11a/ b/g/n , 802.11ac |
| Environmental | |
| Operating Temperature | 0ºC~60ºC |
| Storage Temperature | -20ºC~50ºC |
| Mechanical | |
| Product Dimensions (W x H x D) | 210mm x 12mm x 32mm |
| Product Weight | Approx. 0.6Kg |
Welcome to Gospell Digital Technology Co., Ltd
The brands GOSPELL(DTV), XIPOINT(Satellite TV), GONTCERA(GONTCERA Ceramics) have strong brand advantages over others and this company possesses a highly competitive sales and marketing network in the relevant fields.
FAQ
Q1: How to get a sample?
A: Sample order is acceptable. After price confirmation, you can require for samples to check our quality. If you need samples, we will charge for the sample and freight cost. The sample fee will be refunded if you place order.
Q2: What about the lead time?
A: In general, the lead time is about 25 to 35 days. But please confirm the exact delivery time with us as different products and different quantity will have different lead time.
Q3: How about the packing and shipping?
A3: Normally, we have carton for packing. If you have any other special requirements, please feel free to contact with us.
Q4: How about the OEM/ODM services?
A4 : We provide all kinds of OEM/ODM services ,
For example: Logo print on casing ,Customized packing, Software Customization. Please contact us to check the detail things before placing order.
Q5: How about the payment terms?
A5: We accept 30%T/T in advance, the 70% T/T balance before the delivery.
L/C, Money Gram and Western Union are also available.
Q6: How about warranty and procedure?
A6: Warranty time is 12 months. If you have any problem, please contact us in time, we will help you to resolve
the problem.
