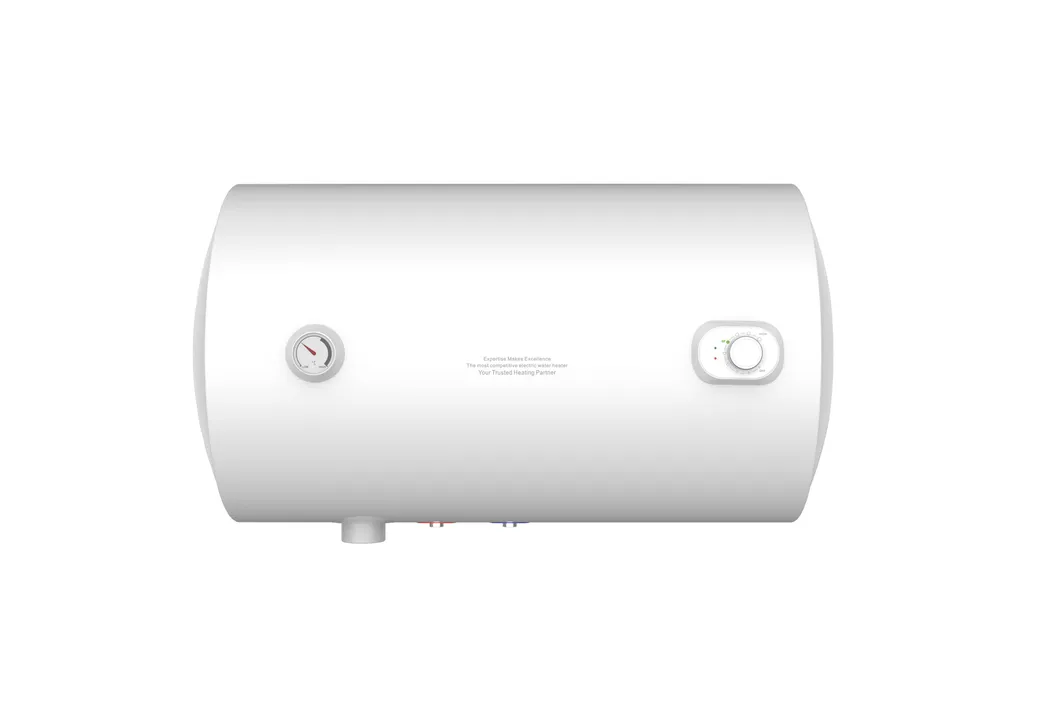

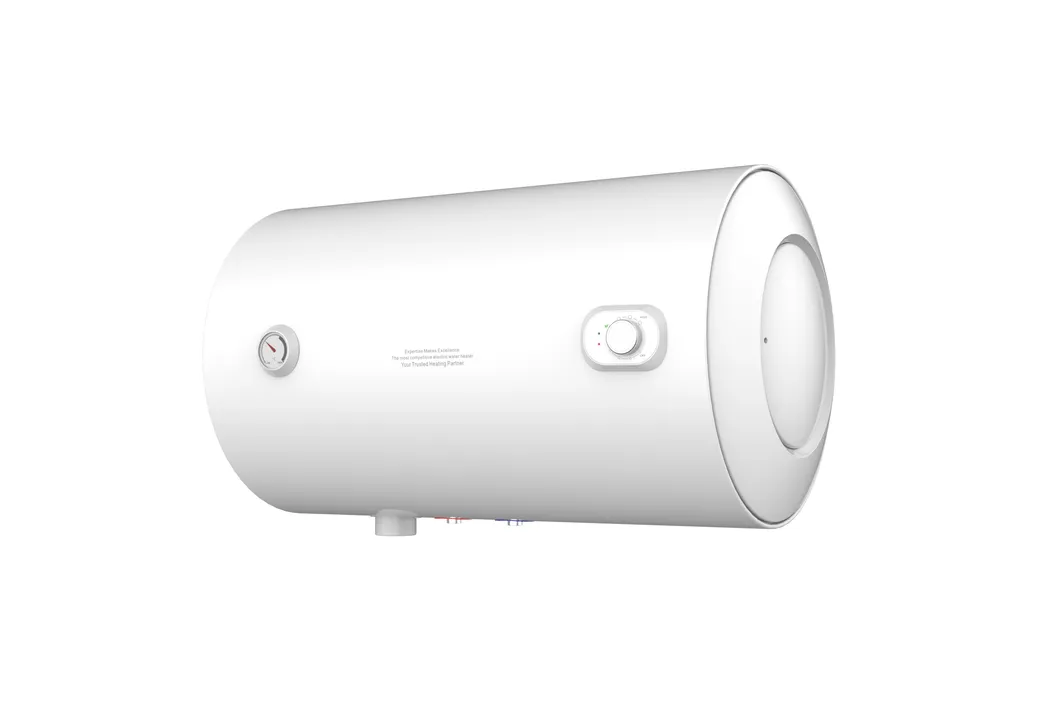

Electric Glass Lined Enamel Coating Horizontal Storage Water Heater for Bath Shower
$
50.00
/set
Product Details
- Model NO.: D50-15US1
- Installation: Horizontal Type
- Pressure: Pressurized
- Control Mode: Mechanical
- Interior Material: SPCC
Find Similar Products
Basic info
Model NO.
D50-15US1
Installation
Horizontal Type
Pressure
Pressurized
Control Mode
Mechanical
Interior Material
SPCC
Usage
Bathroom, Kitchen
Certification
CE, RoHS
Working Pressure
0.75MPa
Transport Package
Inner Gift Box, Outer Master Carton Box
Specification
Power: 2000W
Trademark
Markevina or OEM
Origin
China
Production Capacity
1000000/Year
Package Size
50.00cm * 30.00cm * 30.00cm
Package Gross Weight
5.000kg
Product Description
Electric Glass Lined Enamel Coating Storage Water Heater 30L/50L/80L/100L for Bath Shower
Product Features
1) Compact Size
2) Saving Money & Space
Loading qty is up to 20% more than other series, it helps a lot to save freight cost and storage space.
2) Saving Money & Space
3) ROD Thermostat: Two in One
4) Overheat Protection
5) Easy Installation & Maintenance
Product Specification
| Capacity | 30L | 50L | 80L | 100L |
| Installation | Horizontal wall mounted | Horizontal wall mounted | Horizontal wall mounted | Horizontal wall mounted |
| Control type | Manual Control | Manual Control | Manual Control | Manual Control |
| Net weight (kg)(Tolerance±10%) | 13.8 | 17.1 | 23.7 | 28.7 |
| Rated power | 1500W | 1500W | 1500W | 1500W |
| Rated voltage | 220-240V~ | 220-240V~ | 220-240V~ | 220-240V~ |
| Rated frequency | 50Hz/60Hz | 50Hz/60Hz | 50Hz/60Hz | 50Hz/60Hz |
| Rated current | 6.5A | 6.5A | 6.5A | 6.5A |
| Temperature range | 30ºC to 75ºC | 30ºC to 75ºC | 30ºC to 75ºC | 30ºC to 75ºC |
| Protection against humidity | IPX4 | IPX4 | IPX4 | IPX4 |
| Working Pressure | 0.7MPa | 0.7MPa | 0.7MPa | 0.7MPa |
| Carton size (mm) | 410*410*700 | 465*465*845 | 535*535*905 | 545*545*1055(with bottom base) |
| 20' / 40'GP / 40'HQ | 246/500/556 | 157/327/359 | 108/228/244 | 88/176/212 |
| Warranty: | 5 years for the inner tank, 1 year for electric components. | 5 years for the inner tank, 1 year for electric components. | 5 years for the inner tank, 1 year for electric components. | 5 years for the inner tank, 1 year for electric components. |
