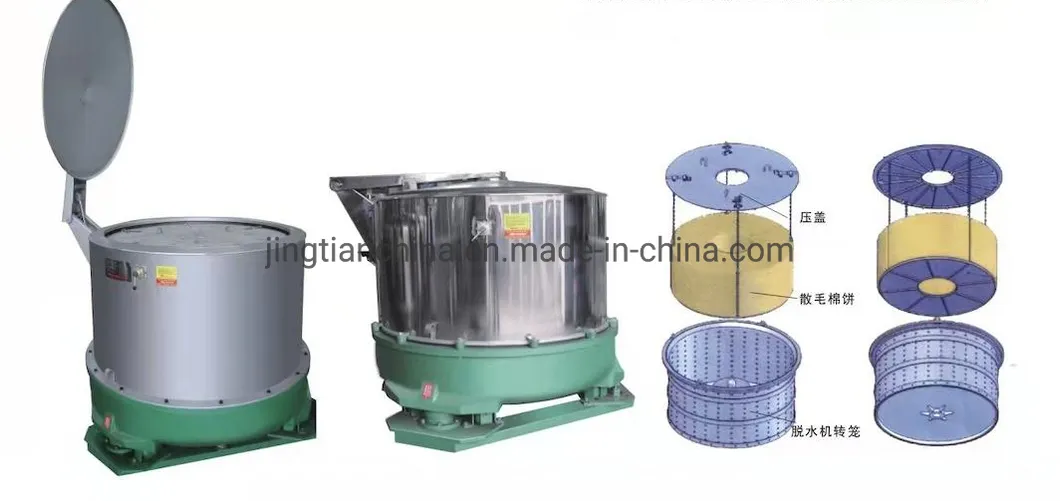

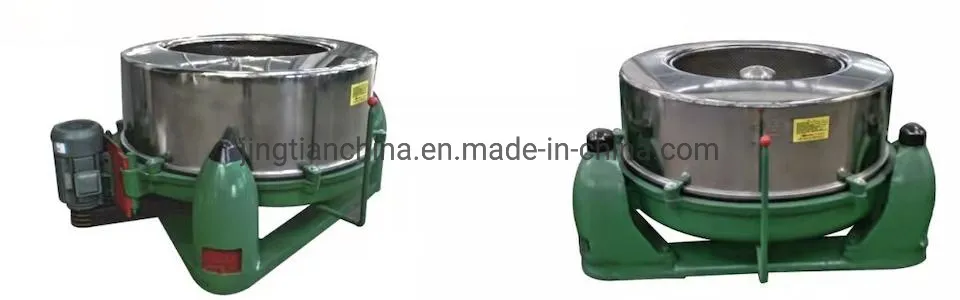

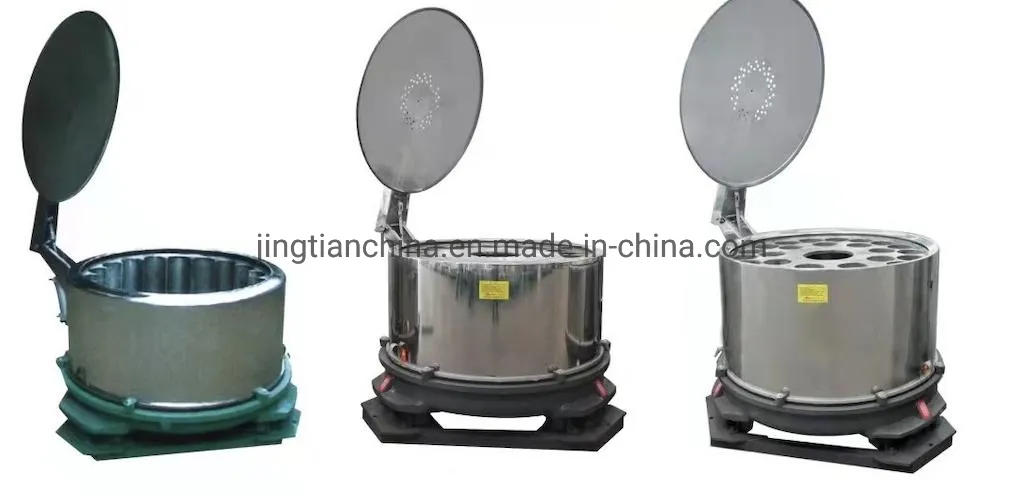

Centrifugal Hydro Washer Extractor for Textile Clothes Carpet Stainless Steel
$
950.00
/set
Product Details
- Model NO.: XGZ SERIES
- Specification: 2500X2550X1600mm, 800, 1000, 2000, 2200
- Net Weight: 1000kg
- Transport Package: Wooden Package
- Trademark: JTFTEX
Find Similar Products
Basic info
Model NO.
XGZ SERIES
Specification
2500X2550X1600mm, 800, 1000, 2000, 2200
Net Weight
1000kg
Transport Package
Wooden Package
Trademark
JTFTEX
Origin
China
HS Code
8421129000
Production Capacity
3000set/Year
Product Description
The Commercial Washing Machine Extractor/ water hydro extractor hydro washing machine is equipped with a brake system that allows reliable brake drum. The product can also be used for the dehydration of other small parts,but can be used to take a long time to separate particles and coarse particles in suspension. Cylinder made of stainless steel,acid, alkali resistance,durable long life.
Product Advantages:
1) Applicable for yarn, woven fabrics, garments, tow and dehyd rated in the textile industry.
2) High quality stainless steel inner, outer cage, beautiful and strong, long service life.
3) It adopts advanced frequency conversion technology, adjustable speed, automatic timing and energy saving.
4) Adopt frequency conversion automatic brake and abandon mechanical brake, so as to greatly reduce the mechanical maintenance rate.
5) The other option: can be matched for weaving knitting cloth dewatering and design offull stainless steel falling frame, operation more convenient.
6) The motor will start with slow speed then to the required speed gradually. Then drum will be driven by triangle rubber belt, running smoothly and synchronously.
7) Stainless steel inner drum and body.
Technical parameters
| Model | XGZ-800 | XGZ-1000 | XGZ-1200 | XGZ1260 | XGZ-1500 | XGZ-1800 | XGZ-2000 | XGZ02200 |
| Rotating cage diameter | 800 | 1000 | 1200 | 1260 | 1500 | 1800 | 2000 | 2200 |
| Volume(green weight) | 80 | 100 | 150 | 250 | 500 | 800 | 1000 | 1100 |
| Rotating cage height | 380 | 380 | 450 | 600 | 700 | 880 | 920 | 920 |
| Power(KW) | 4 | 5.5 | 7.5 | 11 | 11 | 15 | 18.5 | 22 |
| Rotate speed | 750-960 | 750-960 | 750 | 600-750 | 550-600 | 550-600 | 500-550 | 500-550 |
| Dimension | 1380X1400X950 | 1560X1600X1000 | 1700X1750X1000 | 1800X2150X1300 | 2100X2150X1300 | 2300X2450X1600 | 2400X2450X1600 | 2500X2550X1600 |
Q: Why Choose Our Company?
Jingtian Textile Machinery Co., Ltd. (founded in 1991) is a key backbone production enterprise in China's textile machinery manufacturing industry. It has a long history and experience in independent development and production of textile machinery products. It has a first-class R & D center and scientific and technological development team. It is an enterprise that has passed ISO9001 quality system certification earlier in the industry. At present, the company has 20 subsidiary companies with nearly 300 employees. Diversified products, standardized corporate governance structure and flexible business mechanism have injected new vitality into the development of the company.Q: How's the after-sale service?
We offer engineers available to service overseas under merchandiser's supervision and translation.
Q: Are you available for on-the-spot invitation?
Q: Is the price offered changeable?
Q: How about the quality?
We have an intelligent manufacturing system.
Q: Are you a manufacturer or Trade Company?
Q: Product /Quality Guarantee and After Sale Service?
Q: One-stop Service:
Q: Certification?
JingTian is an ISO9001, ISO14001 company. The products are designed to meet the technical standards of 3C and CE. All the products are certified by the Industry Administration Authority. JINGTIAN will continue to strive to be a stronger leader in the global market of Cotton machinery and Spinning machinery.
