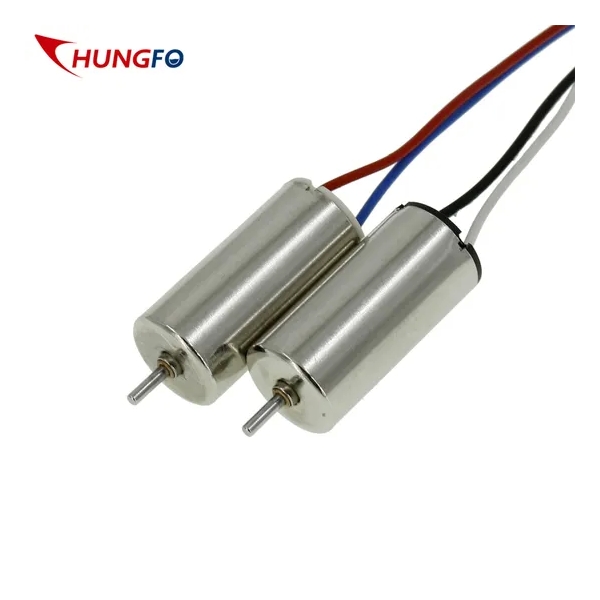

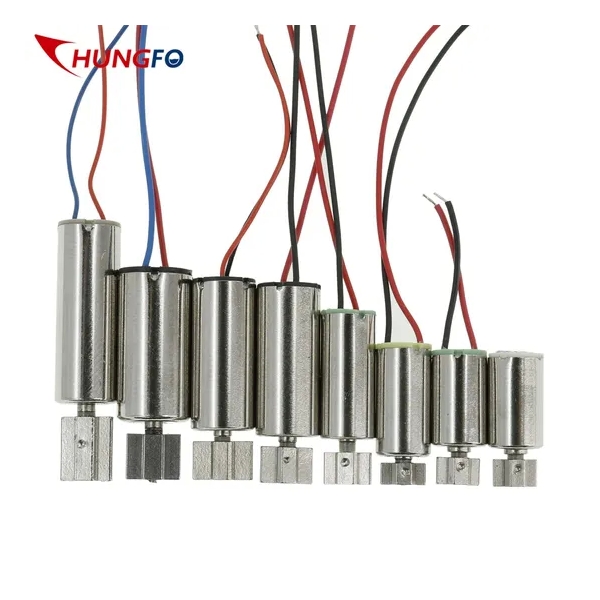

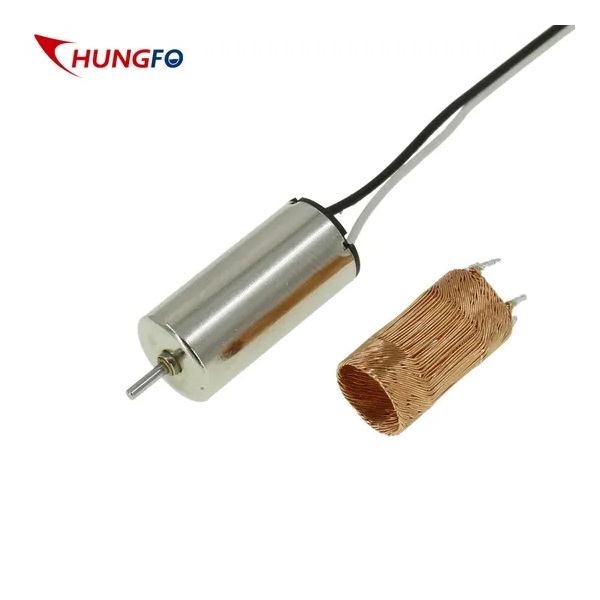

10mm DC Brushes Coreless Mini Spindle Motor for Hair Dryer
$
1.20
/set
Product Details
- Model NO.: 10B1015
- Function: Control, Driving
- Casing Protection: Closed Type
- Certification: ISO9001
- Transport Package: Standard Export Carton
Find Similar Products
Basic info
Model NO.
10B1015
Function
Control, Driving
Casing Protection
Closed Type
Certification
ISO9001
Transport Package
Standard Export Carton
Specification
10mm x L15
Trademark
CHUNGFO
Origin
China
HS Code
8501109990
Production Capacity
4 Million PCS/Month
Product Description
| 10B Series φ10mm x L15 Precious Metal Brushes |
| Motor Paramter | Motor Model | |||||||||||
| Values at nominal voltage | 10B1NA- 040121 |
|||||||||||
| 1 | Rated voltage | V | 7.4 | |||||||||
| Free Load | 2 | No load speed | rpm | 60462 | ||||||||
| 3 | No load current | mA | 112 | |||||||||
| At Max. Efficiency | 4 | Max. efficiency | % | 67.42% | ||||||||
| 5 | Speed | rpm | 51254 | |||||||||
| 6 | Current | mA | 6223 | |||||||||
| 7 | Torque | g.cm | 5.9 | |||||||||
| At Max. Output | 8 | Max. output | W | 6.01 | ||||||||
| 9 | Speed | rpm | 30231 | |||||||||
| 10 | Current | mA | 1788 | |||||||||
| 11 | Torque | g.cm | 19.38 | |||||||||
| At Stall | 12 | Stall current | A | 3.45 | ||||||||
| 13 | Stall torque | g.cm | 38.76 | |||||||||
| Motor Constants | ||||||||||||
| 14 | Teminal resistance | Ω | 1.75 | |||||||||
| 15 | Torque constant | g.cm/A | 11.562 | |||||||||
| 16 | Speed constant | rpm/V | 8443 | |||||||||
| 17 | Speed/Torque constant | rpm/g.cm | 1559.7 | |||||||||

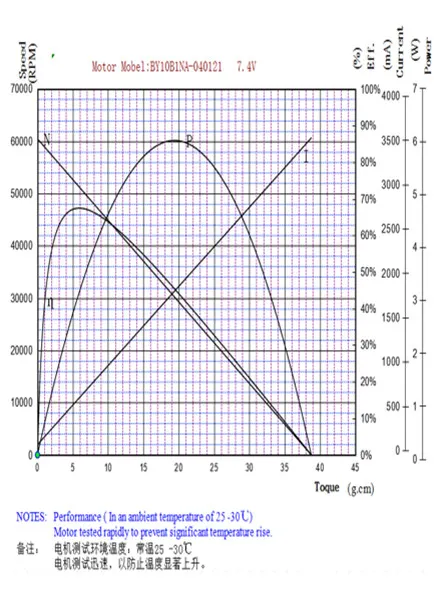

| Motor Characteristic | Typical Performance | ||||||||||||||||
| Thermal parameters |
|
||||||||||||||||
| 18 | Ambient temperature | -20~+65 | ºC | ||||||||||||||
| 19 | Max. permissible winding temperature | 85 | ºC | ||||||||||||||
| Mechanical parameters | |||||||||||||||||
| 20 | Max. penmissible No-load speed | 50000 | rpm | ||||||||||||||
| 21 | Max. axial load(dynamic) | 0.15 | N | ||||||||||||||
| Other parameters | |||||||||||||||||
| 22 | Number of pole pairs | 1 | |||||||||||||||
| 23 | Number of commutator segments | 3~5 | |||||||||||||||
| 24 | Weight | 5.8 | g | ||||||||||||||
| Remarks | |||||||||||||||||
| 1 | Rotation direction, wire specification and performance parameters can be | ||||||||||||||||
| made according to customer's requirement. | |||||||||||||||||
| 2 | Motor can be mounted with various shapes and sizes of eccentric weight which | ||||||||||||||||
| is made of iron, brass or ferro-alloy to become vibration motor. | |||||||||||||||||

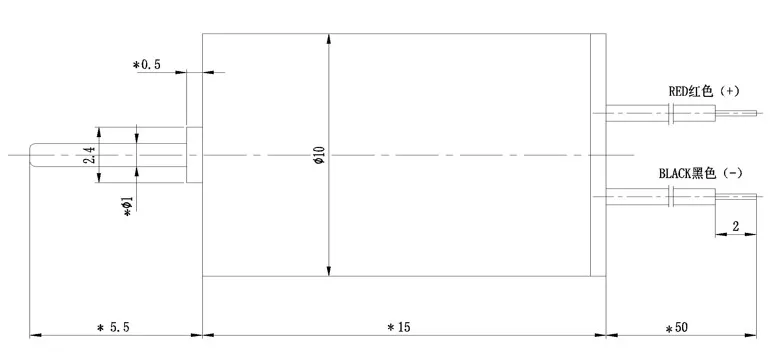

| 3 | Dimension with "*" in the drawing can be adjusted according to customer's requirement. | ||||||||||||||||
| 1g=0.035oz 1inch=25.4mm 1g.cm=0.098mN.m 1oz=28.35g 1mm=0.0394inch 1mN.m=10.2g.cm | |||||||||||||||||

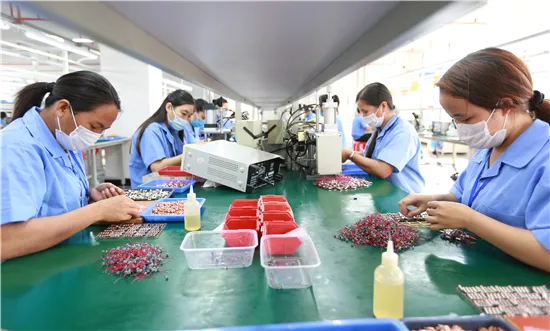

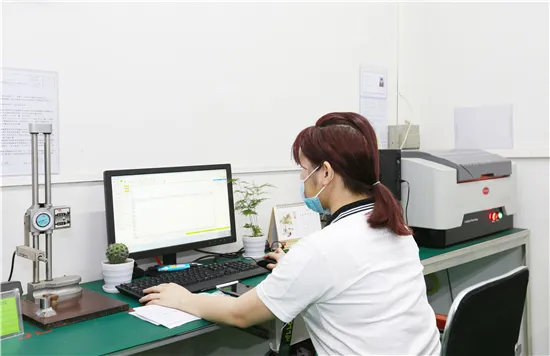

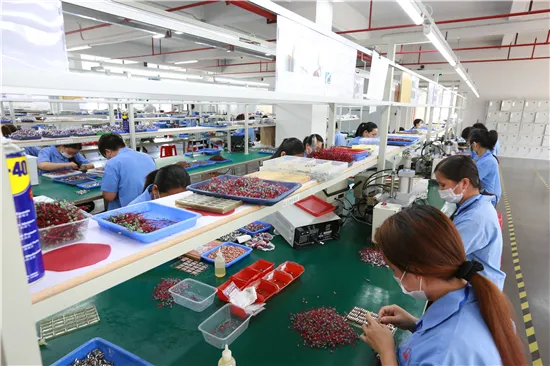

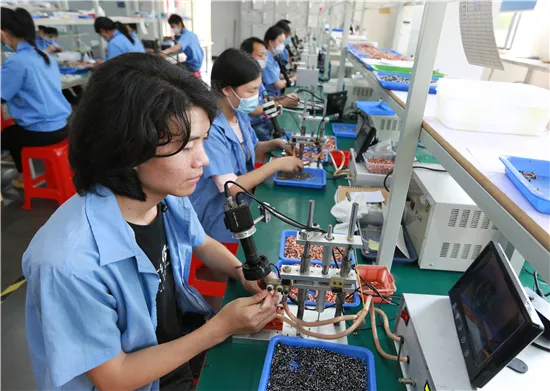

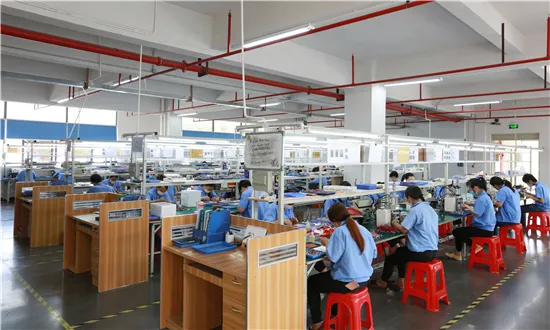

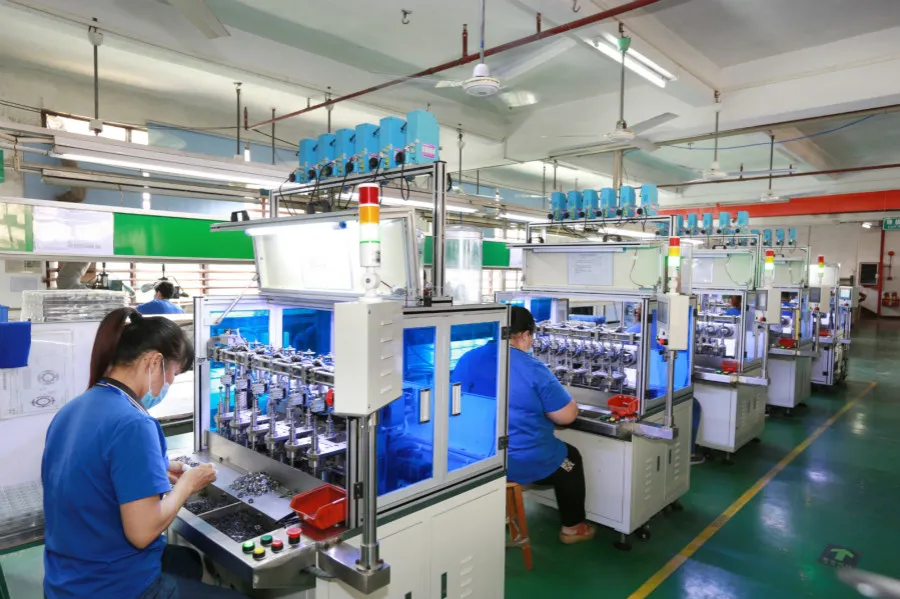

Company & Factory
 |
 |
 |
 |
 |
 |
 |
 |
 |
