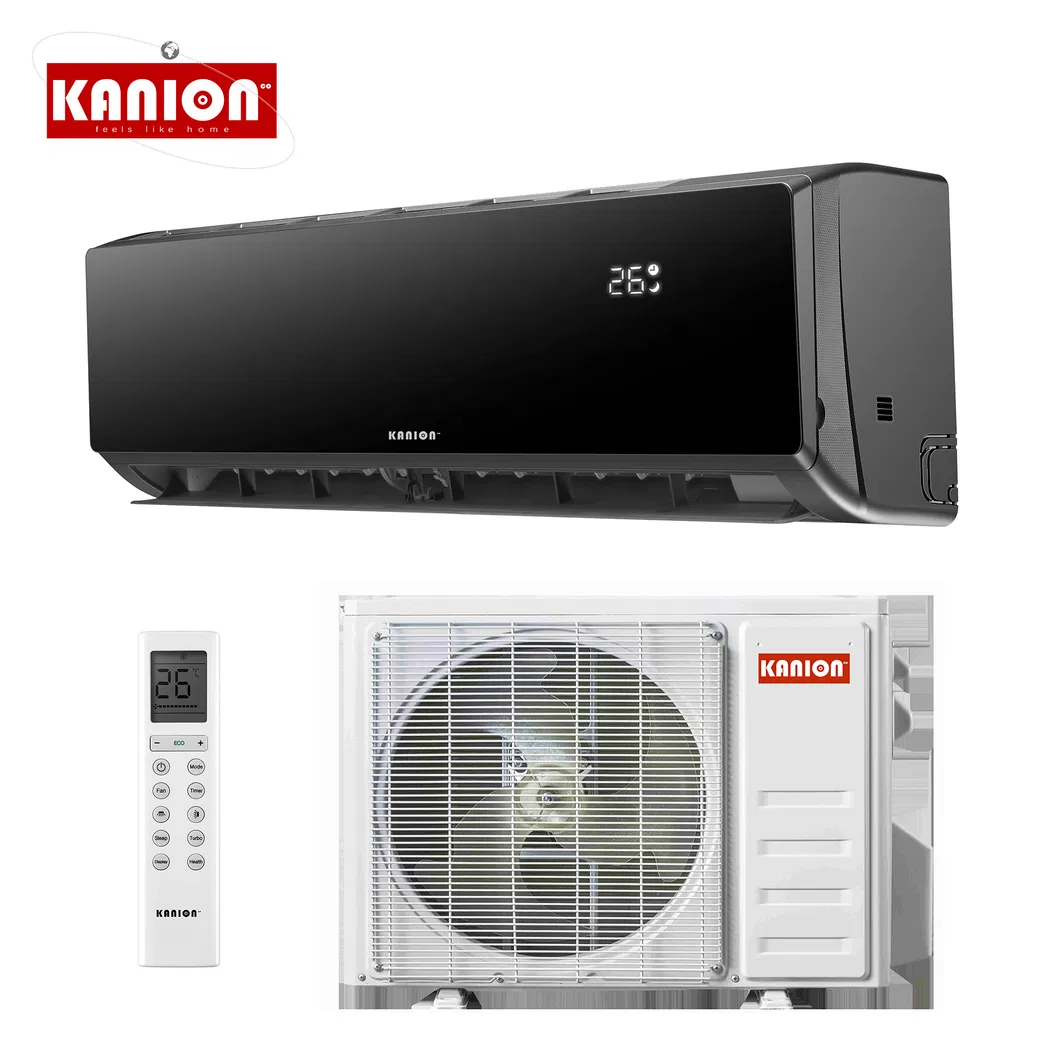

1 Ton T3 Cooling&Heating R410A Non-Inverter Wall Split Type Air Conditioners
$
0.00
/set
Product Details
- Model NO.: KWSMT3-12R410aHF
- Usage: Room
- Indoor Machine Noise: >50dB
- Certification: CE, CCC, RoHS, CECC, GS, MEPS, UR, BEB
- China Energy Efficiency Standard: Level 2
Find Similar Products
Basic info
Model NO.
KWSMT3-12R410aHF
Usage
Room
Indoor Machine Noise
>50dB
Certification
CE, CCC, RoHS, CECC, GS, MEPS, UR, BEB
China Energy Efficiency Standard
Level 2
Cooling/Heating
Cooling Only
Power Source
Electrical
Power Type
DC
Condition
New
Compressor
Gmcc
Warranty
5 Years for The Compressors
Transport Package
Carton
Specification
0.25cbm
Trademark
Kanion/OEM
Origin
China
HS Code
8509809000
Production Capacity
2000000 Per Year
Product Description
KANION PROFILE
Kanion Group (Group of companies including Kanion Group Co.,Limited & Shenzhen Kanion Appliance Co.,Limited) is a specialized, high-tech enterprise in the field of home appliances, founded in China. Our main goal is to supply high quality products, by using cutting-edge technology in the production line, while retaining cost efficiency and complying with International Environmental Protection Regulations.
We incorporate latest technological advances such as Environmental Friendly Refrigerant Type, Energy Saving and Solar Technologies, in order to provide a complete pool of necessary products to cover the needs of the global community.
Kanion Group's field of expertise is Air Conditioning products. We produce and supply air conditioners covering almost all range of Residential type, light commercial type and Heavy Commercial type.
SPECIFICATION
Finally,welcome to visit our Website:kanionco.en.made-in-china.com and write to us.
Kanion Group (Group of companies including Kanion Group Co.,Limited & Shenzhen Kanion Appliance Co.,Limited) is a specialized, high-tech enterprise in the field of home appliances, founded in China. Our main goal is to supply high quality products, by using cutting-edge technology in the production line, while retaining cost efficiency and complying with International Environmental Protection Regulations.
We incorporate latest technological advances such as Environmental Friendly Refrigerant Type, Energy Saving and Solar Technologies, in order to provide a complete pool of necessary products to cover the needs of the global community.
Kanion Group's field of expertise is Air Conditioning products. We produce and supply air conditioners covering almost all range of Residential type, light commercial type and Heavy Commercial type.
More specifically, Kanion Group supplies and exports the following products to more than 100 countries, under the brand name KANIONco:
I. Residential type: Wall Split Mounted Type, Window Type, Floor Standing Type, Portable Type and Dehumidifiers
II. Light Commercial type: Duct Type, Ceiling Cassette Type, Floor Ceiling Type, PTAC
III. Heavy commercial type: Water Chillers, Air Chillers, VRF systems, MINI-VRF Systems, Rooftop Packages
IV. Full functional Hybrid Solar Air Conditioners

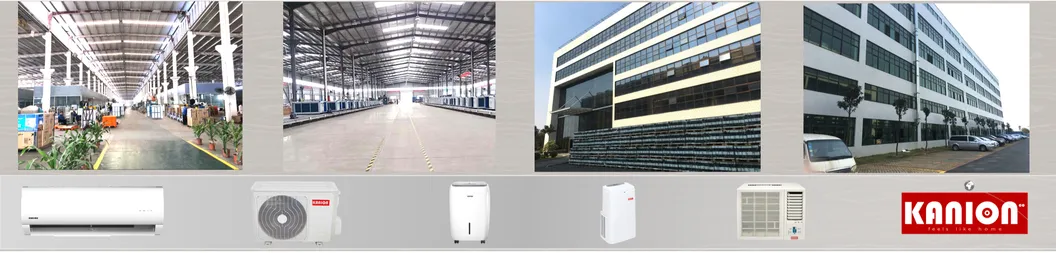

Our production Bases are introduced as below:
I. Shenzhen Production Base: Occupies an area of 800,000 square meters, incorporates 10 production lines with over 40,000 employees. Commercial Air Conditioners produced by this Production Base are exported to more than 100 countries. SASO, UL, ETL, CE, CB and ISO qualified.
II. Foshan Production Base: Occupies an area of 680,000 square meters, incorporates 10 production lines with over 3,800 employees. Residential Air Conditioners such as Wall split mounted type, Window type, Portable type, Floor Standing type and Dehumidifiers, produced by this Production Base are exported to more than 100 countries. SASO, UL, ETL, CE, CB and ISO qualified
III. Dongguan Production Base: Occupies an area of 600,000 square meters, incorporates 8 production lines with over 2,000 employees, specialized in Portable Air Conditioners' production mainly. The Products are exported to more than 100 countries. SASO, UL, ETL, CE, CB and ISO qualified.
IV. Ganzhou Production Base: Occupies an area of 1,000,000 square meters, incorporates 15 production lines with over 6,000 employees, specialized in Heavy Commercial Type Air Conditioners' production mainly. The products are exported to more than 100 countries. SASO, UL, ETL, CE, CB and ISO qualified.
Kanion Group is experienced in resources integration. By embodying the latest advances of technology in our procedures, we manage to keep low production cost while retaining our high quality standards. We are committed to providing our buyers a strong competitive advantage over their competitors in local markets.
High quality and cost efficiency is not only our main target but also the key to expand our products and brand in the shortest time given. We, the Kanion Group, sincerely invite you to try our products and services.

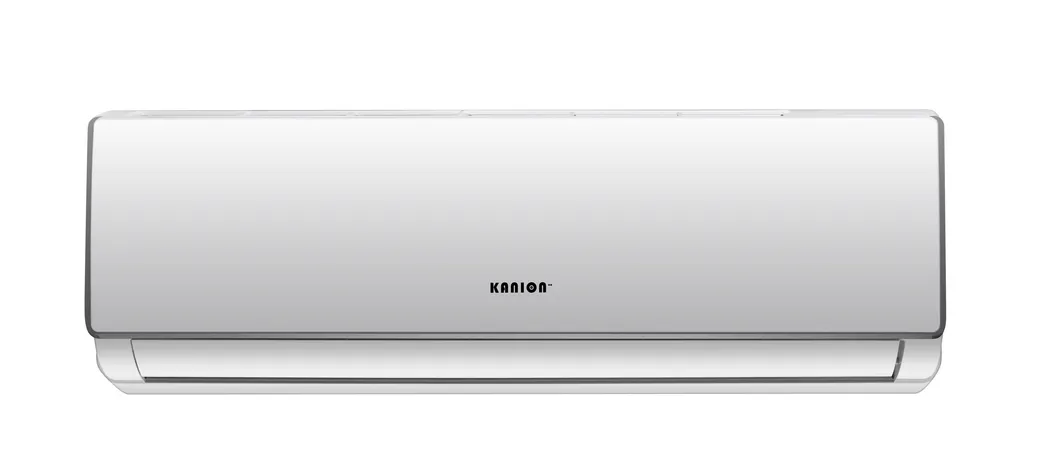

Design panel of indoor units:
Mirror panel is also avaliable
I. Residential type: Wall Split Mounted Type, Window Type, Floor Standing Type, Portable Type and Dehumidifiers
II. Light Commercial type: Duct Type, Ceiling Cassette Type, Floor Ceiling Type, PTAC
III. Heavy commercial type: Water Chillers, Air Chillers, VRF systems, MINI-VRF Systems, Rooftop Packages
IV. Full functional Hybrid Solar Air Conditioners
Our production Bases are introduced as below:
I. Shenzhen Production Base: Occupies an area of 800,000 square meters, incorporates 10 production lines with over 40,000 employees. Commercial Air Conditioners produced by this Production Base are exported to more than 100 countries. SASO, UL, ETL, CE, CB and ISO qualified.
II. Foshan Production Base: Occupies an area of 680,000 square meters, incorporates 10 production lines with over 3,800 employees. Residential Air Conditioners such as Wall split mounted type, Window type, Portable type, Floor Standing type and Dehumidifiers, produced by this Production Base are exported to more than 100 countries. SASO, UL, ETL, CE, CB and ISO qualified
III. Dongguan Production Base: Occupies an area of 600,000 square meters, incorporates 8 production lines with over 2,000 employees, specialized in Portable Air Conditioners' production mainly. The Products are exported to more than 100 countries. SASO, UL, ETL, CE, CB and ISO qualified.
IV. Ganzhou Production Base: Occupies an area of 1,000,000 square meters, incorporates 15 production lines with over 6,000 employees, specialized in Heavy Commercial Type Air Conditioners' production mainly. The products are exported to more than 100 countries. SASO, UL, ETL, CE, CB and ISO qualified.
Kanion Group is experienced in resources integration. By embodying the latest advances of technology in our procedures, we manage to keep low production cost while retaining our high quality standards. We are committed to providing our buyers a strong competitive advantage over their competitors in local markets.
High quality and cost efficiency is not only our main target but also the key to expand our products and brand in the shortest time given. We, the Kanion Group, sincerely invite you to try our products and services.
Design panel of indoor units:
Mirror panel is also avaliable
SPECIFICATION
| Model Number | KWSMT3-12R410aHF | KWSMT3-18R410aHF | KWSMT3-24R410aHF | KWSMT3-30R410aHF | ||
| Capacity(BTU) | 12000BTU | 18000BTU | 24000BTU | 30000BTU | ||
| Function | Cooling & Heating | |||||
| Rated cooling capacity(T1) | Btu/h | 12000 | 18000 | 24000 | 30000 | |
| Rated cooling capacity(T1) | W | 3517 | 5275 | 7034 | 8790 | |
| Rated cooling capacity(T3) | Btu/h | 10200 | 15300 | 20400 | 26100 | |
| Rated cooling capacity(T3) | W | 2989 | 4484 | 5979 | 7650 | |
| Rated heating capacity | Btu/h | 12500 | 18500 | 24500 | 31500 | |
| EER for cooling(T1) | Btu/h-W; | 11.5 | 11 | |||
| EER for cooling(T1) | W/W | 3.37045721 | 3.22 | |||
| EER for cooling(T3) | Btu/h-W; | 8.2 | 8.2 | |||
| EER for cooling(T3) | W/W | 2.403282532 | 2.4 | |||
| COP for heating | Btu/h-W; | 11.8 | 12.32 | |||
| Moisture removal | Liters/h | 1.2 | 1.8 | 2.2 | 2.4 | |
| Pressure | High(DP) | MPa | 4.5 | |||
| Low(SP) | 1.9 | |||||
| Indoor noise level at cooling | Super | dB(A) | 46 | 51 | 52 | 54 |
| High | 44 | 47 | 48 | 50 | ||
| Med. | 42 | 44 | 47 | |||
| Low | 38 | 41 | 42 | 45 | ||
| Quite | 36 | 38 | 38 | 40 | ||
| Outdoor noise level | 54 | 57 | 58 | 59 | ||
| Climate type | T3 | |||||
| Power supply | 220V-240V~1 Phase/ 50Hz | |||||
| Voltage Range | V | 198~264 | ||||
| Current | Cooling(T1) | A | 4.74 | 7.11 | 9.49 | 13.80 |
| Cooling(T3) | 5.65 | 8.48 | 11.31 | 14.50 | ||
| Heating | 4.82 | 7.10 | 9.44 | 12.50 | ||
| Power input | Cooling(T1) | W | 1043 | 1565 | 2087 | 2730 |
| Cooling(T3) | 1244 | 1866 | 2488 | 3190 | ||
| Heating | 1059 | 1568 | 2076 | 2555 | ||
| Rated Current | Cooling(T1) | A | 6.17 | 9.25 | 12.33 | 17.90 |
| Cooling(T3) | 7.35 | 11.03 | 14.70 | 18.90 | ||
| Heating | 6.26 | 9.30 | 12.27 | 16.30 | ||
| Rated Power input | Cooling(T1) | W | 1356.52 | 2034.78 | 2713.04 | 3550.00 |
| Cooling(T3) | 1617.07 | 2425.61 | 3234.15 | 4150.00 | ||
| Heating | 1377.12 | 2038.00 | 2699.15 | 3320.00 | ||
| Annual energy consumption | kwh/year | 2513.85409 | 3758.191304 | 5002.284451 | 6447 | |
| Refrigerant | kg | R410a/0.85 | R410a/1.33 | R410a/1.52 | R410a/1.60 | |
| Compressor | Model | 44A253G | ASH184 | ASH232M | PA291X3 | |
| Type | Rotary | |||||
| Brand | RECHI | HIGHLY | GMCC | |||
| Indoor air volume(Cooling/Heating) | m3/h | 600/650 | 1050/1100 | 1500/1550 | 1300/1300 | |
| Indoor fan type | Cross flow | |||||
| Indoor fan speed H/M/L | Cooling | rpm | 1320/1200/1100/900/730 | 1280/1200/1050/900/780 | 1270/1190/1110//1030/950 | 1270/1270/1100/900 |
| Heating | 1320/1200/1100/980/850 | 1250/1250/1200/1100 | ||||
| Dry | 900 | 1030 | 1100 | |||
| Sleep | 900/980 | 900 | 1100/1200 | |||
| Indoor coil | a.Number of rows | 2 | ||||
| Outdoor fan type | Propeller | |||||
| 3 air wing | ||||||
| Outdoor fan speed | rpm | 860 | 890 | 890 | 750 | |
| Outdoor coil | a.Number of rows | 2 | 1 | 2 | 2 | |
| Connecting Pipe | Gas | Inches | Φ9.52(3/8'') | Φ12(1/2'') | φ15.88(5/8") | |
| Liquid | Inches | Φ6(1/4'') | Φ9.52(3/8'') | |||
| Connecting Wiring | Size x Core number | 3×1.5;2×0.75 | 3×1.5 | 2×0.75,4×0.75 | 4×0.75;2×0.75 | |
| DraiN.Age Pipe | O.D 16mm | |||||
| Suitable area | m2 | 15~23 | 20~35 | 30~50 | 34~54 | |
| Net dimensions (W x Dx H) |
Indoor | mm | 811*292*203 | 1010×315×220 | 1186×340×258 | 1186×340×258 |
| Outdoor | 754*300*352 | 920×380×699 | 920×380×699 | 968×375×655 | ||
| Net weight | Indoor | kg | 8.5 | 13 | 17 | 17 |
| Outdoor | 27 | 43 | 48 | 53 | ||
| Packing dimensions (W x D x H) | Indoor | mm | 885×366×278 | 1096×390×297 | 1262×420×337 | 1262×420×337 |
| Outdoor (with piping) | 798×356×575 | 960×430×732 | 960×430×732 | 1015×425×715 | ||
| Gross weight | Indoor | kg | 10.5 | 16 | 21 | 21 |
| Outdoor (with piping) | 32 | 48 | 53 | 62 | ||
| Loading Qty | 40'HQ (with piping) | sets | 256 | 155 | 136 | 122 |
